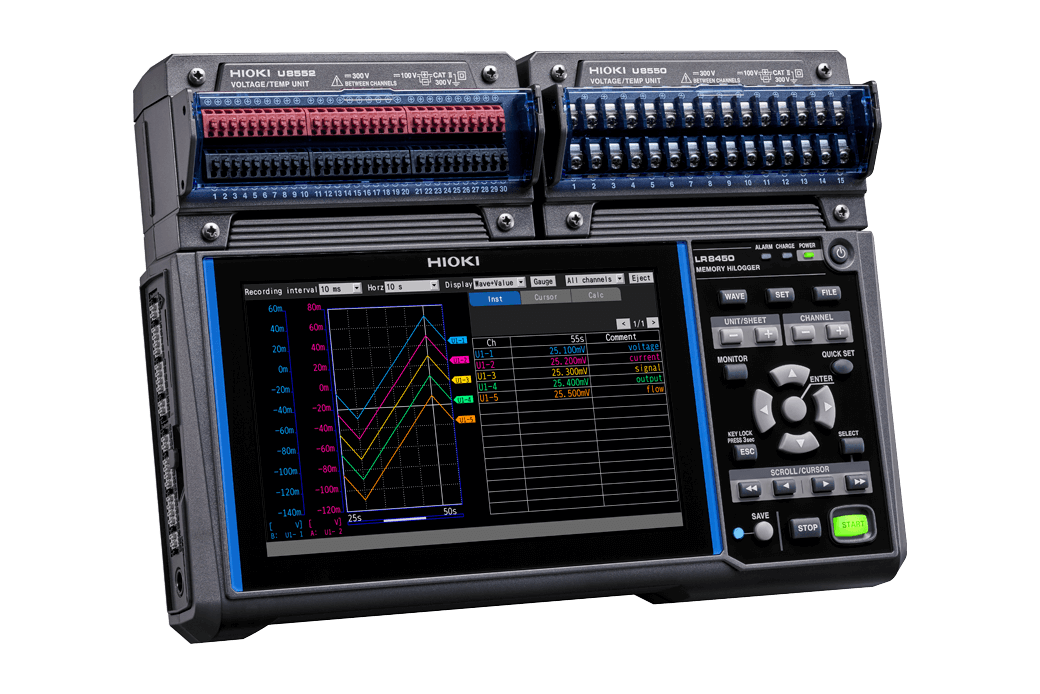

- HIOKI Memory HiLogger LR8450-01 (Wireless LAN model)
1ms Sampling Portable Logger Expandable to 330 Channels with Your Choice of Plug-in or Wireless Input Modules
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance.
The LR8450-01 offers a sampling speed of up to 1 ms and up to 330 channels, depending on the types of plug-in or wireless modules that are selected. Collect data from wireless modules installed in remote or confined locations via a LAN connection. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Memory HiLogger
Model:
LR8450-01 (Wireless LAN model)
Maker:
HIOKI E.E. Corporation
Features
- Wireless LAN model expandable to 330 ch with wireless and plug-in modules
- Record voltage output from pressure and other sensors with 1 ms sampling speed
- Directly connect strain gauge and measure signals in as fast as 1 ms intervals
- Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
- Avoid wiring issues by minimizing cable length using wireless modules
- Monitor data captured remotely on PC with wireless LAN technology
Actual Measurement with CAN unit (Video 1) and Wireless unit registration and connection (Video 2)
Specifications
Accuracy guaranteed for 1 year
| Max. number of connectable modules | 4 plug-in modules + 7 wireless modules |
|---|---|
| Connectable modules (Plug-in modules) |
U8550, U8551, U8552, U8553, U8554, U8555, U8556, U8557 |
| Connectable modules (Wireless modules) |
LR8530, LR8531, LR8532, LR8533, LR8534, LR8535, LR8536, LR8537 |
| No. of measurement channels |
Up to 120 ch with plug-in modules, up to 330 ch with plug-in modules and wireless modules (U8555 and LR8535 can input up to 500 channels per module) |
| Pulse/logic input |
[Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels) [Adaptive input format] Non-voltage contact, open collector, or voltage input [Count] 0 to 1000 M pulse, 1 pulse resolution [Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000) [Logic input] Records 1 or 0 for each recording interval |
| Recording intervals | 1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each module) |
| Data storage |
SD Memory Card / USB Drive (user-selectable) (Only storage media sold by Hioki are guaranteed for operation) |
| LAN interface |
100BASE-TX / 1000BASE-T, DHCP, DNS support Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, Email transmission, NTP client |
| Wireless LAN interface |
IEEE 802.11b/g/n Communications range: 30 m, line of sight Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Usable channels: 1 to 11 Supported modes: Wireless module connectivity, access point, station Functions: Configuring settings and controlling recording using communications commands, FTP server / client, HTTP server, Email transmission, NTP client |
| USB interface |
Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub) Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer |
| SD card slot | SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: Z4001, Z4003 |
| Display | 7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel) |
| Functions | Save waveform data in real time to the SD memory card or USB drive, numerical value calculations, waveform calculations, 8 ch alarm output, voltage output ×2 (5 V / 12 V / 24 V selectable) |
| Power supply |
[AC adapter] Using the Z1014 (100 to 240 V AC, 50/60 Hz), 95 VA Max. (including AC adapter), 28 VA Max. (exclusive of AC adapter) [Battery Pack] Using the Z1007 (accommodates 2 batteries), continuous use 4 hr (reference value for 2 pieces), 20 VA Max. [External power] 10 to 30 V DC, 28 VA Max. |
| Dimensions and mass |
Without any modules: 272 mm (10.71 in.) W × 145 mm (5.71 in.) H × 43 mm (1.69 in.) D (excluding protrusions), 1108 g (39.1 oz.) (excluding battery pack) With 2 modules: 272 mm (10.71 in.) W × 198 mm (7.80 in.) H × 63 mm (2.48 in.) D (excluding protrusions) With 4 modules: 272 mm (10.71 in.) W × 252 mm (9.92 in.) H × 63 mm (2.48 in.) D (excluding protrusions) |
| Included accessories | Quick Start Manual ×1, USB Cable L1003 ×1, AC Adapter Z1014 ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 |
Countries and regions where wireless operation is currently supported (LR8450-01, Z3231)
Last update: January 2026
| Countries and regions where wireless operation is currently supported |
Australia, Canada, Chile, China, Colombia, Egypt, Hong Kong, India, Indonesia, Japan, Kenya, Korea, Kuwait, Macao, Malaysia, Myanmar, New Caledonia, New Zealand, Philippines, Saudi Arabia, Singapore, Taiwan, Thailand, United Arab Emirates, United Kingdom, United States, Viet Nam This product uses wireless communication technology and is approved for the specific countries. However, please note that shipment may be limited according to the approval conditions of each country. Please consult our sales office for details. |
|---|---|
| Note | Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law. |
