- GRAPHGEC IWATSU Digital Oscilloscope DS-5600A Series
Extended basic functionality, making it easier to use
Bandwidth100~500MHz
2 GS/s 4/2 Channels Max
Up to 5M points

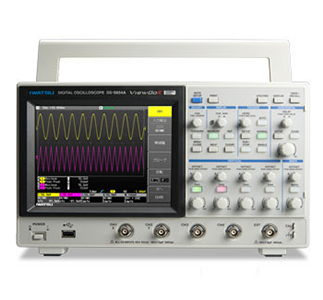

Digital Oscilloscope DS-5600A Series
Model:
DS-5654A, DS-5652A, DS-5634A, DS-5632A, DS-5624A, DS-5622A, DS-5614A, DS-5612A
Maker:
GRAPHTEC IWATSU Test Instruments Co.,Ltd.
Feature
- DS-5600A Series All models 50 Ohm input compatible
- AUX OUT output terminal is equipped as standard.
- High Resolution
- Expanded average count
- Auto setup disable toggle function
- Long memory up to 5M points (when all channels are used: 2.5M points/CH)
- 4 item simultaneous judgment of waveform parameters / waveform mask judgment function
- Automatic measurement of waveform parameters logging function (list display)
- Full cycle parameter measurement
- Enhanced trigger capability
- Waveform operation function
- Probe selection function
- CH-to-CH skew adjustment function
- Clear sweep function
- High-speed remote waveform transfer
- Touchscreen independent keys/knobs
- Peak detection function
- Rescale function
- Automatic measurement of waveform parameters (full cycle measurement of horizontal axis parameters)
- Simple Moving Average
- The PNG format of the image data storage format is compatible with transparent type
Specifications
| 500MHzModel | 350MHzModel | 200MHzModel | 100MHzModel | ||||||
|---|---|---|---|---|---|---|---|---|---|
| DS-5654A | DS-5652A | DS-5634A | DS-5632A | DS-5624A | DS-5622A | DS-5614A | DS-5612A | ||
| Rise time (Representative values) |
750ps | 1ns | 1.75ns | 3.5ns | |||||
| Number of input channels | 4 | 2 | 4 | 2 | 4 | 2 | 8 | 2 | |
| Frequency bandwidth (-3dB) | 500MHz | 350MHz | 200MHz | 100MHz | |||||
| Maximum sampling speed | 2GS/s (when channels are coupled), 1GS/s (when all channels are used) | ||||||||
| Equivalent sampling speed | 100GS/s | ||||||||
| Peak detection resolution | 1ns | ||||||||
| Averaging function | 2 to 65536 times (power of 2 steps) | ||||||||
| Averaging Count display function |
Display the number of executions on the screen. | ||||||||
| Memory length | 5M points/ch (when 2 channels are coupled), 2.5M points/ch (all channels) | ||||||||
| Vertical resolution | 8 bits (when high resolution arithmetic is enabled: up to 12 bits) | ||||||||
| Vertical resolution display function | Display the number of resolution bits | ||||||||
| Input voltage range | 2mV/div ～ 10V/div(1MΩ) 2mV/div ～ 2V/div(50Ω) |
||||||||
| Offset voltage | 2mV/div ～ 50mV/div : ±1V、50.2mV/div ～ 500mV/div : ±10V、502mV/div ～ 10V/div : ±100V | ||||||||
| DC gain accuracy | ±(1.5% +0.5% full-scale) | ||||||||
| Maximum input voltage | ±400 Vpeak (1MΩ)、5 Vrms(50Ω) | ||||||||
| Bandwidth limit filter | Analog type:100MHz, 20MHz, 2MHz, 200kHz | Analog type:20MHz, 2MHz, 200kHz | |||||||
| Digital type: Choose either LPF, HPF, or SMA, channel independent | |||||||||
| Input coupling | GND、DC 1MΩ、AC1MΩ、DC50Ω | ||||||||
| Input impedance | 1MΩ±1% //16pF、 50Ω±1% | ||||||||
| Probe sense | Auto search:1:1, 10:1, 100:1, 1000:1 Manual setting:1:1, 5:1, 10:1, 20:1, 50:1, 100:1, 200:1, 500:1, 1000:1, 2000:1 |
||||||||
| Time axis range | 500ps/div ～ 50s/div | 1ns/div ～ 50s/div | 2ns/div ～ 50s/div | 5ns/div ～ 50s/div | |||||
| Standard probe | SS-101R (with standard number of channels) | SS-0130R (with standard number of channels) | |||||||
| Roll mode | 50ms/div ～ 50s/div(100kS/s max) | ||||||||
| Clock accuracy | ±10 ppm | ||||||||
| Power supply/power consumption | AC100V ～ 240V(50Hz / 60Hz)、 AC100V ～ 120V(400Hz) / 95VA max(60W max) | ||||||||
| Dimensions/Body weight | Approx. 330Wx190Hx124D mm/Approx. 3.7kg | ||||||||
| Performance warranty temperature | 10 ～ 35℃ | ||||||||
| Operating temperature/ humidity/altitude |
Temperature 0 to 40°C/Humidity 5 to 80% RH ≤ 30°C (no condensation), 55% RH or less 40°C (no condensation)/Altitude 2000m or less |
||||||||
| Standard Accessories | Probes (one for each channel), power cord (1), front panel cover (1), manual (CD-ROM) (1), user’s guide (1) | ||||||||
DS-5600A Series Trigger function
| Contents | ||
|---|---|---|
| Trigger function | Edge, Edge Alternate, Edge OR, Number of Pulses, Pulse Width, Period, Missing, TV, Pattern (OR, NOR, AND, NAND), Serial (UART, SPI, I2C) |
|
| TV trigger | standard | NTSC、PAL、Custom |
| Line setting range selection | up to 3000 | |
| Field selection | 1、2、4、8 | |
| Pulse number trigger setting range | 1 to 9999 events | |
| Pulse width trigger time setting range | 15ns～50s | |
| Cycle trigger time setting range | 40ns～50s | |
| Missing (dropout) Trigger time setting range |
50ns～50s | |
| Pattern trigger | OR、NOR、AND、NAND | |
| Trigger source | All channels | |
| State | HIGH、 LOW、 Don’t Care | |
| Threshold level | Independent setting for all channels | |
| Serial trigger UART | Trigger selection | START, STOP,Parity error, data pattern |
| Comparison data length | 5 to 8 bits | |
| Bit rate | 1000bps~１Mbps(Set in 100bps units) | |
| Signal source | CH1~CH4, EXT(2-channel device is CH1, CH2, EXT) | |
| Serial trigger UART | Trigger selection | Data pattern |
| Comparison data length | 4 to 64 bits | |
| CS selection | Positive logic/Negative logic,Idle time specification when there is no CS | |
| Signal source | CH1~CH4, EXT(2-channel device is CH1, CH2, EXT) | |
| * CH1 input is for SCK signal input only: up to 20MHz | ||
| Serial trigger I2C | Trigger selection | START, STOP, RESTART, NACK,Data pattern |
| Comparison data length | 7-bit/10-bit address, 1 to 5 bytes,EEPROM read, byte (shift comparison available) | |
| Address mode | Choose from 7-bit/10-bit/EEPROM read | |
| Signal source | CH1~CH4, EXT(2-channel device is CH1, CH2, EXT) | |
| Trigger source | All channels, EXT (±0.5V), EXT10 (±5.0V), line | |
| Trigger slope | Positive, negative | |
| Coupling | AC, DC, high frequency removal, low frequency removal, noise removal | |
Display/Resolution
| Contents | |
|---|---|
| Display | 7.5-inch color TFT LCD (touch screen) |
| Resolution | VGA:640 × 480 pixels |
| Display format | YT, XY, XY Trigger |
| Vector connection | Sample point interpolation display, dot display |
| Analog persistence | Solid tone display, spectrum display |
| Persistence Display time | 100ms, 200ms, 500ms, 1s, 2s, 5s, 10s,Infinite |
| Save internal waveform(REF memory) | 5 waveforms |
| Front panel settings save | Five settings can be saved in the internal memory or USB memory device |
| AUTO SETUP function | Can be set to Enabled or Disabled |
Parameter measurement, cursor, zoom, math, replay
| Contents | |
|---|---|
| Parameter measurement | Maximum value, minimum value, peak value, RMS value, cycle RMS value, average value, cycle average value, top, base, top-base, rising overshoot, falling overshoot, rising time 20-80%, falling time 80-20%, rising time 10-90%, falling time 90-10%, frequency, cycle, number of pulses (positive), number of pulses (negative), pulse width (positive), pulse width (negative), duty ratio, integral, skew (positive/negative), skew @ level |
| Number of simultaneous measurements | Maximum 4 parameters |
| Statistical values display | maximum value, minimum value, number of measurements |
| Logging items | Time, parameter measurement results (conditions A, B, C, and D), Pass/Fail judgment results |
| Output destination | When recording: Pop-up screen, internal memory (up to 86,400) after recording: USB memory device |
| Pass/Fail | Judgment mode: parameter judgment or mask determination, judgment result: USB save, BEEP sound, pulse output, logging Page search function: select Pass or Fail, search forward or backward |
| Cursor | Time, Amplitude, Time & Amplitude, Value at Cursor |
| Zoom | Press the Zoom button on the front panel to display the magnified waveform in a different grid |
| Math function | Addition, subtraction, multiplication, differentiation, integration, FFT (up to 8k points, rectangular, Hanning, flat top window function) Double operation by either differential, integral, or FFT from the result of either addition, subtraction, or multiplication (9 patterns) |
| Rescale | a * x + b (x: input voltage, a, b: user-defined) |
| unit conversion | volt, ampere, watt, °C, no display |
| Replay | Automatic waveform recording, up to 2048 waveforms can be saved and replayed |
| Frequency counter | 6-digit |
| Interface | USB 2.0HS compatible (device, host), LAN (100Base-TX),GPIB (factory option DS-576), AUX interface (connector for external option) |
| AUX OUT | Trigger output and pass/fail judgment output can be switched |
| Waveform data save | Save to USB memory device with binary, ASCII, Mathcad, arithmetic (ASCII), and arithmetic (Mathcad) |
| Hard copy output | Save the image to a USB memory device in TIFF, BMP, or PNG (Transparent) format or output to a PictBridge® -compatible printer |
| Calibration signal output | Square wave 1kHz, 3Vp-p |
Option
| Contents | |
|---|---|
| AUX IO CH1/CH2 output DS-577 (Factory option) |
AUX IO1: Output CH1 input signal with offset voltage added AUX IO2: Output CH2 input signal with offset voltage added |
| AUX IO CH1 output DS-578 (Factory option) |
Aux IO1: Output CH1 input signal with offset voltage added |
| GPIB interface DS-576 (Factory option) |
GPIB: IEEE488.2 |
| Probe power supply DS-579 | IWATSU ELECTRIC active probe power supply 2 Series |
