Cartridge Heaters "HI-SD ROD"
・Customization on voltage, wattage, shape and material etc.
・Multi circuit
・Built-in thermocouple
・Intentional distributed wattage
Cartridge Heaters "HI-SD ROD"
Model:
HI-SD ROD
Maker:
SAKAGUCHI ELECTRIC HEATERS
Specification
| Nominal diameter | 5mm,6mm,8mm,10mm,12mm,14mm,16mm |
| The effectiveness diameter (Max) | Nominal diameter: -0.05mm |
| Nominal diameter: -0.15mm | |
| Tolerance on sheath length | ±2%（minimum ±2.4mm） |
| Tolerance on wattage | ±15% up to 100W, |
| ±10% up to 1000W at RT | |
| Heat resistance temperature of lead wire | 200℃ |

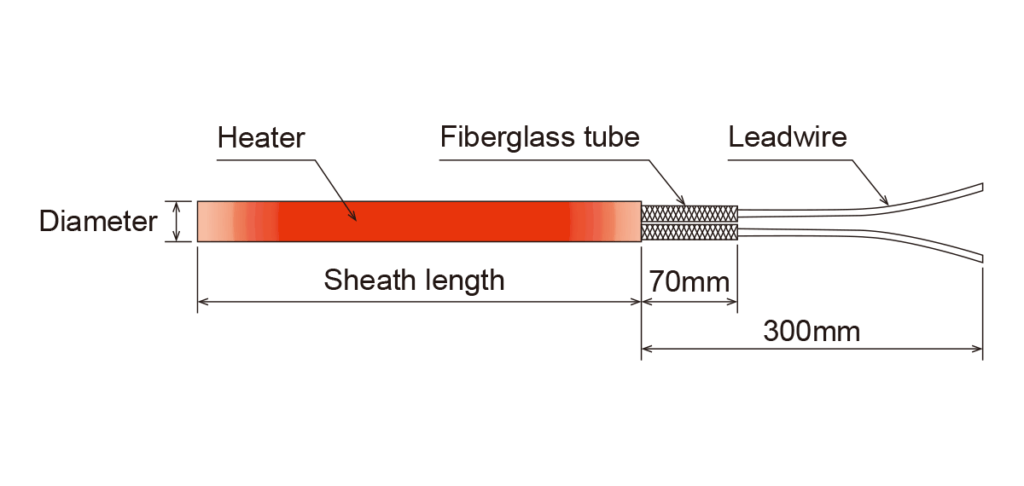

Configure of standard types
| Diameter | Sheath Length | Voltage | Wattage | Watt Densities | Product code |
| 5mm | 40mm | 240V | 40W | 8.7W/cm2 | 5,042,404 |
| 50mm | 240V | 60W | 9.8W/cm2 | 5,052,406 | |
| 70mm | 240V | 80W | 9.3W/cm2 | 5,072,408 | |
| 6mm | 30mm | 240V | 50W | 14W/cm2 | 6,032,405 |
| 45mm | 240V | 60W | 9.4W/cm2 | 6,042,406 | |
| 45mm | 240V | 120W | 19W/cm2 | 6,042,412 | |
| 60mm | 240V | 75W | 8.8W/cm2 | 6,062,407 | |
| 90mm | 240V | 240W | 17W/cm2 | 6,092,424 | |
| 100mm | 240V | 200W | 13W/cm2 | 6,102,420 | |
| 100mm | 240V | 240W | 15W/cm2 | 6,102,424 | |
| 120mm | 240V | 200W | 10W/cm2 | 6,122,420 | |
| 120mm | 240V | 300W | 15W/cm2 | 6,122,430 | |
| 75mm | 240V | 100W | 8.8W/cm2 | 6,072,410 | |
| 8mm | 50mm | 240V | 50W | 5.1W/cm2 | 8,052,405 |
| 60mm | 240V | 100W | 8.8W/cm2 | 8,062,410 | |
| 60mm | 240V | 200W | 18W/cm2 | 8,062,420 | |
| 75mm | 240V | 150W | 10W/cm2 | 8,072,415 | |
| 100mm | 240V | 200W | 9.3W/cm2 | 8,102,420 | |
| 100mm | 240V | 300W | 14W/cm2 | 8,102,430 | |
| 120mm | 240V | 300W | 12W/cm2 | 8,122,430 | |
| 150mm | 240V | 350W | 10W/cm2 | 8,152,435 | |
| 10mm | 40mm | 240V | 120W | 13W/cm2 | 10,042,412 |
| 60mm | 240V | 120W | 8.5W/cm2 | 10,062,412 | |
| 80mm | 240V | 180W | 8.8W/cm2 | 10,082,418 | |
| 80mm | 240V | 240W | 12W/cm2 | 10,082,424 | |
| 100mm | 240V | 240W | 9.0W/cm2 | 10,102,424 | |
| 100mm | 240V | 250W | 9.3W/cm2 | 10,102,425 | |
| 150mm | 240V | 300W | 7.0W/cm2 | 10,152,430 | |
| 150mm | 240V | 360W | 8.5W/cm2 | 10,152,436 | |
| 200mm | 240V | 300W | 5.2W/cm2 | 10,202,430 | |
| 200mm | 240V | 400W | 6.9W/cm2 | 10,202,440 | |
| 250mm | 240V | 500W | 6.8W/cm2 | 10,252,450 | |
| 250mm | 240V | 400W | 5.4W/cm2 | 10,252,440 | |
| 12mm | 60mm | 240V | 150W | 8.8W/cm2 | 12,062,415 |
| 80mm | 240V | 400W | 9.8W/cm2 | 12,082,424 | |
| 100mm | 240V | 200W | 6.2W/cm2 | 12,102,420 | |
| 100mm | 240V | 250W | 7.8W/cm2 | 12,102,425 | |
| 150mm | 240V | 300W | 5.9W/cm2 | 12,152,430 | |
| 150mm | 240V | 250W | 4.9W/cm2 | 12,152,425 | |
| 150mm | 240V | 360W | 7.1W/cm2 | 12,152,436 | |
| 200mm | 240V | 250W | 3.6W/cm2 | 12,202,425 | |
| 200mm | 240V | 300W | 4.3W/cm2 | 12,202,430 | |
| 200mm | 240V | 400W | 5.7W/cm2 | 12,202,440 | |
| 200mm | 240V | 500W | 7.2W/cm2 | 12,202,450 | |
| 250mm | 240V | 500W | 5.7W/cm2 | 12,252,450 | |
| 300mm | 240V | 400W | 3.7W/cm2 | 12,302,440 | |
| 14mm | 40mm | 240V | 150W | 12W/cm2 | 14,042,415 |
| 40mm | 240V | 200W | 16W/cm2 | 14,042,420 | |
| 60mm | 240V | 150W | 7.6W/cm2 | 14,062,415 | |
| 60mm | 240V | 200W | 10W/cm2 | 14,062,420 | |
| 16mm | 100mm | 240V | 300W | 7.0W/cm2 | 16,102,430 |
| 150mm | 240V | 500W | 7.4W/cm2 | 16,152,450 | |
| 200mm | 240V | 700W | 7.5W/cm2 | 16,202,470 | |
| 200mm | 240V | 1000W | 10.8W/cm2 | 16,202,400 |
