Band Heaters

Band Heaters

Band heaters are efficient heaters with excellent electrical characteristics using heat-resistant mica and good heat conduction.
Externally coated steel sheets are durable because they are subjected to the pressure molding process by stainless steel plate or heat-resistant steel plate, and they are in close contact with heated objects which are heated efficiently.

Band Heaters

Maker:

SAKAGUCHI ELECTRIC HEATERS

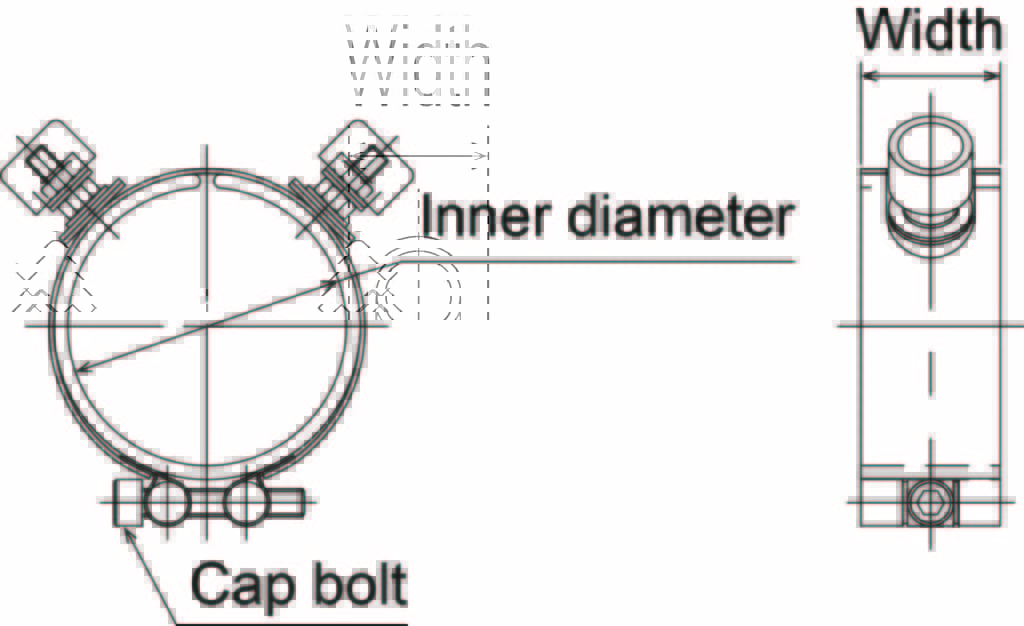

1-piece type (screw termination)

Shape Inner diameter Width Terminal screw Voltage Wattage Watt density * Product code
1-piece type 34φ 30mm M5 100V 100W 4.7W/cm2 BH3430N
40φ 40mm M4 200V 200W 5.1W/cm2 BH4040N
43φ 30mm M5 200V 120W 4.1W/cm2 BH4330N
50φ 50mm M5 200V 250W 3.7W/cm2 BH5050N
60φ 30mm M5 200V 200W 4.4W/cm2 BH6030N

Precautions for use

・This product is for industrial use only.
・Although the heater wattage can be designed variously depending on the heater size, the watt density and heater life depend on many factors. Depending on the conditions of use, please consult us when using a heater with high watt density.
・Please install the heater as closely as possible to the object to be heated. If not sufficiently adhered, the temperature of the object to be heated does not rise and instead only the heater is heated, causing the heating element to break.
