- 【IDEX】Vibration tester［Up and down single axis vibration］BF-45UA-E
No foundation work required. Max loaded 45kg For understanding vibration property at the design stage.

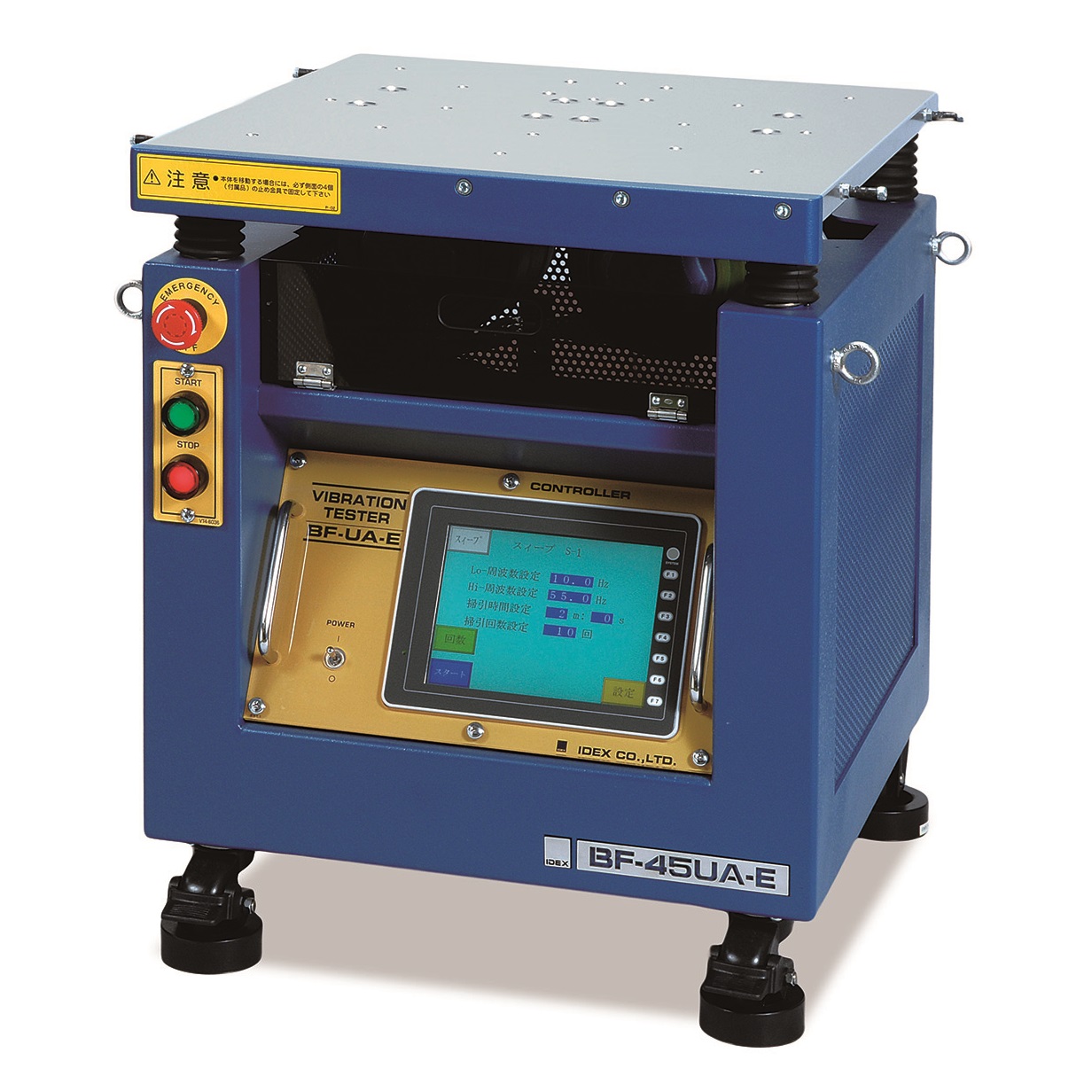

Vibration tester［Up and down single axis vibration］BF-45UA-E
Model:
BF-45UA-E
Maker:
IDEX CO.,LTD.
Feature
- Target：Vibration proof / Endurance test / Screening /
Removal of dust and dirt / Poor contact / Loosening & Tightening / - 【Specifications】
Vibration direction：1-axis vertical vibration
Displacement：1.2-3.5 [㎜P-P]
Table size：530×582 [㎜]
Frequency：10-67 [Hz]
Max Acceleration：98 [m/s^2]
Maximum loading weight：45[kg]
