- 【IDEX】Vibration tester［Compact and light desktop type］BF-25H-200
【Up and down single axis vibration】 Fixed frequency type (50Hz or 60Hz)

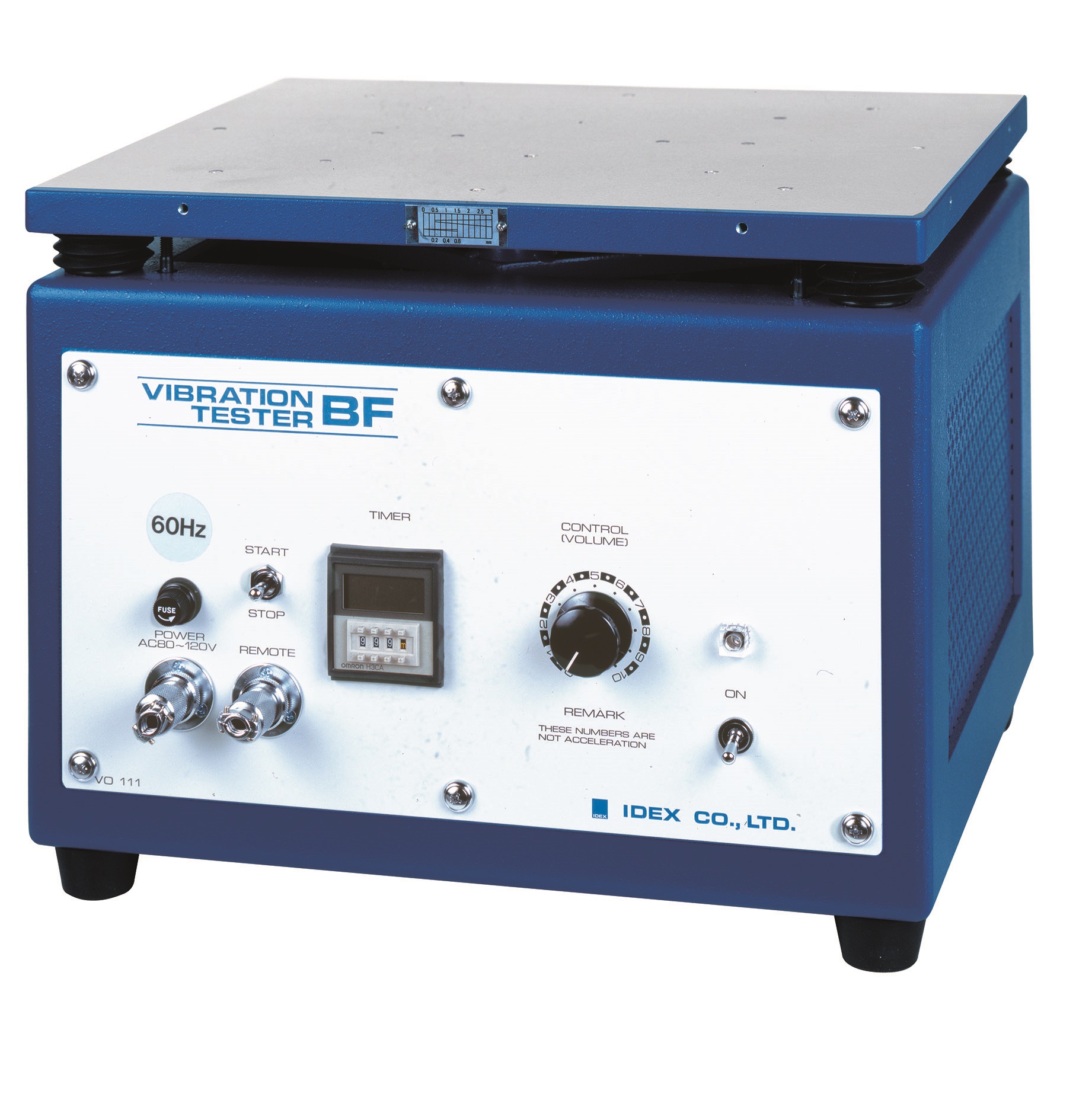

Vibration tester［Compact and light desktop type］
Model:
BF-25H-200
Maker:
IDEX CO.,LTD.
Feature
- It can be used for simple vibration test, screening test
and total inspection. - 【Specifications】
Vibration direction：1-axis vibration UP&DOWN
Displacement：0-1.5 [㎜P-P]
Table size：400×350 [㎜]
Frequency：Fixed frequency type *Depends on the power frequency
Max Acceleration：50Hz 75 [m/s^2] 60Hz 98[m/s^2]
Maximum loading weight：25[kg]
