Reflection spectrophotometric meter for laboratory to in-line inspection, measuring up to 9 transparent films simultaneously.
The compact film thickness monitor is a reflection spectrophotometric film thickness meter that uses a small reflection probe and is applied in all situations from the laboratory level to in-line 100% inspection in the production process. It has excellent maintainability and can be used for incorporation into process equipment and line management.
Simultaneous measurement of up to 9 types of transparent films is possible. It can be used as an in-line or end-point monitor for the various multi-layered film processes.
The compact probe can be installed in a small space inside the process tool. It is also possible to judge the mixture ratio of the mixed layer or the crystallinity of Polysilicon by using the EMA theory.
Compact Flim Thickness Monitor
Maker:
Shashin Kagaku
Features
1.Compact probe with the optical fiber
can be installed in a small space inside the process tool.
Since the 30 mm probe is connected with an optical fiber, it has good durability.
2. Good repeatability of the film thickness measurement 0.1nm(3σ)
3. Multilayer film thickness measurement up to 9 Layers
4. Material analysis function
・ Evaluation of mixing ratio of the composite material using EMA
・Crystallinity and Analysis of the optical constants
5. Selectable light source
Light Source | Wavelength range (mm) | Target thickness area (nm) | Typical lifetime (hour) |
White color LED | 430~700 | 50~50,000 | > 50,000 |
Tungsten-Halogen | 400~900 | 50~50,000 | 10,000 |
Deuterium-Halogen | 220~900 | 10~30,000 | 1,000 |
6. Wireless (option)
7. Film thickness endpoint detection software is included (video below)
8. Automatic mapping stage (option)
Application

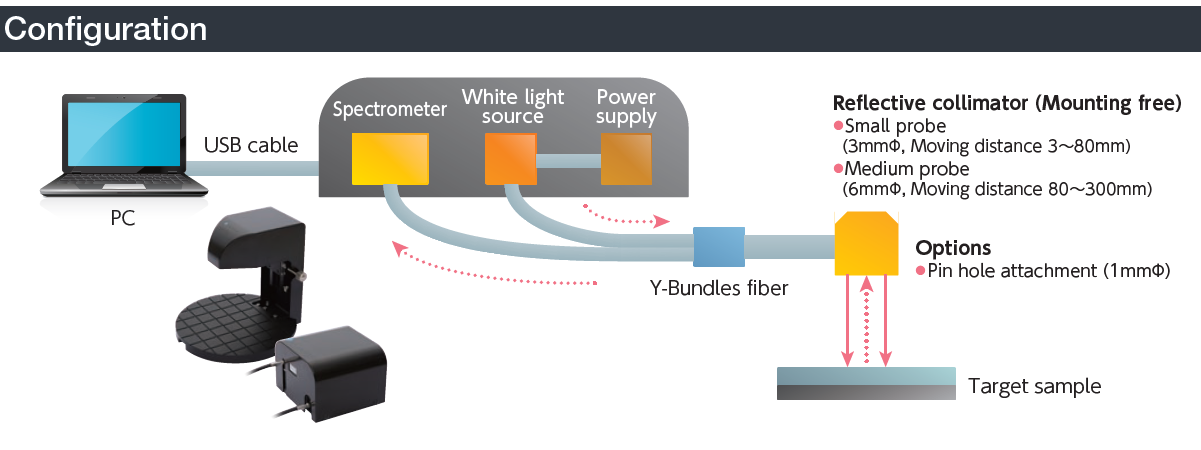

Configuration

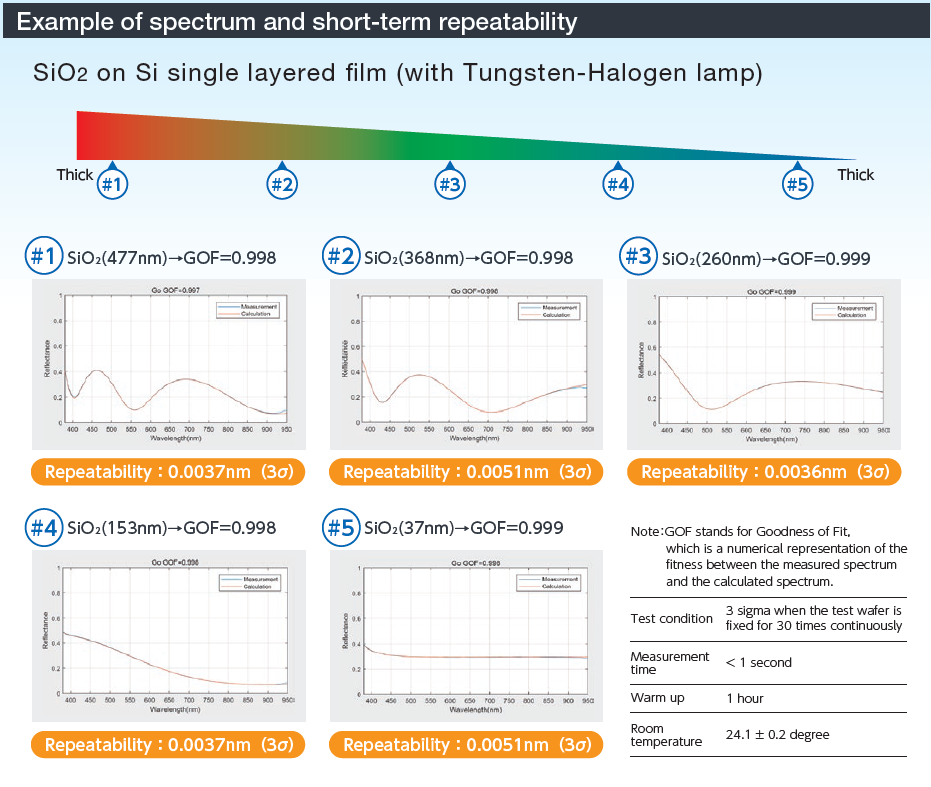

Example of Spectrum and short-term repeatability
Film thickness endpoint detection software
