NetVision Connection Boards for GMSL Evaluation Kits NV061-R / NV061-Q
[Contact Us]
Two boards to connect the Analog Devices GMSL EV kits and NetVision's SV series boards.
The first one is "NV061-R", which is for connecting the Serializer EVKIT and our .MIPI generator SVO-03-MIPI. The other is "NV061-Q", for the Deserializer EVKIT (evaluation kits) and NetVision's monitoring board SVM-06.
Application Examples

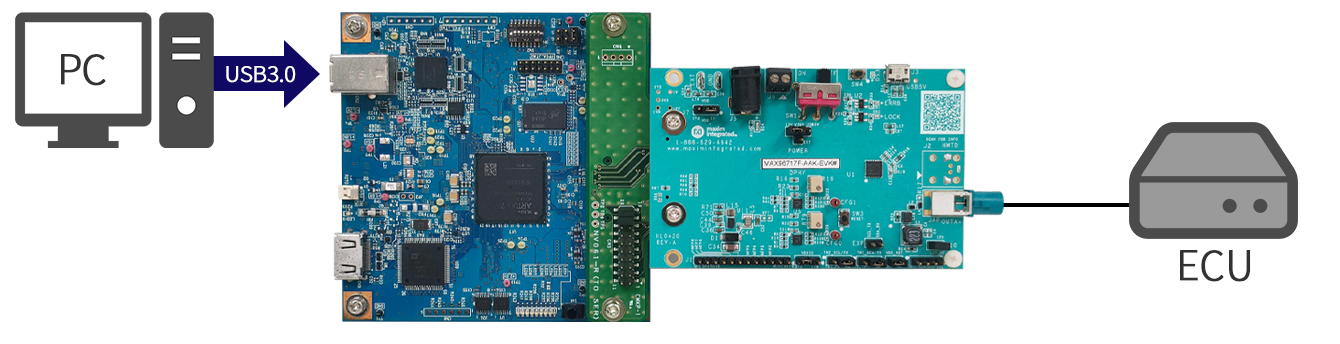

■ GMSL Serializer evaluation
SVO-03-MIPI+NV061-R+Serializer EVKIT(evaluation kits)

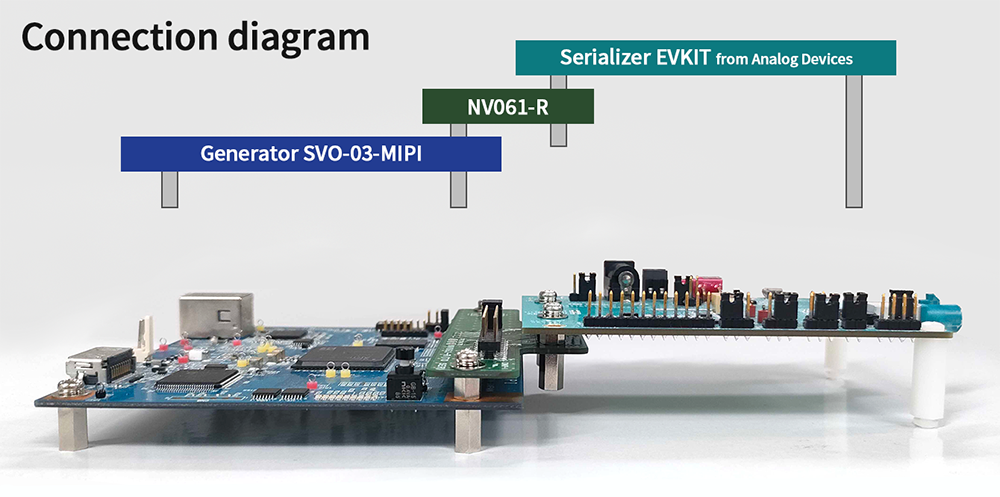

*Side view

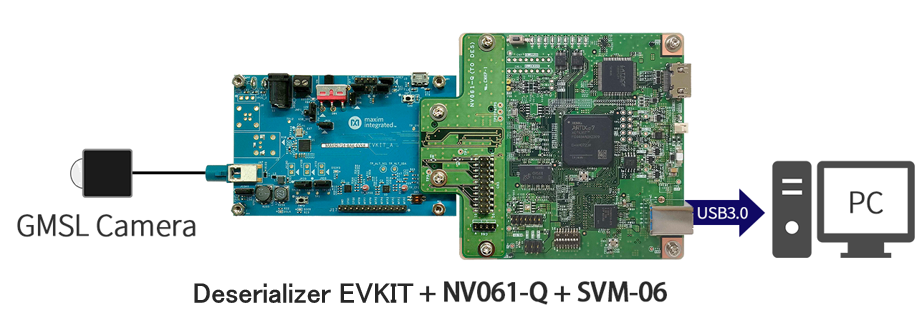

■GMSL Deserializer evaluation
Deserializer EVKIT(evaluation kits)+NV061-Q+SVM-06

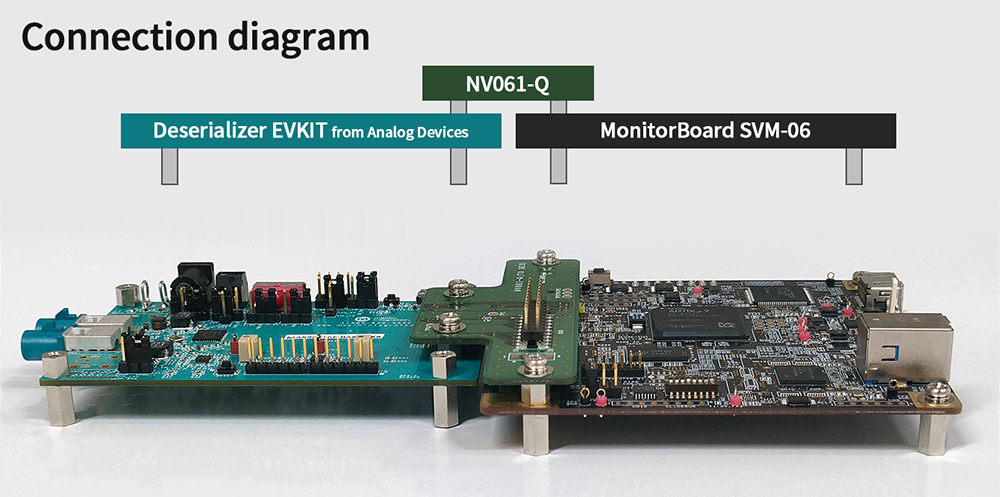

*Side view
