Bi-directional Programmable DC Power Supply (Low Voltage Version）
Request a Quote
The S7000 Series Bi-directional Programmable DC Power Supply (Low Voltage Version) is a high-precision, regenerative DC power source combining DC power supply and electronic load functions. Supporting dual-quadrant operation, it enables efficient energy recovery during battery charging and discharging.
With output up to 100 V and 600 A, scalable to 30 kW, the S7000 Series is ideal for EV, battery, PV, and power electronics testing.
Description
- Automatic switching of source-load function
- Power output range: 0 ~ 15kW
- Current output range: 0 ~ 600A
- Voltage output range: 0 ~ 100V
- Parallel connection: up to 10 units
- AC voltage input: 342VAC ~ 528VAC
- PV simulation: Static MPPT, Multi-IV, EN50530, etc.
- Automotive power curve: ISO16750-2, LV123, DIN40839,
- Battery simulation: 6 fixed types, custom type
- Battery charging and discharging test function
- List mode, support multi-step programming
- Custom waveforms: triangle, square, and sine.
- RS232/LAN/USB communication interface
- Protections: OVP, OCP, OTP, OPP, etc.
- Remote voltage compensation

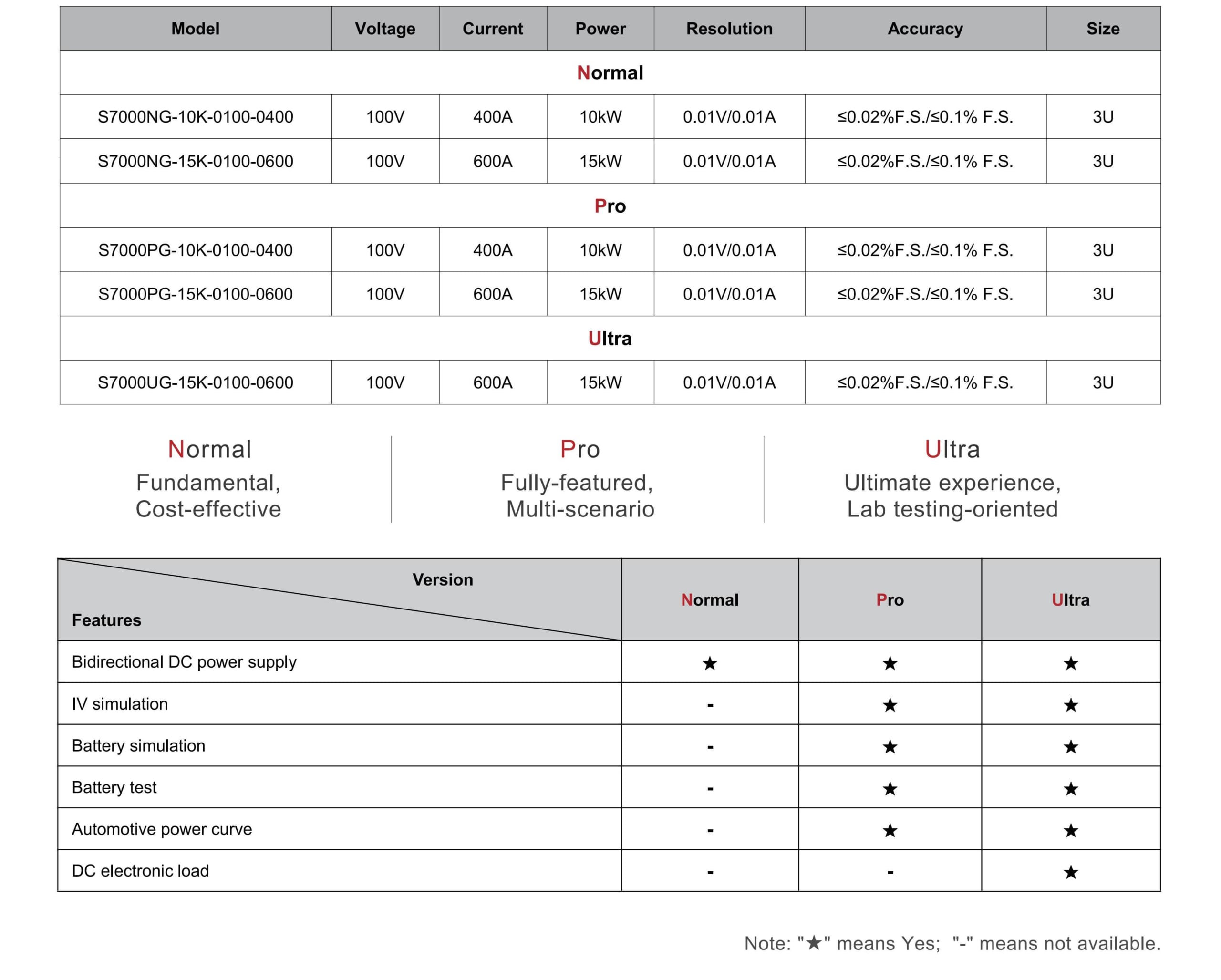

Models and Specifications
To view the pdf files, the Adobe Reader from Adobe Systems is required.
