Bi-directional Programmable DC Power Supply (High Voltage Version)
Request a Quote
The S7000 Series Bi-directional Programmable DC Power Supply (High Voltage Version) is a high-precision, regenerative DC power source combining DC power supply and electronic load functions.
Supporting dual-quadrant energy flow, it enables efficient energy recovery during battery charging and discharging.
With output up to 2000 V and 30 kW in a compact 3U form factor, the S7000 Series is ideal for EV, battery storage, PV inverter, and power semiconductor testing.
Description
- Automatic switching of source-load function
- High power density: 30kW in 3U
- Power output range: 0 ~ 30kW
- Voltage output range: 0 ~ 2000V
- Parallel connection: up to 20 units
- AC voltage input: 342VAC ~ 528VAC
- PV simulation: Static MPPT, Multi-IV, EN50530, etc.
- Battery simulation: 6 fixed types, custom type
- Battery charging and discharging test function
- RS485/CAN/LAN/USB communication interface
- Protections: OVP, OCP, OTP, OPP, etc.
- Remote voltage compensation

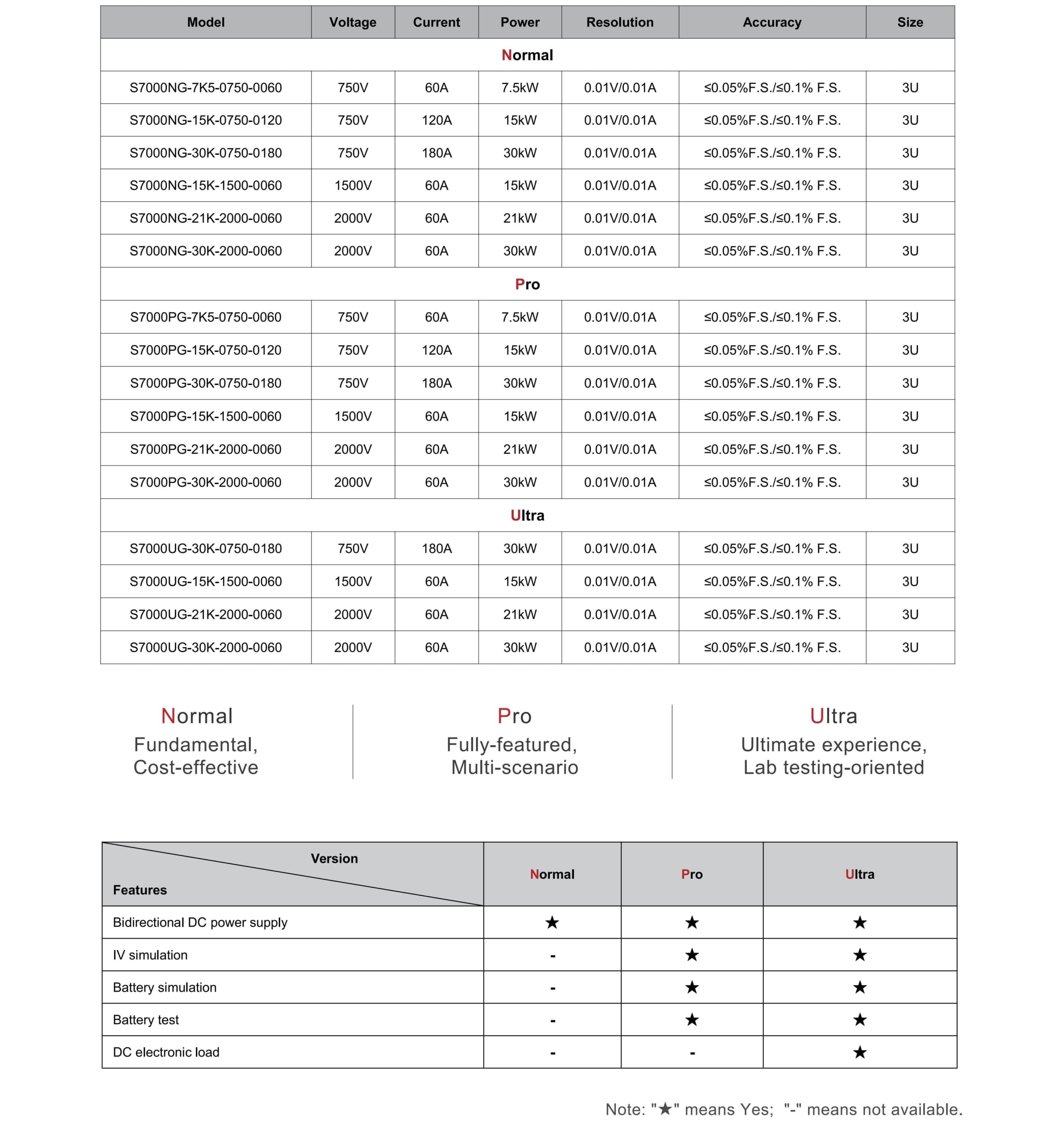

Models and Specifications
To view the pdf files, the Adobe Reader from Adobe Systems is required.
