- Kewell A2000 Series
Bi-directional Programmable AC Power Supply
Request a Quote
The A2000 Series Bi-directional Programmable AC Power Supply is a high-performance AC source and electronic load designed for large-scale power testing.
Supporting voltages up to 800 V and power levels from 30 kW to 600 kW, it features regenerative energy flow, fast dynamic response, and advanced waveform control.
Built on third-generation SiC technology, the A2000 Series delivers industry-leading efficiency, accuracy, and flexibility for grid, EV, and energy system testing.
Description
- Third-generation SiC design
- Electrically operated switch + TFT touch screen
- Voltage output range: 0~450V(L-N)
- Current output range: 0~342A
- Frequency output range: 40-70Hz
- Efficiency: up to 92.6%
- Unbalance, flicker simulation
- Comm. interface: RS485, LAN
- External emergency stop
- Multi-step programming
- Flexible parallel connection
- LVRT/HVRT/ZVRT
- Harmonics and inter-harmonics superposition

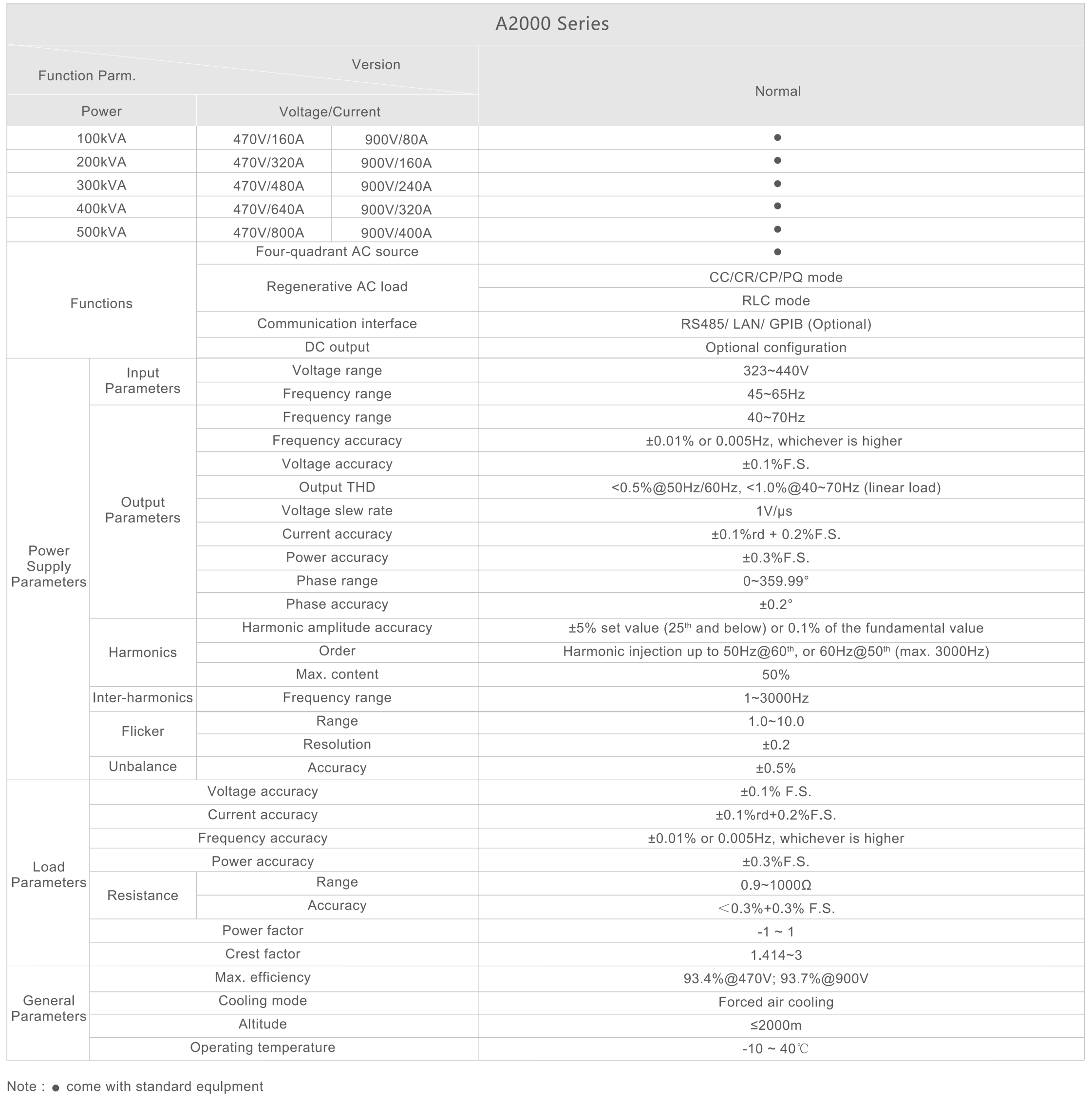

Models and Specifications
To view the pdf files, the Adobe Reader from Adobe Systems is required.
