A1100 E-Motor Emulator
Request a Quote
The A1100 Series E-motor Emulator is a high-power motor and load simulation system designed for testing motor controllers and inverters without a physical motor.
Supporting voltages from 100 to 800 V and power from 30 kW to 600 kW, it accurately emulates PMSM and asynchronous motors using advanced mathematical models.
With bidirectional energy flow, fast response, and fault simulation, the A1100 Series enables safe, repeatable, and efficient R&D, offline, and certification testing.
Description
- Bidirectional energy flow
- Fault simulation
- High-speed data storage and export
- Accurate simulation of motor characteristics
- & high dynamic testing
- Serve as an AC power supply under synchronous
- generator mode
- Emulate the working conditions of both permanent magnet
- synchronous motor & asynchronous motor
- No vibration & low noise
- Protection for DUT(device under test)
- Standard communication interfaces
- Response time ≤ 1ms

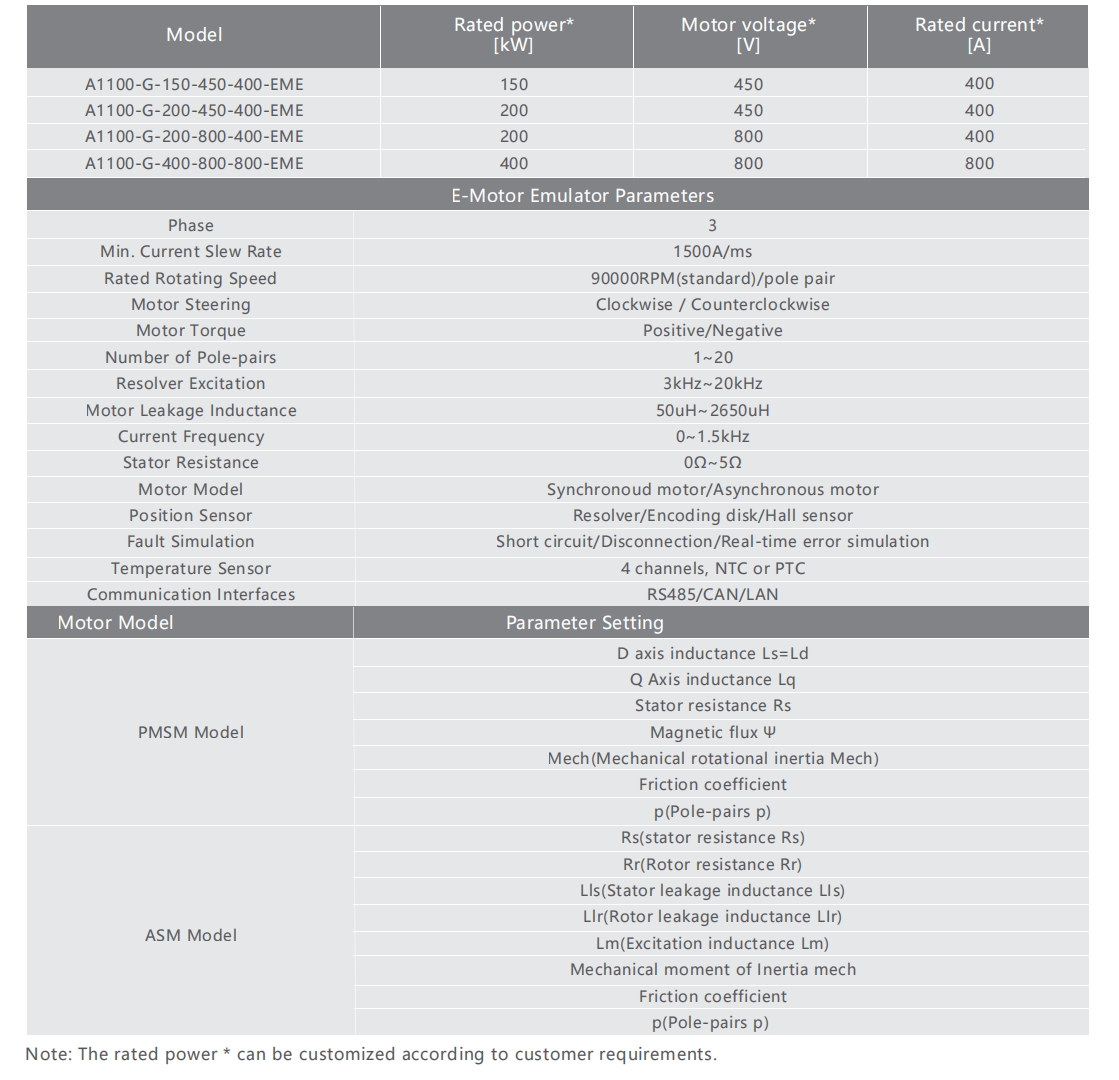

Models and Specifications
To view the pdf files, the Adobe Reader from Adobe Systems is required.
