- ADVANTEST Wireless Data Logger WM2000
Real-time Simultaneous Measurement at a Maximum of 700 points
The AirLogger™ WM2000 Series consists of a data communication unit connected to a Windows PC and various WM2000 Series measurement units that can be selected according to your measurement purposes.
We have added a new measurement unit for dynamic strain to the product lineup, in addition to those for temperature/voltage and strain. The WM2000 series can measure humidity, illumination, pressure, wind speed, load, acceleration, etc., in addition to temperature, voltage, dynamic strain, and static strain, by attaching different kinds of sensors.
Additionally, a single PC communication unit can simultaneously receive diverse types of measurement data acquired from different measurement units, and they can be flexibly combined depending on the task, making AirLogger™ even more convenient.
***
If it becomes necessary to replace the lithium battery, we kindly request that you submit an inquiry to us for a detailed price quotation. Please note that in accordance with United Nations standards, additional charges beyond the cost of the battery itself will be incurred.
***
Wireless Data Logger
Model:
WM2000 Series
Maker:
ADVANTEST CORPORATION
Features
Small and Excellent Environmental Resistance.
Simultaneous Measurement of Temperature, Strain, and Voltage in flexible combinations.
Real-Time Simultaneous Measurement of up to 700 Points.
Software Switch Function.
AirLogger™ WM2000
The measurement unit is equipped for temperature and voltage measurements, as well as strain measurements. By utilizing sensors capable of performing measurements through a four-gauge method for either voltage or strain, we ensure compatibility with a diverse range of sensors.
| Model | Product name | Temperature | Voltage | Strain | When connecting each voltage output sensor | Support for strain gauge transducer | Load cell | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Illumination | Pressure | Humidity | Current | Acceleration | Pressure | Vibration | Load | |||||
| WM2000TA | 2ch Temperature/Voltage Measurement Unit | ○ | ○ | ○ | ○ | ○ | ○ | |||||
| WM2000TB | 7ch Temperature/Voltage Measurement Unit | ○ | ○ | ○ | ○ | ○ | ○ | |||||
| WM2000SA 120Ω/350Ω |
Strain Measurement Unit* | ○ | ||||||||||
| WM2000SA Full bridge |
Strain Measurement Unit | ○ | ○ | ○ | ○ | ○ | ||||||
* The 120 Ω or 350 Ω type can be selected depending on the strain gauge to be connected.
Small and Excellent Environmental Resistance
The measurement units have been made small with high-density mounting technology. They can measure operating environmental temperatures from -40°C to less than +100°C (depending on the model).

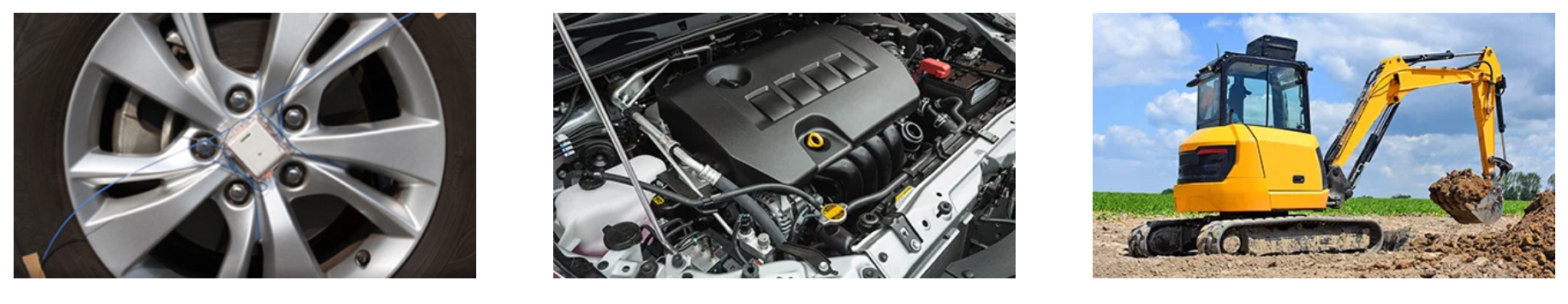

The unit is small and can be installed on moving parts such as tires and arms.
Internal Memory Protects Measurement Data
When the radio environment is poor and data transfer is unstable, the internal memory temporarily stores the measurement data and interpolates the data after measurement.
Measurement data can be displayed and stored without any missing portions after being interpolated.
Simultaneous Measurement of Temperature, Strain, and Voltage in flexible combinations
Up to 100 temperature/voltage measurement units, strain measurement units, and dynamic strain measurement units can be arbitrarily combined and their data can be received with one PC communication unit.
The sampling time can be set for each unit, as well as the physical quantity for each channel, enabling real-time monitoring of various types of measurement.
Real-Time Simultaneous Measurement of up to 700 Points
A single PC communication unit can be connected to up to 100 measurement units. This allows for extensive and flexible data collection, especially in wireless measurement configurations. For temperature and voltage measurements can be conducted simultaneously at a maximum of 700 points, providing extensive coverage across a wide area. This capability ensures comprehensive data gathering even in large-scale or dispersed environments.
Temperature and voltage measurements can be carried out at up to 700 points when utilizing 100 units of the 7-channel temperature/voltage measurement unit.
Strain measurements are possible at up to 300 points with the use of 100 units of the 3-channel dynamic strain measurement unit.
Additionally, these systems are equipped with a software switch function for enhanced control and flexibility.
Software Switch Function
The power switch has been removed from the measurement unit. Units can now be turned on and off from your PC.
