Standard Vibration Testing System Exciting Force from 1.3kN to 60 kN
The F Series is a versatile electrodynamic vibration testing system widely used in the electronics and automotive components industries. It operates on a drive system that supplies power to a coil to generate forced vibrations. The system is primarily composed of two main components: the "vibration generator," which creates the vibrations, and the "power amplifier," which supplies the necessary power.
The vibration generators in the F Series are designed to handle various vibration requirements, including force, velocity, and displacement. They are paired with power amplifiers that utilize a Class D digital switching method, offering high efficiency with low heat generation and high output. This combination ensures that the F Series can meet a wide range of testing needs while maintaining optimal performance.
This system can generate force from 1.3 kN to 60 kN over a broad range of frequencies and has high durability to perform various vibration tests.
※The vibration controller is mounted in the console rack. (Optional)
Vibration Testing System
Model:
F Series
Maker:
EMIC CORPORATION

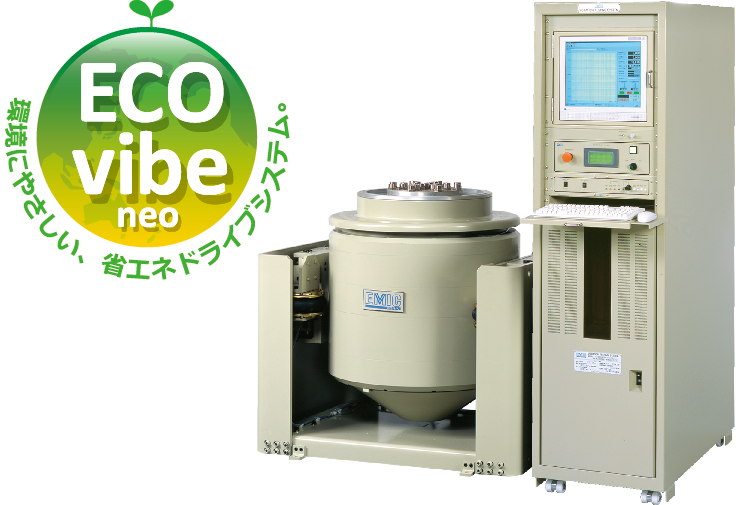

ECO-Vibe Neo: Environmentally Friendly Vibration Testing Devic
The ECO-Vibe Neo is engineered as an environmentally friendly solution for vibration testing, accommodating varying test conditions based on the object being tested. Typically, the required excitation force for vibration testing is calculated by multiplying the mass of the test object, jig, table, and other components by the test acceleration. However, when the required excitation force is less than the maximum rated force of the device, the power consumption of the field power supply—which maintains a constant current to generate a DC magnetic field—becomes disproportionately high compared to the power needed for driving the moving parts.
ECO-Vibe Neo addresses this issue by optimizing the excitation force to match the specific requirements, significantly reducing power consumption. Additionally, with no initial cost, users can benefit from lowered running costs starting from the first year of installation. This makes ECO-Vibe Neo an economical and sustainable choice for vibration testing.

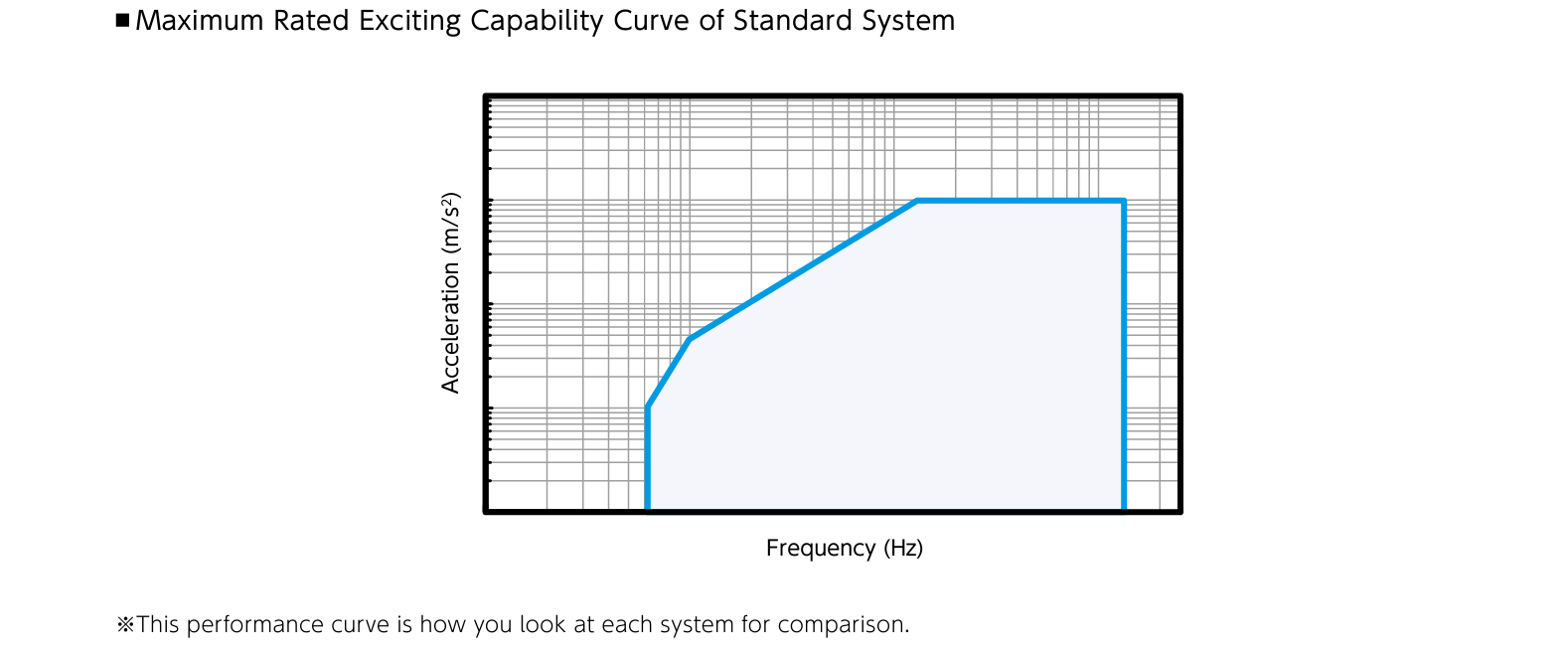

Specifications
Model | F-1K/15 | F-2K/20 | F-2K/20A | F-3K/20 | F-3K/20A | F-6K/20 |
---|---|---|---|---|---|---|
Excitation Force Sine |
1.3 kN0-p | 2.0 kN0-p | 2.0 kN0-p | 3.0 kN0-p | 3.0 kN0-p | 6.0 kN0-p |
Excitation Force Random |
1.3 kNrms | 2.0 kNrms | 2.0 kNrms | 3.0 kNrms | 3.0 kNrms | 6.0 kNrms |
Excitation Force Shock |
2.6 kN0-p | 4 kN0-p | 4 kN0-p | 6 kN0-p | 6 kN0-p | 13.2 kN0-p
(Note 4) |
Frequency Range | ~4000 Hz | ~4000 Hz | ~3000 Hz | ~4000 Hz | ~3000 Hz | ~3500 Hz |
Maximum Acceleration | 1000 m/s2 | 625 m/s2 | 500 m/s2 | 938 m/s2 | 750 m/s2 | 923 m/s2 |
Maximum Velocity | 1.4 m/s | 1.4 m/s | 1.4 m/s | 1.6 m/s | 1.6 m/s | 1.8 m/s |
Maximum Displacement | 15 mmp-p | 20 mmp-p | 20 mmp-p | 20 mmp-p | 20 mmp-p | 20 mmp-p |
Maximum Payload | 30 kg | 40 kg | 150 kg | 40 kg | 150 kg | 60 kg |
Power Consumption | 4.1 kVA | 6.2 kVA | 6.2 kVA | 7.3 kVA | 7.3 kVA | 9.8 kVA |
Moving Part Mass | 1.3 kg | 3.2 kg | 4.0 kg | 3.2 kg | 4.0 kg | 6.5 kg |
Allowable Eccentric Moment | 26 N・m | 40 N・m | 40 N・m | 60 N・m | 60 N・m | 120 N・m |
Cooling Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Vibration Generator Model | 902-FN | 903-FN | 903-FN/A | 903-FN | 903-FN/A | 906-FN |
Power Amplifier Model | 369A-0101A-02 | 369A-0101A-03 | 369A-0101A-03 | 369A-0101A-03 | 369A-0101A-03 | 369A-0101A-06 |
Console Rack Model | CRD-1500-02 | CRD-1500-03 | CRD-1500-03 | CRD-1500-03 | CRD-1500-03 | CRD-2000-06 |
Moving Part Mounting Dimensions | ⌀80 mm | ⌀120 mm | ⌀120 mm | ⌀120 mm | ⌀120 mm | ⌀120 mm |
Vibration Generator Dimensions | 460W×490H×490D mm | 630W×602H×528D mm | 630W×602H×528D mm | 630W×602H×528D mm | 630W×602H×528D mm | 720W×675H×628D mm |
Console Rack Dimensions | 554W×1462H×1010D mm | 554W×1462H×1010D mm | 554W×1462H×1010D mm | 554W×1462H×1010D mm | 554W×1462H×1010D mm | 554W×2000H×1010D mm |
Blower Dimensions | 474.5W×1040H×495D mm | 474.5W×1040H×495D mm | 474.5W×1040H×495D mm | 474.5W×1040H×753D mm | 474.5W×1040H×753D mm | 474.5W×1040H×674D mm |
Vibration Generator Mass | 240 kg | 350 kg | 350 kg | 350 kg | 350 kg | 520 kg |
Console Rack Mass | 285 kg | 290 kg | 290 kg | 290 kg | 290 kg | 420 kg |
Blower Mass | 31 kg | 31 kg | 31 kg | 39 kg | 39 kg | 55 kg |
Model | F-6K/30 | F-10K/56 | F-15K/56A | F-22K/60 | F-25K/60 | F-28K/60 |
---|---|---|---|---|---|---|
Excitation Force Sine |
6.0 kN0-p | 10.0 kN0-p | 15.0 kN0-p | 22.0 kN0-p | 25.0 kN0-p | 28.0 kN0-p |
Excitation Force Random |
60.6 kNrms | 10.0 kNrms | 15.0 kNrms | 22.0kNrms | 25.0 kNrms | 28.0kNrms |
Excitation Force Shock |
13.2kN0-p
(Note 4) |
22.0 kN0-p
(Note 4) |
33.0 kN0-p
(Note 4) |
48.4 kN0-p
(Note 4) |
55.0 kN0-p
(Note 4) |
61.6 kN0-p
(Note 4) |
Frequency Range | ~2300 Hz | ~3000 Hz | ~3000 Hz | ~2500 Hz | ~2500 Hz | ~2200 Hz |
Maximum Acceleration | 706m/s2 | 667m/s2 | 1000m/s2 | 846m/s2 | 961m/s2 | 848m/s2 |
Maximum Velocity | 1.8 m/s | 1.2 m/s | 1.8 m/s | 1.8 m/s | 1.8 m/s | 1.8 m/s |
Maximum Displacement | 30 mmp-p | 56 mmp-p | 56 mmp-p | 60 mmp-p | 60 mmp-p | 60 mmp-p |
Maximum Payload | 200 kg | 200 kg
(300kg) (Note 2) |
200 kg
(300kg) (Note 2) |
400 kg
(500kg) (Note 2) |
400 kg
(500kg) (Note 2) |
400 kg
(500kg) (Note 2) |
Power Consumption | 9.8 kVA | 19.3 kVA | 22.6 kVA | 26.8 kVA | 28.4 kVA | 37.5 kVA |
Moving Part Mass | 8.5 kg | 15.0 kg | 15.0 kg | 26.0 kg | 26.0 kg | 33.0 kg |
Allowable Eccentric Moment | 120 N・m | 500 N・m | 500 N・m | 700 N・m | 700 N・m | 900 N・m |
Cooling Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Vibration Generator Model | 906-FN/A | 916-BP/LA | 916-BP/LA | 926-AP/LA | 926-AP/LA | 936-AP/LA |
Power Amplifier Model | 369A-0101A-06 | 369A-0501A-16BP | 369A-0502A-16AP | 369A-0503A-26AP | 369A-0504A-26AP | 369A-0504A-36AP |
Console Rack Model | CRD-2000-06 | CRD-2000-16 | CRD-2000-16 | CRD-2000-26 | CRD-2000-26 | CRD-2000-36 |
Moving Part Mounting Dimensions | ⌀120 mm | ⌀230 mm | ⌀230 mm | ⌀270 mm | ⌀270 mm | ⌀330mm |
Vibration Generator Dimensions | 720W×675H×628D mm | 975W×885H×700D mm | 975W×885H×700D mm | 1106W×1047H×855D mm | 1106W×1047H×855D mm | 1224W×1107H×971D mm |
Console Rack Dimensions | 554W×2000H×1010D mm | 554W×2000H×1010D mm | 554W×2000H×1010D mm | 554W×2000H×1010D mm | 554W×2000H×1010D mm | 554W×2000H×1010D mm |
Blower Dimensions | 474.5W×1040H×674D mm | 707W×1681H×908D mm | 707W×1681H×908D mm | 707W×1681H×908D mm | 707W×1681H×996D mm | 707W×1666H×1072D mm |
Vibration Generator Mass | 500 kg | 1200 kg | 1200 kg | 2200 kg | 2200 kg | 3100 kg |
Console Rack Mass | 420 kg | 520 kg | 520 kg | 520 kg | 530 kg | 570 kg |
Blower Mass | 55 kg | 220 kg | 220 kg | 220 kg | 255 kg | 260 kg |
Model | F-33K/60 | F-35K/60 | F-40K/60 | F-43K/60 | F-51K/60 | F-60K/60 |
---|---|---|---|---|---|---|
Excitation Force Sine |
33.0 kN0-p | 35.0 kN0-p | 40.0 kN0-p | 43.0 kN0-p | 51.0 kN0-p | 60.0 kN0-p |
Excitation Force Random |
33.0 kNrms | 35.0 kNrms | 40.0 kNrms | 43.0 kNrms | 51.0 kNrms | 60.0 kNrms |
Excitation Force Shock |
72.6 kN0-p
(Note 4) |
77.0 kN0-p
(Note 4) |
88.0 kN0-p
(Note 4) |
94.6 kN0-p
(Note 4) |
112.2 kN0-p
(Note 4) |
132.0 kN0-p
(Note 4) |
Frequency Range | ~2200Hz | ~2200Hz | ~2200Hz | ~2500 Hz
(Note 1) |
~2500 Hz
(Note 1) |
~2500 Hz
(Note 1) |
Maximum Acceleration | 1000m/s2 | 1000 m/s2
(Note 3) |
1000m/s2
(Note 3) |
623m/s2 | 739m/s2 | 869m/s2 |
Maximum Velocity | 1.8 m/s | 1.8 m/s | 1.8 m/s | 1.3 m/s | 1.3 m/s | 1.3 m/s |
Maximum Displacement | 60 mmp-p | 60 mmp-p | 60 mmp-p | 60 mmp-p | 60 mmp-p | 60 mmp-p |
Maximum Payload | 400 kg
(500kg) (Note 2) |
400 kg
(500kg) (Note 2) |
400 kg
(500kg) (Note 2) |
500 kg
|
500 kg | 500 kg |
Power Consumption | 42.2 kVA | 47.8 kVA | 57.0 kVA | 61.8 kVA | 64.8 kVA | 68.3 kVA |
Moving Part Mass | 33.0 kg | 33.0 kg | 36.0 kg | 69.0 kg | 69.0 kg | 69.0 kg |
Allowable Eccentric Moment | 900 N・m | 900 N・m | 900 N・m | 1200 N・m | 1200 N・m | 1200 N・m |
Cooling Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Vibration Generator Model | 936-AP/LA | 936-AP/LA | 936-AP/LA | 960-AP/LA | 960-AP/LA | 960-AP/LA |
Power Amplifier Model | 369A-0505A-36AP | 369A-0505A-36AP | 369A-1006A-36AP | 369A-1005A-60AP | 369A-1006A-60AP | 369A-1008A-60AP |
Console Rack Model | CRD-2000-36 | CRD-2000-36 | CRD-2000W-36 | CRD-2000W-60 | CRD-2000W-60 | CRD-2000W-60 |
Moving Part Mounting Dimensions | ⌀330mm | ⌀330mm | ⌀330 mm | ⌀430 mm | ⌀430 mm | ⌀430 mm |
Vibration Generator Dimensions | 1224W×1107H×971D | 1224W×1107H×971D | 1224W×1107H×971D | 1452W×1252H×1215D | 1452W×1252H×1215D | 1452W×1252H×1215D |
Console Rack Dimensions | 554W×2000H×1010D mm | 554W×2000H×1010D mm | 1108W×2000H×1010D mm | 1108W×2000H×1010D mm | 1108W×2000H×1010D mm | 1108W×2000H×1010D mm |
Blower Dimensions | 707W×1681H×946D | 707W×1681H×946D | 869W×1856H×1094D | 1021W×2170H×1149D | 1021W×2170H×1149D | 1021W×2170H×1149D |
Vibration Generator Mass | 3500kg | 3500kg | 3900 kg | 5000 kg | 5000 kg | 5000 kg |
Console Rack Mass | 580 kg | 600 kg | 600 kg | 600 kg | 650 kg | 700 kg |
Blower Mass | 260 kg | 325 kg | 380 kg | 400 kg | 400 kg | 450 kg |
※ Input power specification is for 3φ AC200 V 50/60 Hz.
※ Lower limit frequency should be determined by the performance of an available vibration control system.
※ When exporting the Vibration Testing System from Japan to overseas, an Export License from the Ministry of Economy, Trade and Industry in Japan may be required depending on the specifications such as rated force. Please contact us for details.
(Note 1) The rated force is available up to 500 Hz and the force level from 500 Hz to 2500 Hz is 70% of its maximum.
(Note 2) We will customize per your instructions.
(Note 3) Not a theoretical value, for limiting the maximum acceleration.
(Note 4) Shock-rated force can be increased by adding power modules.
