Universal Video Platform HDMI Signal Generator

Customizable video perfection.

Request a Quote

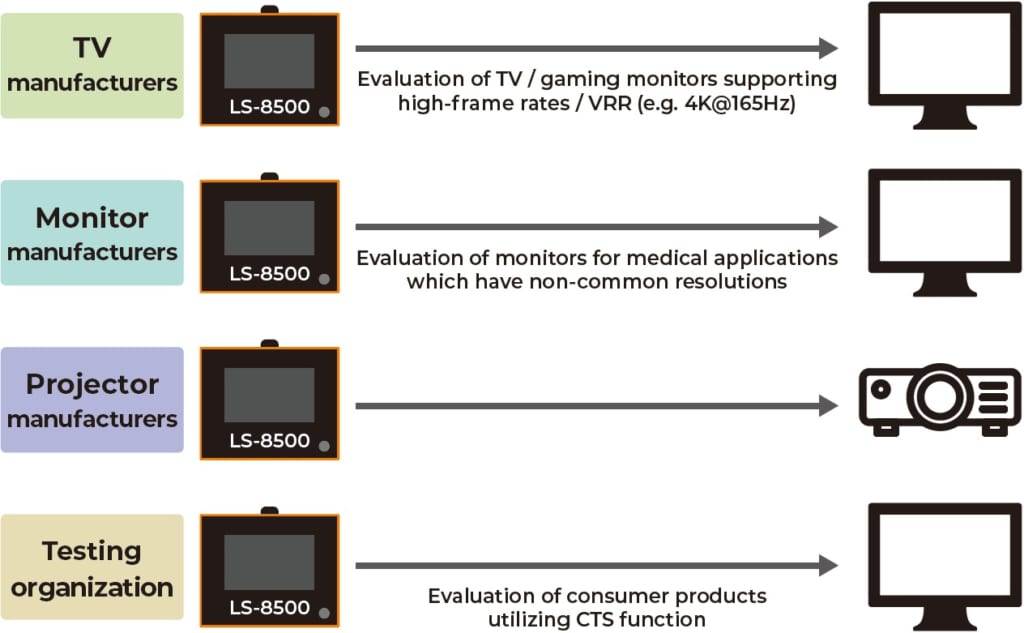

This cutting-edge video generator supports formats from CTA-861-H and VESA DMT 1.0 Rev.1.3, offering high frame rates via an FRL mode of up to 4 Lane 12Gbps. It includes HDMI 2.1a capabilities such as Variable Refresh Rate (VRR), Fast Vactive (FVA), and Auto Low-Latency Mode (ALLM). Easily adjust video timings and patterns, enable/disable packets, and set variable frame rates with Scenario Mode for comprehensive video performance tweaking.

Universal Video Platform HDMI Signal Generator

Model:

LS-8500+GX-173

Maker:

ASTRODESIGN

Download Materials

Data Sheet

Features

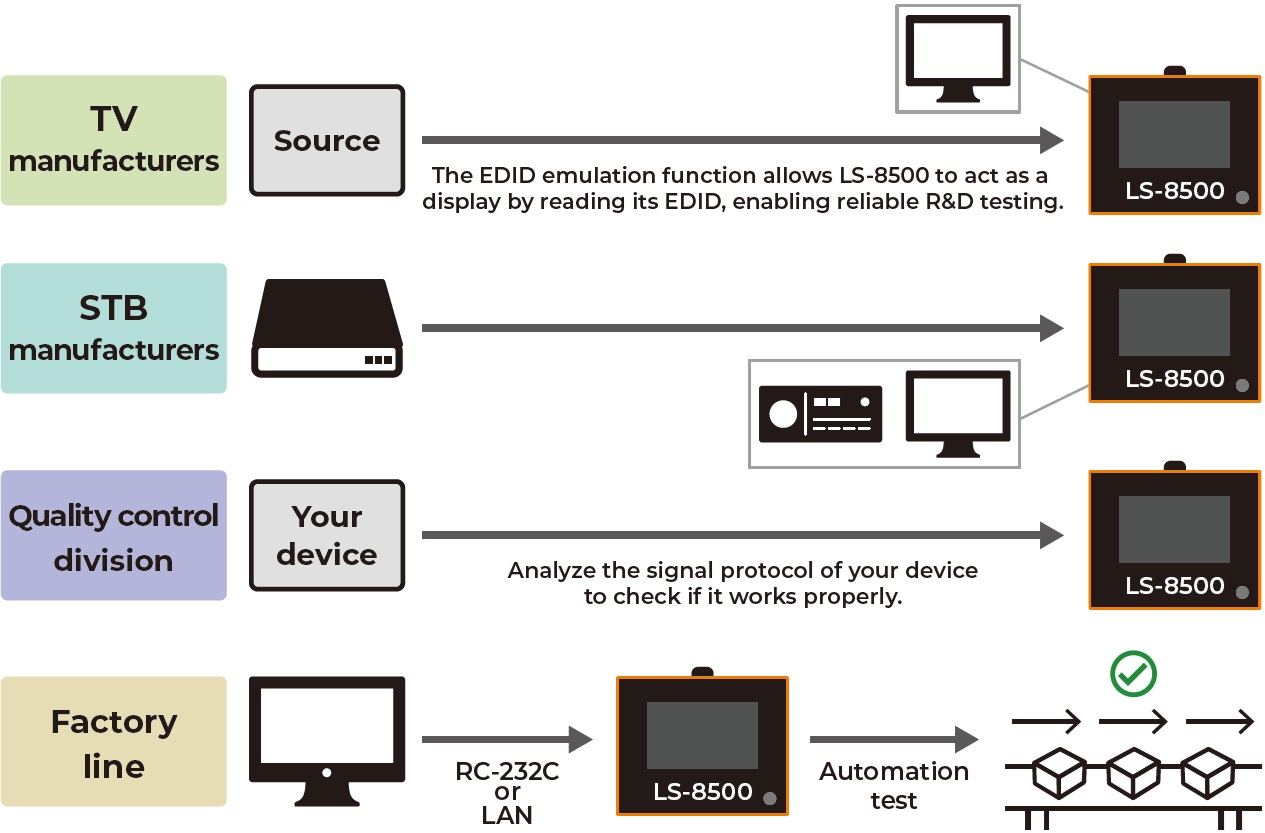

LS-8500 Features

Intuitive operation with touch panel
Can be operated with a mouse
Support GUI screen monitor output

GX-173(HDMI Output unit) Features

Generating video format specified in CTA-861-H and VESA DMT Version 1.0 Rev.1.3High frame rate video format.
FRL mode up to 4 Lane 12Gbps.
Variable Refresh Rate (VRR), Fast Vactive (FVA), and Auto Low-Latency Mode (ALLM) specified in HDMI 2.1a

GUI

■Video Setting
✓Video Timing, Pattern, etc. can be set at once.

■Packet Setting
✓ Packets’ Enable/Disable and Editing can be set.

■VRR/FVA/ALLM Setting
✓Allows setting of relevant parameters for each function, such as Variable frame rate.
✓ Arbitrary frame rate　is variable and time can be set in Scenario Mode.

Specifications

Item	Spec
HDMI Output	HDMI x 1 (48Gbps、4K120p/8K60p、VRR、FVA、ALLM)
Pixel Clock	TMDS	25 to 600 MHz
	FRL	25 to 2400 MHz
Color Format	RGB　8/10/12/16 bit (RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0)
E-EDID	Ver1.4（DDC2B）
