- ONO SOKKI O-Solution DS-5000
Sound and Vibration Analysis system
U.S.-based sales, and delivery available.
The ONO SOKKI DS-5000 sound and vibration analysis system is a compact NVH measurement platform designed for automotive testing, EV motor analysis, and structural vibration measurement. Supporting multi-channel data acquisition up to 240 channels, it combines portable hardware with integrated software for real-time measurement and advanced analysis. Its battery-powered design enables high-precision vibration testing in laboratories, production lines, and field environments.
Sound and Vibration Analysis system
Model:
O-Solution DS-5000
Feature
DS-5000’s 3 key features
1. Quickly
– One click and smooth mode switching Measurement↔ analysis, check the result instantly
2. Easily
– Designed for easy cable connection & operability
3. Anywhere
– Compact & light, battery-powered, less affected by external noise
Software

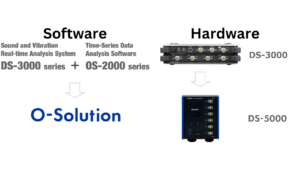

The O-Solution is a software that integrates the DS-3000 series Real-time analysis software and the OS-2000 series Time-series data analysis software.
It has “Measurement mode” performed by connecting to the DS-5000 and “Analysis mode” for editing recorded data and detailed analysis in one application.
Hardware
The DS-5000 is a downsized model of the existing model DS-3000 and supports multi-channel measurement (up to 240 channels). All channels isolated and noise resistant hardware.

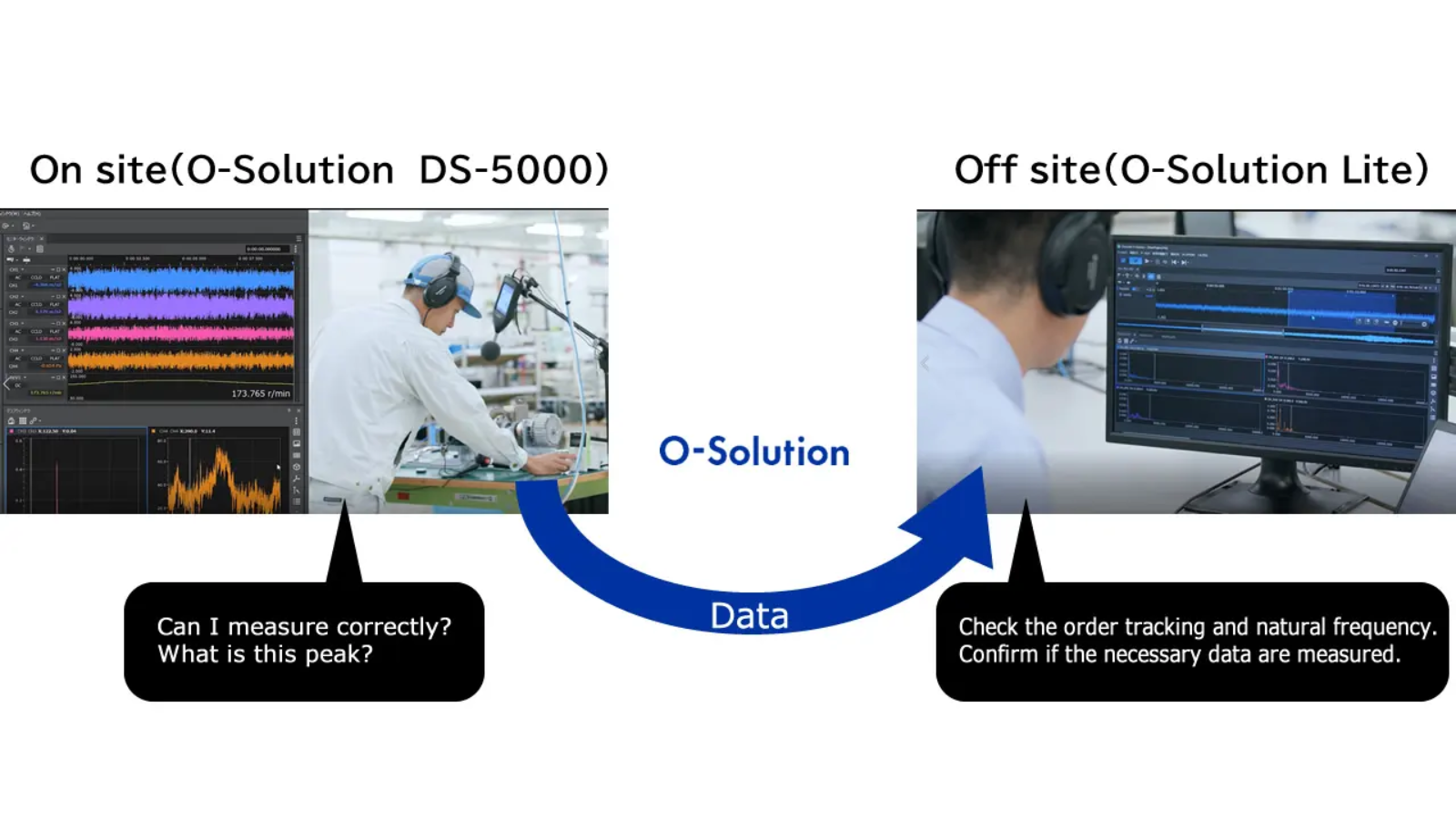

O-Solution Lite (Free Viewer)
- O-Solution Lite is a license-free viewer that allows engineers to easily share measurement data and analysis results.
- By combining O-Solution Lite and DS-5000, the device can function as a data logger without requiring a software license.
Standalone Recording Mode (Without PC)
- DS-5000 can operate as a standalone high-precision recording device by preloading calibration and measurement conditions, eliminating the need for a connected PC.
Other Features
| Sampling frequency range | 10 μHz to 100 GHz | ||||||
| Max. number of analysis data | 1,000 | ||||||
| Max. number of output files | 1,000 | ||||||
| Data size | 1TB | ||||||
| Multiple thread processing | 〇 | ||||||
| External control function | 〇 | ||||||
Key Applications
| Automotive Testing | Used for sound and vibration analysis of EV motors, engines, and transmissions. | ||||||
| Production Line Inspection | Supports NVH (Noise, Vibration, and Harshness) testing in manufacturing lines. | ||||||
| Structural & Floor Vibration Testing | Measures micro-vibrations in semiconductor factories and infrastructure projects. | ||||||
