Automatic Colony Counter PSF Series

Automatic Colony Counter PSF Series by Shashin Kagaku is a state-of-the-art automatic colony counter designed and made in Japan. It is renowned for its ability to instantly measure specimens such as bacterial colonies with high accuracy, significantly reducing the time required for manual counting from three hours to just five minutes.

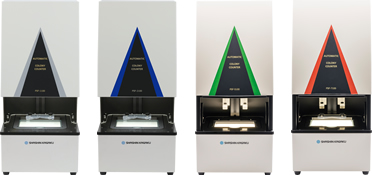

This series includes models such as the PSF-1100, a low-cost model with essential functions for general colony counting, and the PSF-2100/5100/7100, used in various industries including food/beverages, cosmetics, pharmaceuticals, water bureaus, agricultures, testing centers, and universities.

Automatic Colony Counter

Model:

PSF-1100/2100/5100/7100

Maker:

SHASHIN KAGAKU

Download Materials

Brochure

Feature

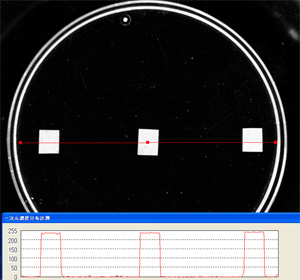

Original Lighting Technology:

This technology ensures a uniform background in both bright and dark field conditions in the measurement area, allowing for high-accuracy colony counting. It corrects brightness unevenness of the culture medium itself, making all areas other than colonies uniform.

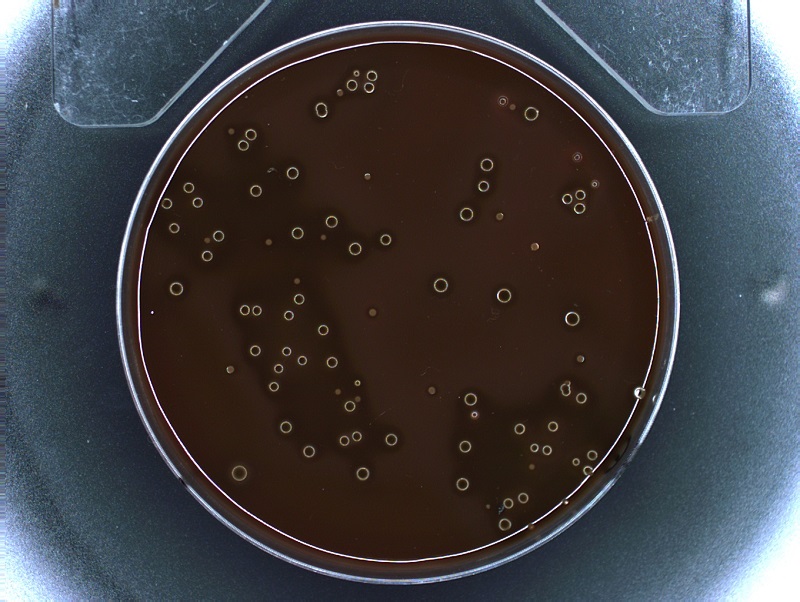

Top Lighting:

Essential for specimens whose media do not transmit light or when detecting colonies by color. The height of the top lighting can be adjusted, which is particularly useful for capturing the outline of colonies clearly. This feature is available in the PSF-2100, PSF-5100, and PSF-7100 models.

Manual Correction Capability:

After automatic measurement, users can manually correct the count by adding false-negative colonies, deleting false-positive colonies, and excluding certain areas from the count. This operation is user-friendly and can be done with mouse clicks.

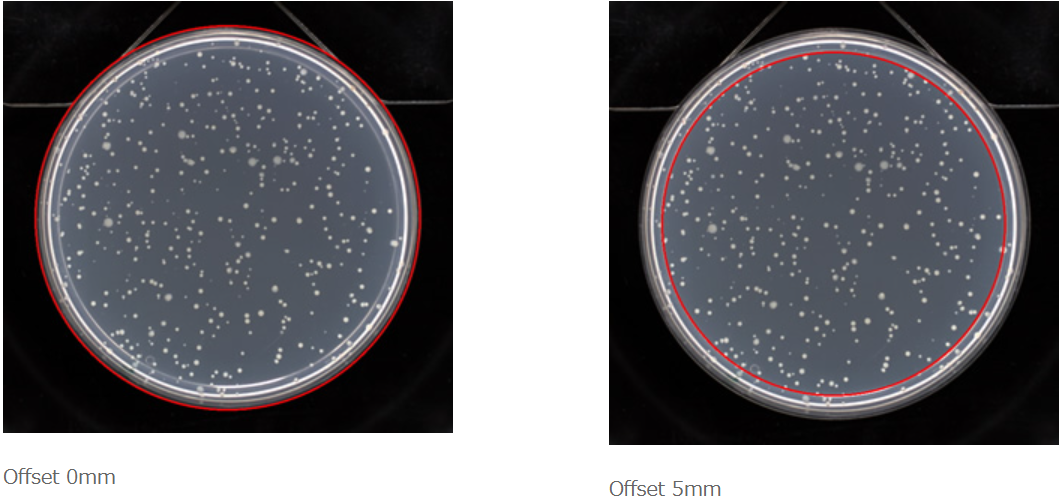

Automatic Detection and Setting for Round Petri Dishes:

The system can automatically detect round petri dishes and set the counting area accordingly.

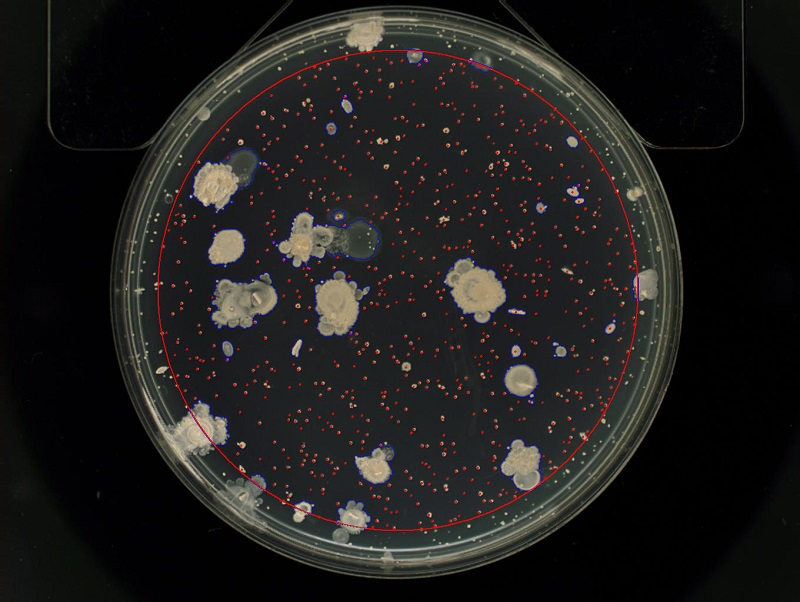

Automatic Binarization Function:

This feature simplifies the counting process by eliminating the need for setting conditions manually.

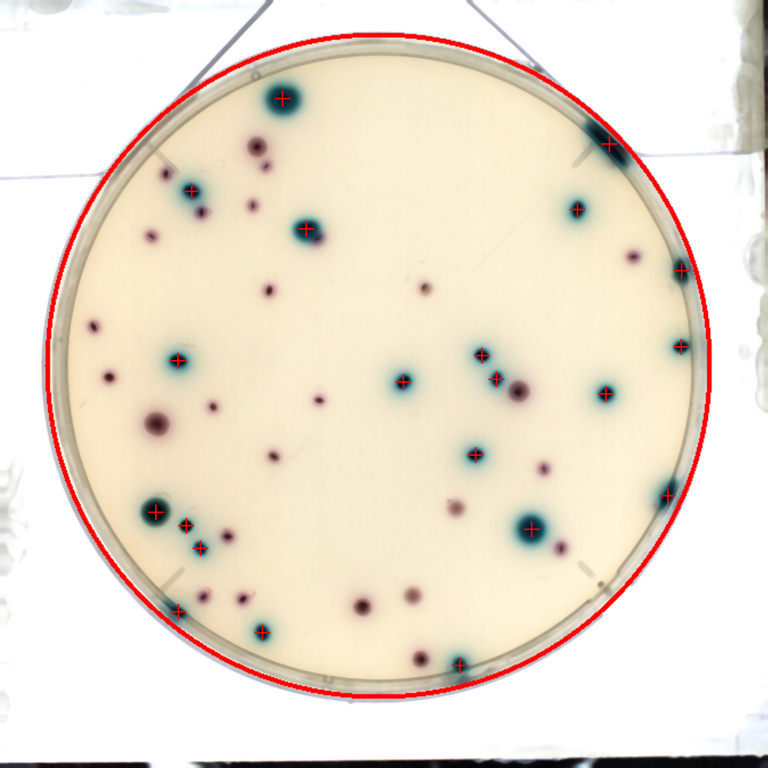

Lab Color Space for Easy Measurement Setting:

The use of Lab color space, which is close to human vision, allows users to set measurement conditions easily with just one mouse click.

Automatic Colony Counter PSF series

Specification

Model	PSF-1100	PSF-2100	PSF-5100	PSF-7100
Dimensions of main unit	W280 × D351 × H630mm
Weight	19Kg
Power Source	AC 1φ 100-240V 50/60Hz
System configuration	Main Unit only. (PC and Monitor are sold separately)
Operating environment	10-35 °C, 20-80 % humidity
Camera	Color CMOS camera
Number of pixels	3MP	5MP	12MP	20MP
Calculated resolution	67µm	53µm	34µm	28µm
Measurement object	Viable bacteria Colonies on petri dishes, Petri films, filters, compact dry, film media, Plaques and Inhibition zones *1.
Maximum *count area 2**	100×134mm
Round Petri Dishes	up to φ100mm
Multi-well plates	6，12，24-wells. Optional software required.
Measurement time	1 to 5 seconds per petri dish. Depends on PC performance and measurement conditions.
Maximum number of colonies	20,000 colonies (settings can be changed)
Light shielding	Dust cover Shading Sliding Door is optional.		Shading Sliding Door
Top lighting (refiective)	Fixed type	Height adjustable *3
Bottom lighting	Darkfield and brightfield

*1 Optional software is required to inhibition zone measurement. This software is standard only in PSF-7100W.
*2 For square petri dishes, use one that is smaller than the maximum count area.
*3 It is possible to change the height position of the top lighting. By this function, the outline of colonies can be clearly photographed.
