NetVision SerDes Interface Board

NetVision SerDes Interface Board

[Contact Us]

FPD-Link III & GMSL & GVIF2(Serial, Parallel, MIPI)
The SerDes interface boards are compatible with vehicle digital video interfaces(SerDes interface) such as Texas Instruments FPD-Link III, Analog Devices(formerly Maxim) GMSL and Sony GVIF2.
These boards support serial-MIPI conversion as well as serial-parallel conversion.

Interface Board

Model:

SerDes Interface Board

Maker:

NetVision

Option Board for SV series

These boards are used in combination with our SV series boards. They convert the SerDes standard signals to USB(PC), HDMI and DisplayPort, or conversely, the signals from USB(PC), HDMI and DisplayPort to SerDes standards.
In the case of single-ended type, FAKRA connectors are mounted. For the differential type, we will ask customer to specify an implementable connector.
There are many kinds of boards, so we named them according to→ Product Number Rule.


SerDes Interface Board

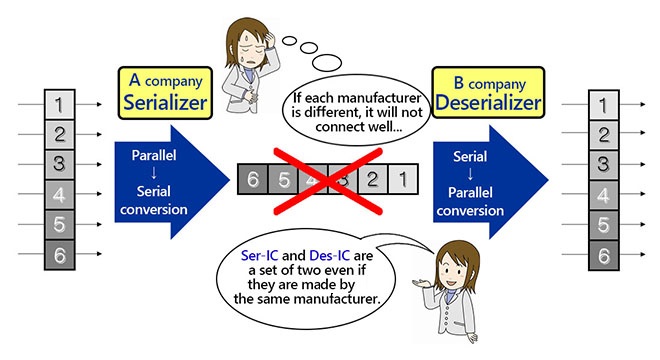

What is SerDes

SerDes is not very common, so we will explain it from the meaning of words. SerDes is the name combining two products, Ser and Des.
Ser is an abbreviation for Serializer or “parallel-serial converter”, and Des is an abbreviation for Deserializer or “serial-parallel converter”.
The serialization method is a manufacturer-specific method. It is different from LVDS transmission.
