ALTImass Type B Coriolis Flowmeter
Request a Quote
The OVAL ALTImass Type B is a high-performance, general-purpose Coriolis mass flowmeter designed for liquids and gases. Its rainbow-shaped flow tube enables easy self-drain, cleaning, and stable operation.
With a high accuracy, low pressure loss, and a wide 1:50 turndown ratio, it supports diverse fluids from water and oils to chemicals and food. Equipped with advanced self-diagnostics, pipeline vibration monitoring, and a large backlit display for on-site settings, the ALTImass Type B offers both reliability and ease of use in demanding industrial environments.
FEATURES
● General-purpose mass flowmeter.
● Rainbow-shaped flow tube design, facilitating self drain, offers ease of cleaning and consistent performance.
● A complete set of ferrule fittings are available.
● High metering accuracy and low pressure loss. A rangeability of 1:50 is attainable.
Satisfactory self-diagnostic feature
● Status of the flowmeter is presented by two-color backlights (white, orange) and two LEDs (red, green).
● Input signal (sensor) check for disconnection
● Pipeline vibration check
Large-size display! Settings can be changed in the field.
Display screen is large and easy to view with a backlight facilitating setting in a dark place.

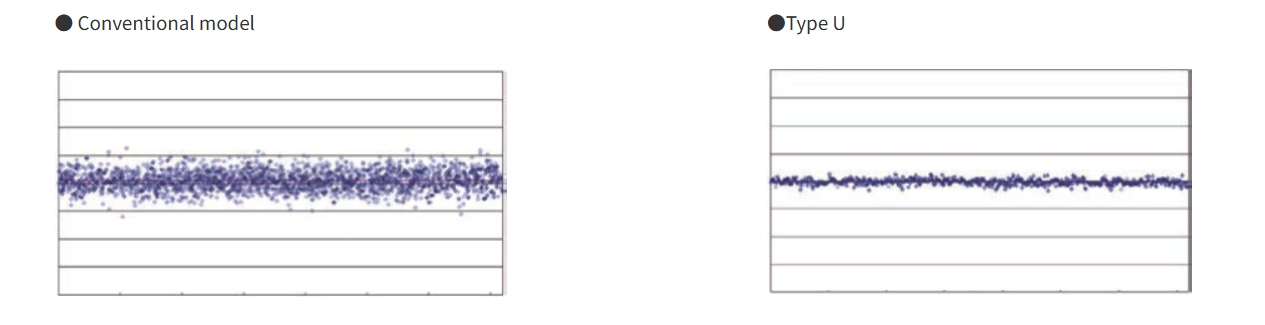

Improved zero stability
Applicable fluid
- water
- gasoline
- kerosene
- light oil
- heavy oil
- paint
- hardener
- hydraulic oil
- liquid food
- general chemical liquid
- other
Specifications
GENERAL SPECIFICATIONS
| Model | CB006, CB010, CB015, CB025, CB040, CB050 | ||
| Nominal size | 10mm, 15mm, 25mm, 40mm, 50mm | ||
| Process Connection | JIS 10, 20, 30K RF ASME 150, 300, 600 RF, JPI 150, 300, 600 RF Ferrule |
||
| Acceptable fluids | Liquids | ||
| Flow range | 0 to 96000kg/h (6 models) | ||
| Accuracy | Flowrate | ±0.2％RD | |
| Density | ±0.003g/mL | ||
| Temperature range (Differs by explosionproof specification) |
−40 to ＋130℃ | ||
| Max. operating press. | Depends on flange rating | ||
| Wetted materials | SUS 316L | ||
| Explosionproof specification | JPEx, ATEX, IECEx, KCs, CSA, NEPSI, ITRI | ||
| Maritime certification | DNV GL | ||
