Kyowa’s Printed Circuit Assembly Stress Measurement Set (PCAS Series) provides a complete solution for strain measurement on printed circuit boards. Combining strain gages, USB-connected data loggers (PCD-400A/430A), and analysis/reporting software (PCAS-100A/200A), it allows users to conduct stress tests in compliance with IPC/JEDEC-9704A. The intuitive interface and automated reporting functions make it ideal for both R&D and QA environments. The PCAS-1000A set supports up to 128 channels for high-density measurements.

PCB Strain measurement

Maker:

Kyowa

Strain measurement for Printed Circuit Board

Strain gage model suitable for stress test on printed circuit board

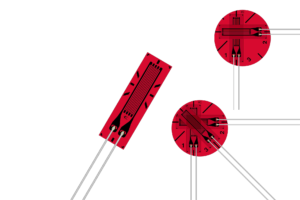

KFGS – foil gage for general purpose
Advantage of use of strain gage
●Simple measurement process
●Reliable accuracy
●Compact dimention
*Linear expansion coecient selectable up to target object
*Lead-wire length can be customized.

Data logger suitable for stress test on printed circuit board

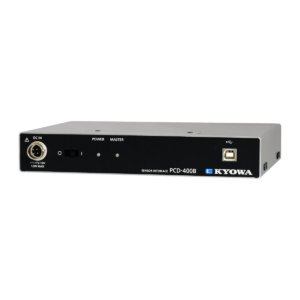

Sensor Interface PCD-400A/430A
Connecting with computer through USB interface enable users
to conduct strain measurement.

Software series for data recording, analysis and report making
PCA Stress Measuring Software PCAS-100A
In combination with PCD-400A/430A, it can be used
to record and analyze data and make report document

Software series for data recording, analysis and report making
PCA Stress Analysis Software PCAS-200A
It can output CSV file with analysis of data from KS2 file
recorded in Kyowa measuring instruments.
