KIKUSUI Compact DC Power Supply PMX-A Series
[Contact Us]
The PMX-A Series compact DC power supply offers reliable constant voltage and current. Its ergonomic design facilitates easy wiring on benchtops, while LAN, USB, and RS232C interfaces enable remote control via web browsers on PCs, smartphones, and tablets. The series excels in low noise output due to its series regulator system and includes features like remote sensing, protective functions, and memory, enhancing usability and integration.
Features
A standard feature of the networking capability provides extended applications of the ordinary testing.
The PMX-A series is a compact, high-performance DC pow-er supply that provides constant voltage (CV) and constant current (CC). It is designed to improve working efficiency for benchtop uses. For this purpose, the output terminals are located on the front panel and are ergonomically designed so that wiring harnesses for electrical loads can be con-nected by moving your fingers naturally.
Moreover, a forced air cooling system is used to intake and exhaust of the in-ternal air, so the unit can be rack mounted without space. Furthermore, the PMX-A is equipped with LAN, USB, and RS232C interfaces as standard interfaces required for sys-tem operation. In particular, the LAN interface enables you to control and monitor the power supply from Web browsers on PCs, smartphones, tablets, and other terminal devices.Moreover, the PMX-A is LXI (LAN eXtensions for Instru-mentation) certified product, so it can be connected easier with your measurement system using LAN interface.
The PMX-A is also equipped with remote sensing (for 18 V, 35 V models only), analog external control/monitoring output, various protective functions, memory function, and other functions.

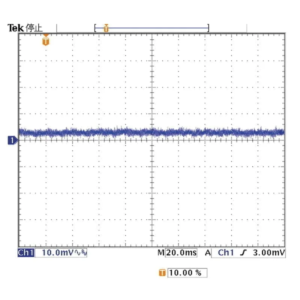

Series regulator system with excellent noise performance
The PMX-A is based on the capacitor-input type of the series regulator design and which output can be generated with low noise and low ripple compared to the switching regulator design.
Improved usability

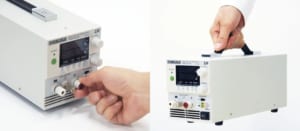

Ergonomically designed for the wiring load harness. The handle makes you easy to carry.
Specifications
AC input
Model | PMX18-2A | PMX18-5A | PMX35-1A | PMX35-3A | PMX70-1A | PMX110-0.6A | PMX250-0.25A | PMX350-0.2A | PMX500-0.1A |
Nominal input rating | 100 Vac *1, 50 Hz / 60 Hz, single phase | ||||||||
Input voltage range | ± 10 % | ||||||||
Input frequency range | 47 Hz to 63 Hz | ||||||||
Inrush current *2 | 50 Amax or less | 60 Amax or less | 45 Amax or less | 60 Amax or less | 65 Amax or less | 55 Amax or less | 40 Amax or less | 55 Amax or less | 40 Amax or less |
Power (MAX) *3 | 150 VA | 310 VA | 150 VA | 310 VA | 230 VA | 210 VA | 210 VA | 230 VA | 170 VA |
Output
Model | PMX18-2A | PMX18-5A | PMX35-1A | PMX35-3A | PMX70-1A | PMX110-0.6A | PMX250-0.25A | PMX350-0.2A | PMX500-0.1A | ||
Rating | Output voltage | 18.00V | 18.00V | 35.00V | 35.00V | 70.00 V | 110.0 V | 250.0 V | 350.0 V | 500.0 V | |
Output current | 2.000A | 5.000A | 1.000A | 3.000A | 1.000 A | 0.600 A | 0.250 A | 0.200 A | 0.100 A | ||
Output power | 36 W | 90 W | 35 W | 105 W | 70 W | 66 W | 62.5 W | 70 W | 50 W | ||
Voltage | Setting range | 0 V to 18.90 V | 0 V to 18.90 V | 0 V to 36.75 V | 0 V to 36.75 V | 0 V to 73.5 V | 0 V to 115.5 V | 0 V to 262.5 V | 0 V to 367.5 V | 0 V to 525.0 V | |
Setting resolution *4 | 1mV | 2 mV | 10 mV | ||||||||
Setting accuracy | ±(0.2 % of setting +0.1 % of rating) | ||||||||||
Line regulation *5 | ±1 mV | ±1 mV | ±3 mV | ±3 mV | ±5 mV | ±7 mV | ±15 mV | ±25 mV | ±30 mV | ||
Load regulation *6 | ±2 mV | ±5 mV | ±3 mV | ±4 mV | ±5 mV | ±7 mV | ±15 mV | ±25 mV | ±30 mV | ||
Transient response *7 | 50 μs | 100 μs | |||||||||
Ripple noise (rms) *8 | 0.5 mV | 1 mV | 2 mV | 3 mV | 5 mV | 10 mV | |||||
Rise time *9 | Rated load | 120 ms or less | 150 ms or less | 120 ms or less | 120 ms or less | 150 ms or less | 120 ms or less | ||||
No load | 120 ms or less | 150 ms or less | 120 ms or less | 120 ms or less | 150 ms or less | 120 ms or less | |||||
Fall time *10 | Rated load | 50 ms or less | 50 ms or less | 50 ms or less | 50 ms or less | 80 ms or less | 50 ms or less | ||||
No load | 270 ms or less | 320 ms or less | 270 ms or less | 270 ms or less | 270 ms or less | 120 ms or less | 120 ms or less | 220 ms or less | 60 ms or less | ||
Maximum remote sensing compen- sation voltage (single line) | 0.6 V | – | |||||||||
Temperature coefficient (TYP) | 100 ppm/℃ | ||||||||||
Current | Setting range | 0 A to 2.1 A | 0 A to 5.25 A | 0 A to 1.05 A | 0 A to 3.15 A | 0 A to 1.050 A | 0 A to 0.630 A | 0 A to 0.262 A | 0 A to 0.210 A | 0 A to 0.105 A | |
Setting resolution *4 | 0.1mA | ||||||||||
Setting accuracy | ±(0.3 % of setting +0.1 % of rating) | ||||||||||
Line regulation | ±5 mA | ±2 mA | ±2 mA | ±1 mA | ±1 mA | ±1 mA | |||||
Load regulation | ±5 mA | ±5 mA | ±5 mA | ±5 mA | ±5 mA | ±3 mA | |||||
Ripple noise (rms) *8 | 1 mA | 2 mA | 1 mA | 1 mA | 1 mA | ||||||
Temperature coefficient (TYP) | 200 ppm/℃ |
