Bi-directional programmable DC source-load system with up to 2400V/30kW, fast dynamic response, and flexible test modes.
Request a Quote
The S7200 is a bi-directional programmable DC source-load system combining DC power supply and electronic load functions in one platform.
It supports up to 2400V and 30kW per unit, enabling both sourcing and energy recovery back to the grid.
With multiple load modes, fast dynamic response, parallel expansion, and CC/CV priority, it is ideal for testing EV components, energy storage, fuel cells, and high-power electronics in advanced R&D and production.

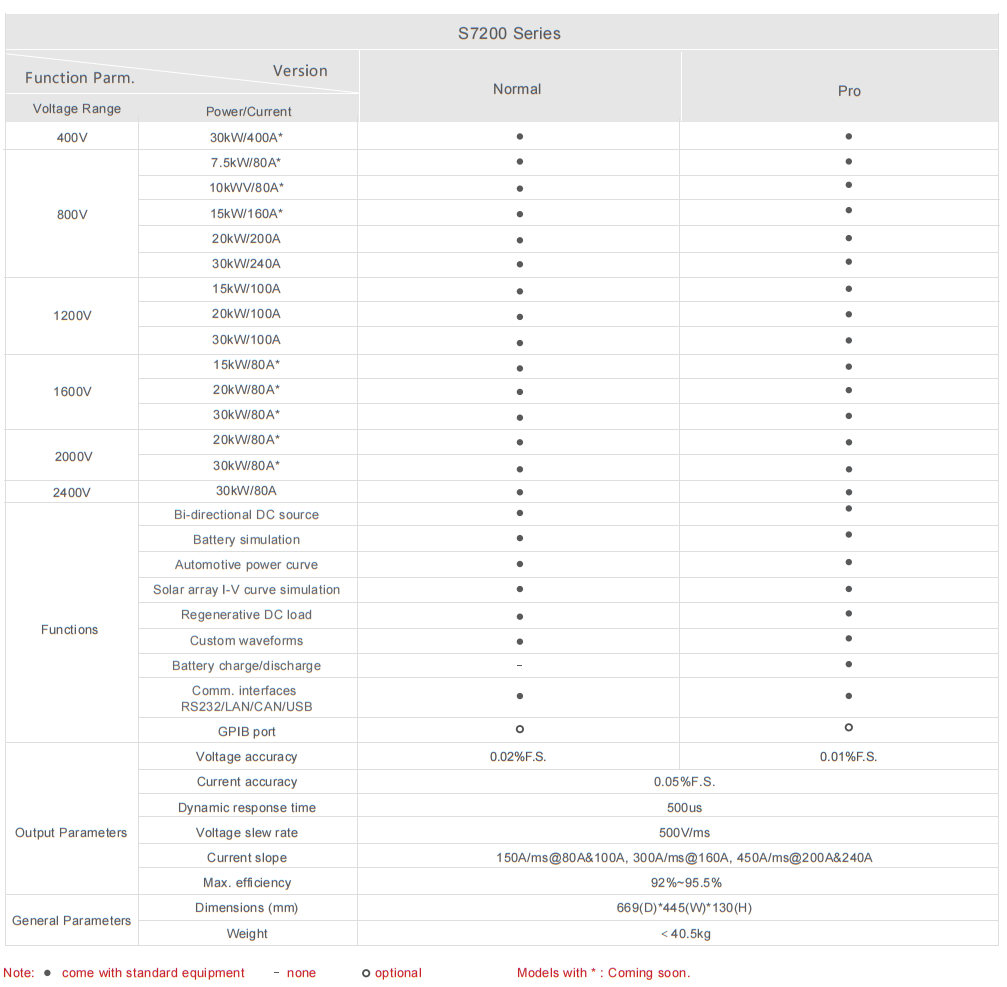

Description
- Wide range design: up to 2400V/80A
- Ultra-high power density: per unit up to 30kW/3U
- Source and load in one
- Quick dynamic response
- Flexible parallel connection
- Built-in standard curves
- CC/CV priority
