Janome Automatic Screw Presenter

Automatic Screw Presenter

The Automatic Screw Presenter is a versatile solution for both manual and robot-mounted screwdriver applications. It supports a wide range of screw sizes (M1.0 to M5.0) and types, including ferrous and non-ferrous screws.

The device also offers an external output signal for screw presence detection and is designed to be compact for space-saving installation. Custom configurations and mounting plates are available to meet specific requirements.

Maker:

Janome Corporation

Features

• Manual and Robot Types Available

Janome offers specialized models tailored for both handheld and robot-mounted screwdrivers, accommodating screw sizes from M1.0 to M5.0.



Robot Model

Manual Model



• Easy Changeover for Greater Versatility

Switching to different screw sizes is simple—just replace the rail.

– JSP-RSD / JSP-MS Series: Compatible with 8 sizes (M1.0 to M3.0)

– JSP-R / JSP-M Series: Compatible with 3 to 4 sizes (M2.0 to M3.0 and M3.5 to M5.0)

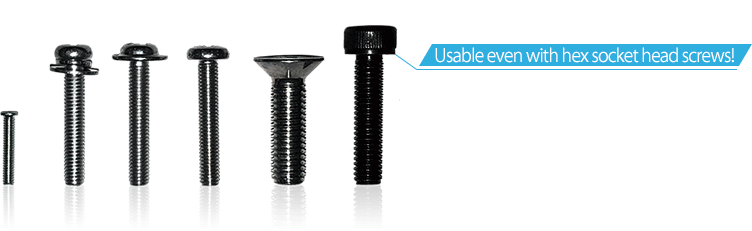

• Broad Compatibility

Compatible with a wide variety of ferrous, non-ferrous, and other screw types.

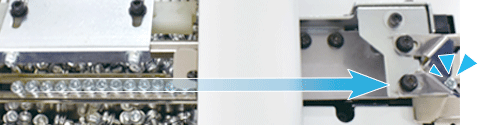

• Dependable Delivery

Employs a horizontal method for smooth and steady screw presentation.



• Overload Protection Function
Automatically corrects when too many screws are in the scooping chamber by reversing the motor briefly. If the issue persists, the safety function cuts off motor power.



• External Output Signal
All models include an external output signal line:

Manual: Outputs signal when a screw is picked up.
Robot: Outputs signal for screw presence/absence.



• Mounting Plates for Robot Installation
Various types, directions, and heights of mounting plates are available for desktop robots.



• Space-saving
Compact size, ideal for small desktop robots with a narrow footprint.

Product Lineup

Manual

JSP-M Series

Compatible Screw Size:M2.0~M5.0

JSP-MS Series

Compatible Screw Size:M1.0~M3.0











Robot

JSP-R Series

Compatible Screw Size:M2.0~M5.0

JSP-RSD Series

Compatible Screw Size:M1.0~M3.0

VIdeo

Specification

Application Manual Robot
Series Name JSP-MS Series JSP-M Series JSP-RSD Series JSP-R Series
Compatible Screw Size M1.0~M3.0 M2.0~M5.0 M1.0~M3.0 M2.0~M5.0
Maximum Screw Shaft Length 20mm 18mm 20mm 18mm
Screw Supply Volume 80cc 150cc 80cc 150cc
Cycle Time 0.9sec 1.5sec
External Dimensions
(W×D×H)
123×181×145.9mm 129.4×215×138.5mm 123×181×145.9mm 133.4×274×138.5mm
Weight (with rail) 2.9kg 3.7kg 3.0kg 4.4kg
Power Supply Input AC100~240V (single phase) 50/60Hz
Output DC15V 2.4A AC adapter
Operating Environment Temperature 0~40℃
Humidity 10~90%

Specifications may be modified without prior notice.

Product Demonstrations Available

We offer to arrange demonstration tests for each of Janome’s products.

Contact us to discuss your needs and schedule a demo to experience the capabilities of Janome firsthand.
