IWASAKI - EYE SUPER UV TESTER - SUV-W171 -
[Contact Us]
The SUV-W171 is the successor to the W161 model, designed for high-intensity UV weathering tests that comply with JIS A 1501 and JTM G 01 standards.
Equipped with a water-cooled 6kW metal halide lamp, it achieves a maximum UV irradiation intensity of 150mW/cm², enabling accurate and accelerated testing.
The system simulates various environmental conditions, including irradiation, condensation, darkness, and showers.
Test Standard
● JIS A 1501
● JTM G 01

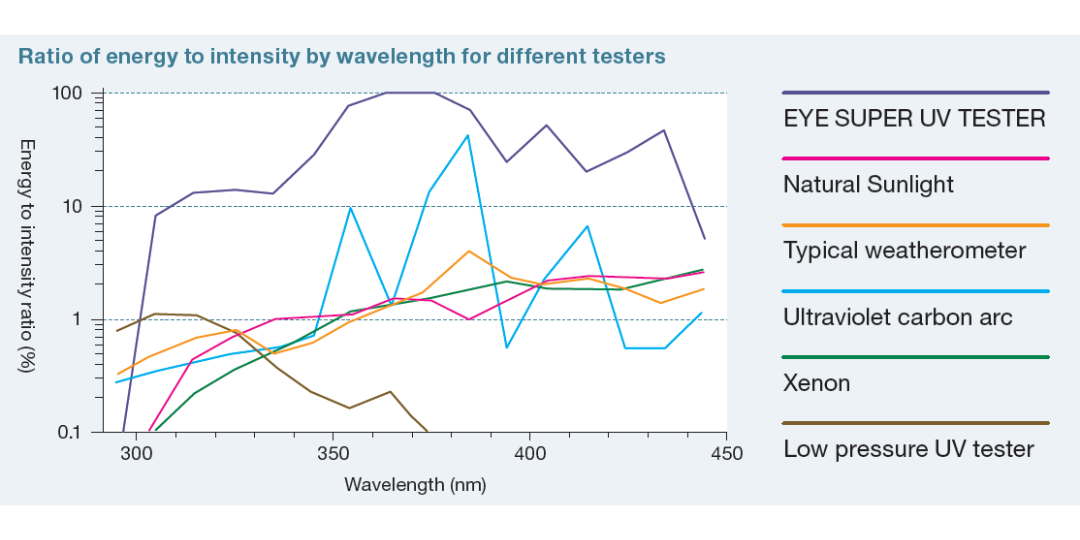

☆30 times or greater UV irradiation intensity than conventional wheathermeters. Unprecedented test speeds.
Purpose
● Automated UV Irradiation Control
● Easy to Maintain
● Simple Form, Intuitive Operation
● Reduces Running Costs
● Easy check of UV Irradiation
● Supports Diverse Irradiation Conditions
Key Specifications
| Model | SUV-W171 | |
| Light source | Water-cooled 6kW metal halide lamp | |
| Test case | Irradiation, condensation, darkness, showers | |
| UV irradiation intensity | 150mW/cm2 (maximum)* | |
| Uniformity ratio | 90% or higher | |
|
Temperature control range |
Irradiation period (BPT)** | 50 to 85°C RH (room temperature: 20°C) |
| In darkness (temperature in chamber) | 35 to 75°C RH (room temperature: 20°C) | |
|
Humidity control range |
Irradiation | 40 to 70% RH (BPT 63°C)** |
| Dark hour | 50 to 90% RH (tank temperature50°C) | |
| Effective irradiation area | 96000mm2 (480mm × 200mm) | |
| Power consumption | 14kW (three-phase 3W, 200V, 50/60Hz) Input current: 50A | |
| External dimensions | 1350mm (W) × 1200mm (D) × 1800mm (H) (not including protrusions) | |
| Weight | Approx. 750kg | |
| Interface | USB flash drive | |
* Value specified by the JIS standard (100mW/cm2 for conventional photometer (UVP365-01)).
** BPT= Black panel thermometer
● Wet temperature control range depends on test conditions, etc.
● Please note that specications may change due to continuous system improvement program.
● Contact us for other specifications. A “drain pan” for preventing water leakage is available.
