Hirox 3D Digital Microscopy HRX-01

Flagship model with 5MP sensor suitable for 4K resolution and all-new motorized HR lens

The HRX-01 features a brand-new high-resolution camera, and a newly developed intelligent stand combined with high-end motorized lenses, bringing digital microscopy to a completely new level.
Because we know that each customer's needs are unique, it’s easy to customize your system using the most advanced lens, stand, software, and PC for YOUR specific observation applications.

Model:

HRX-01

Maker:

Hirox

Download Materials

Feature

High Resolution 5.0 MP Sensor

New 5.0 Mega pixel CMOS chip supporting ultra-high resolution with 50 frames per second providing crystal clear images.

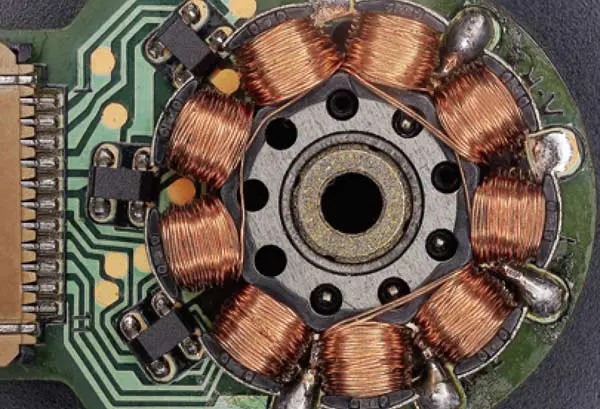

Live HDR & Automatic Optimization

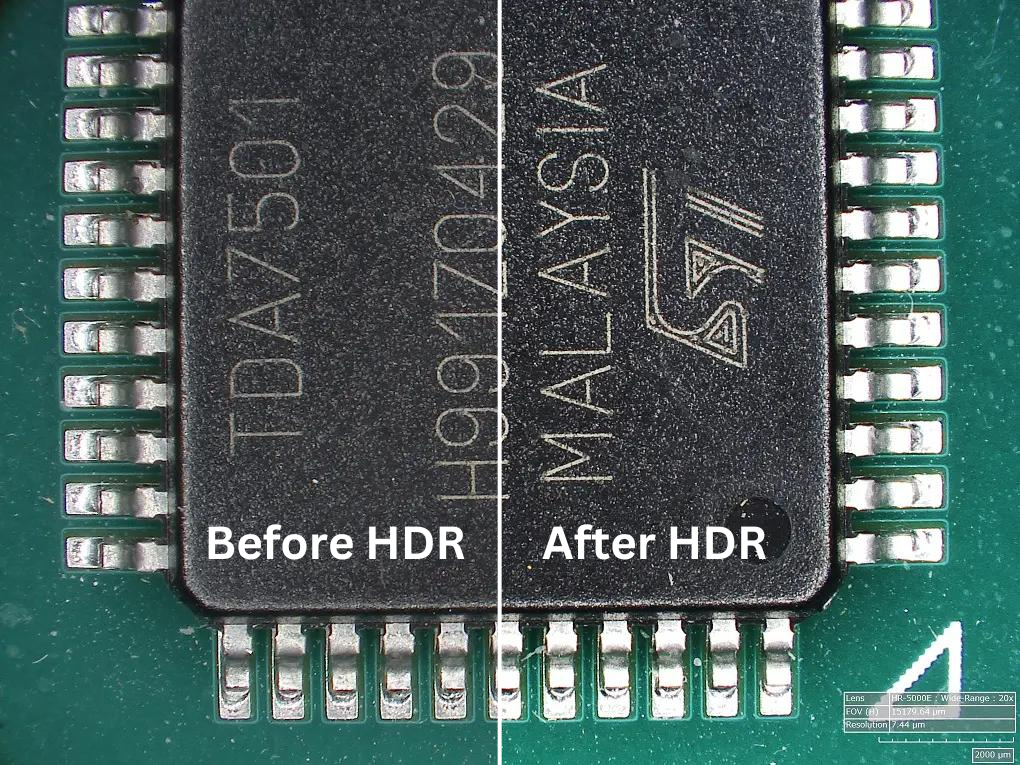

The HRX-01 artificial intelligence automatically selects the optimal observation settings according to the observation scene and object.

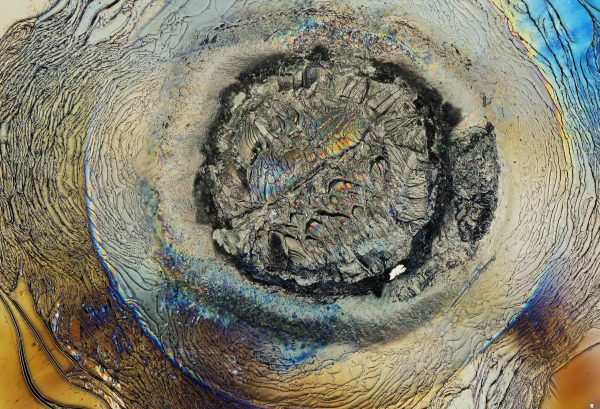

Advanced Lighting



Additional external lighting controlled by the software such as the newly developed dual side lighting option for the highest observation flexibility.

New 4K Interface



No need for “all-in-one systems”! Running on 4K windows PC, choose your favorite software features for your samples, create and save customized settings.

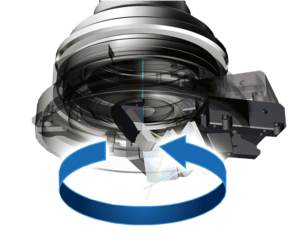

Exclusive Hirox 360° Rotary-Head

The patented Hirox 3D Rotary-Head enables inspection from various angles with adjustable speed over 360°



No need to touch the sample!



High-precision mirror set

with motorized rotation

Easily understand and recognize complicated shapes or surfaces

Smooth & high-quality

photos & videos of the sample

HRX-01

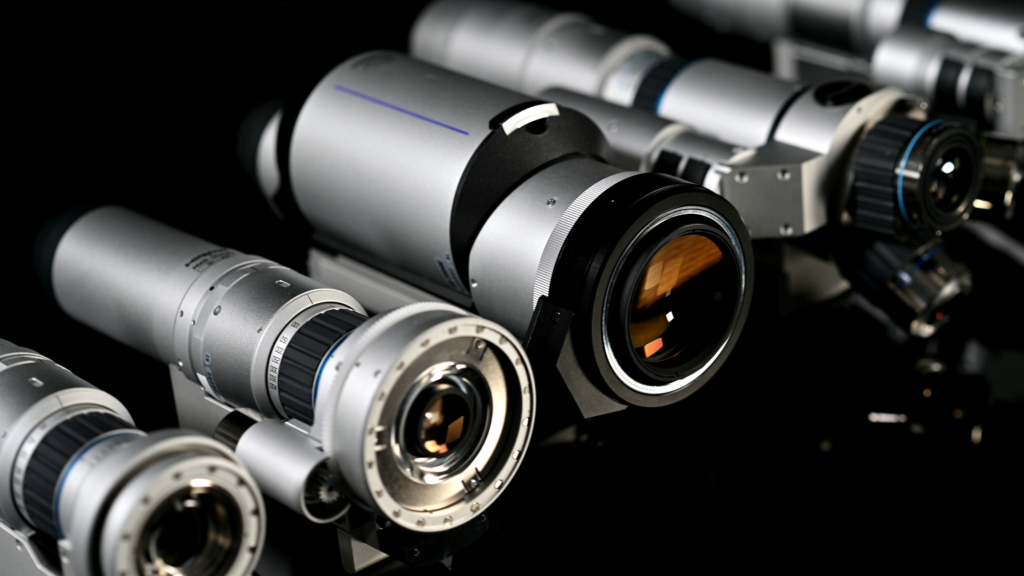

New Motorized Lenses

The telecentric Ultra-High Resolution motorized zoom Lens provides high-precision 3D reconstruction even at low magnification with no distortion.



All the new lenses are now fully motorized – including zoom, turret & lighting – for faster and easier sample observation!



Intelligent magnetic adapters with RFID chips reduce human error, save time, and make microscopy fun again!

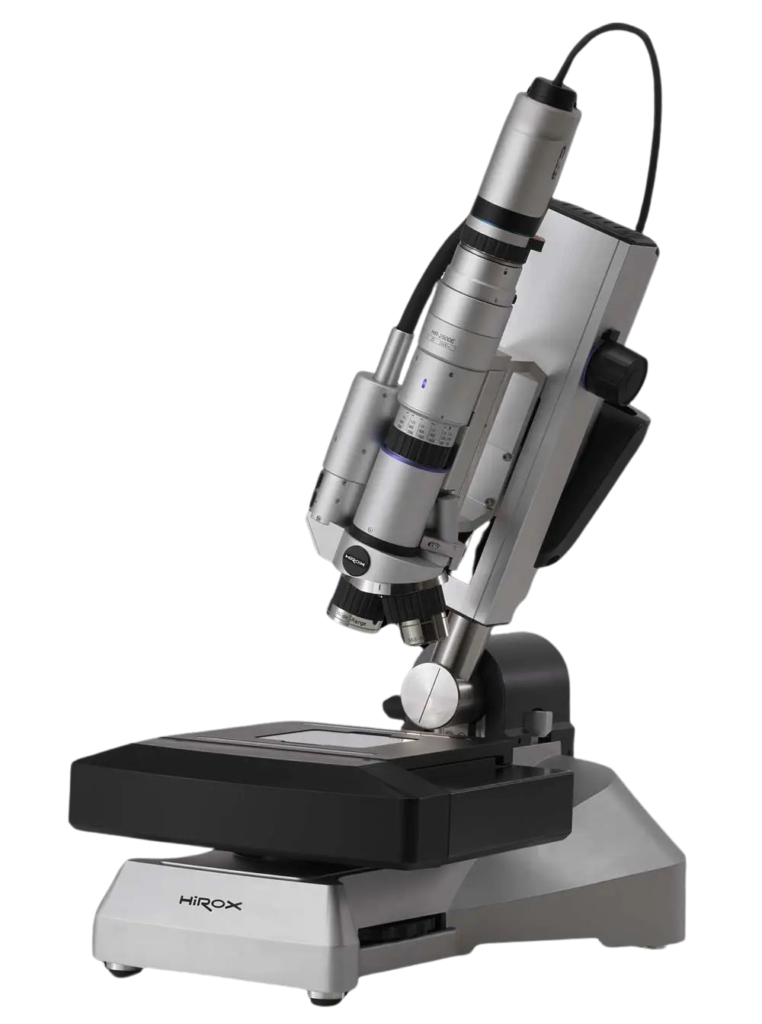

All-in-One High Precision Stand

Hirox created a completely new angle stand featuring multiple integrated sensors and a high precision 80 mm motorized Z movement, providing the highest level of accuracy for various applications.



The XY stage can be manual or motorized (50 x 50 mm or 100 x 100 mm) for automatic XYZ acquisition. The stand also integrates built-in transmitted illumination, controlled by the HRX-01 software, increasing the observation capabilities, as well as antivibration feet for improved stability. A rotary plate can be added to spin the sample in any direction!



Thanks to various sensors – including height and angle – the ST-AS stand truly supports the users, offering intelligent & stress-free observation.



For a maximum ease-of-use, all 4 axes (X-Y-Z-R) can be controlled with the wireless 3D-mouse controller





An Application Platform completely redesigned

New 4K Software Interface

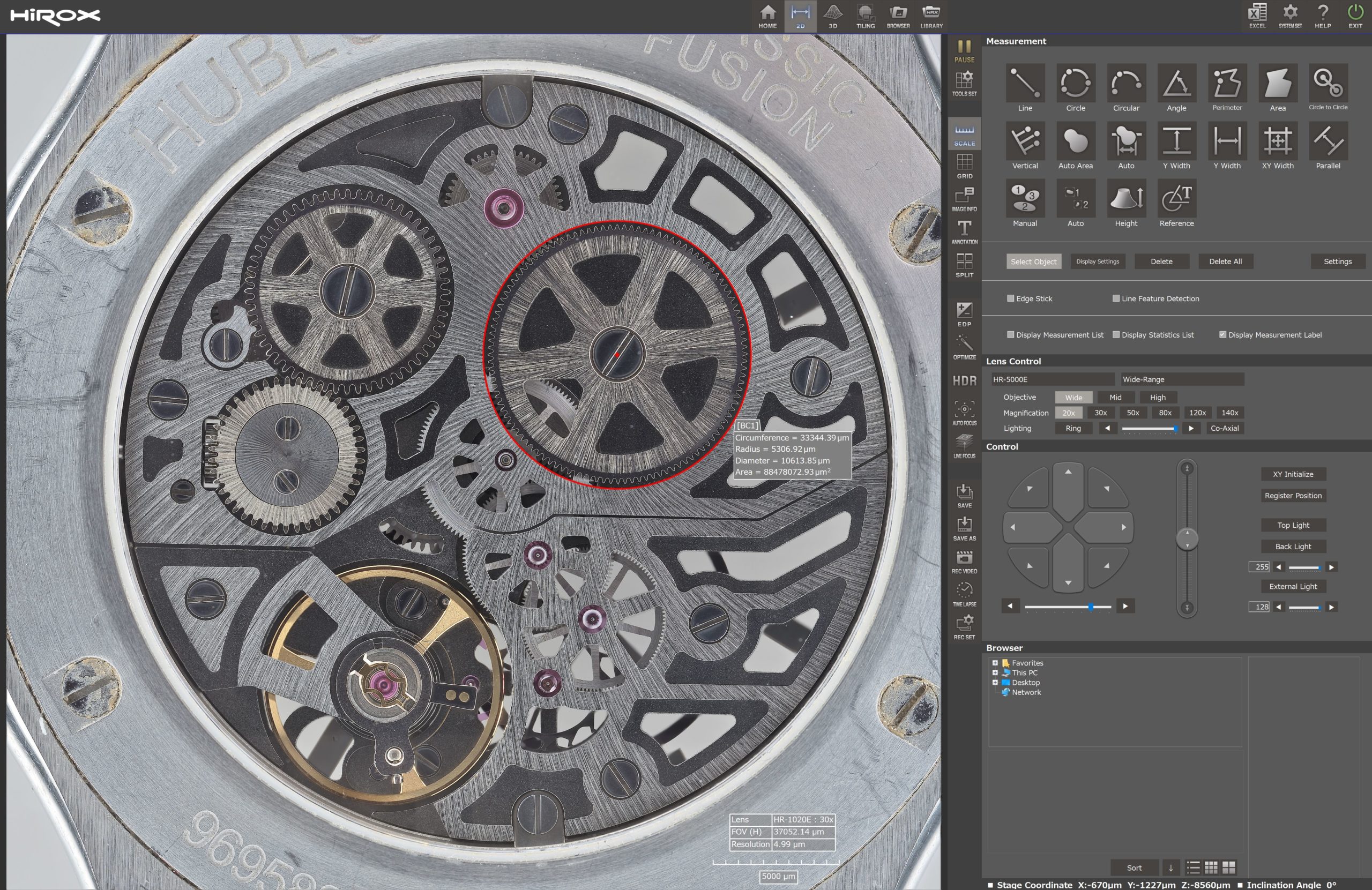

The new flexible interface takes advantage of the 4K displays commonly available now on standard PC. All the controls & options are easily laid out while keeping clear full-width, pixel-perfect images from the lens.

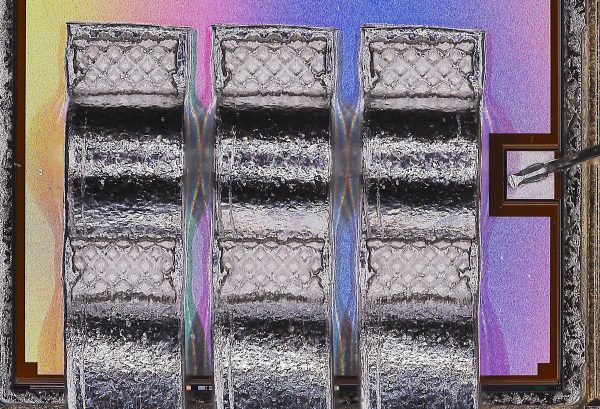

Live Multi Focus

This standard operation even produces a completely focused image quickly for objects with significant height disparities. This expanded observation is simple to execute and not dependent on depth-of-field for anyone.





3D Tiling & Map

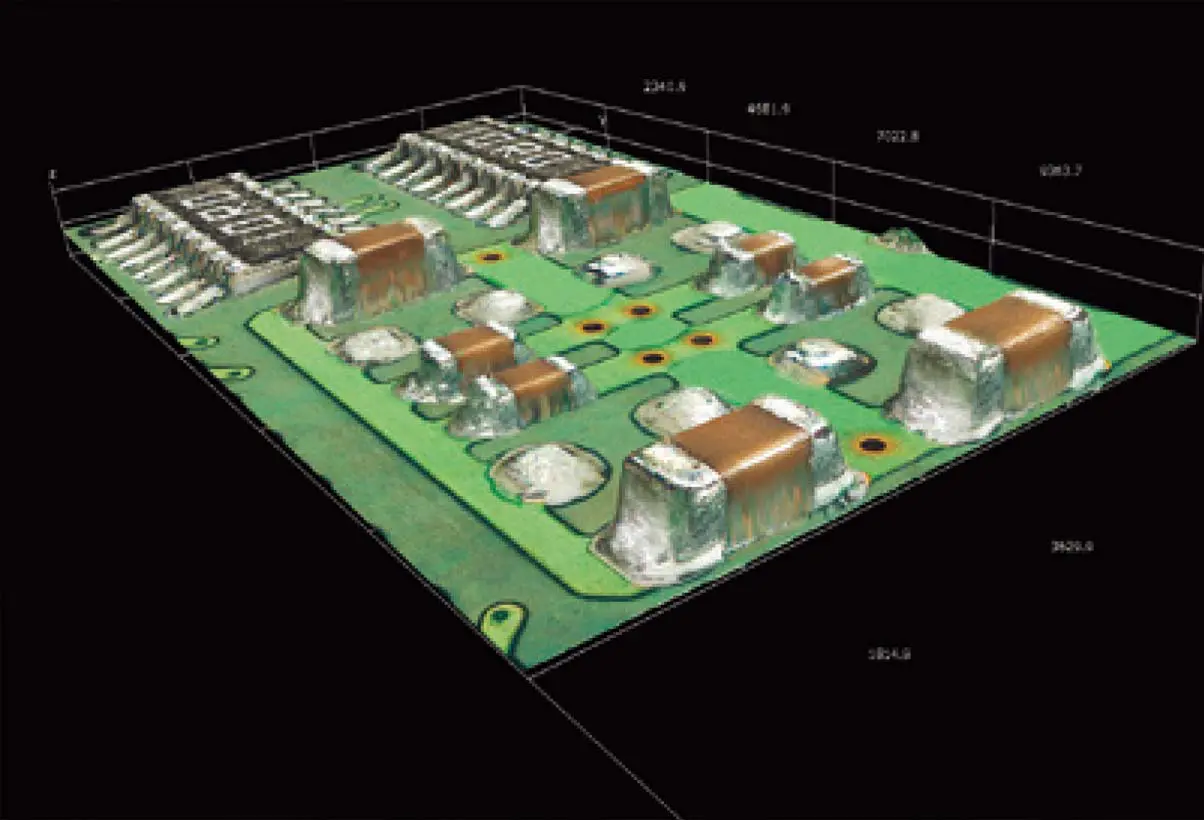

Just select the area of interest to stitch images automatically in real-time with the motorized XYZ stage, creating amazing high-resolution images with a wide field of view. With the “map” function, the tiled image is displayed on the screen, so you just need to click on the map to bring the stage to the clicked position.

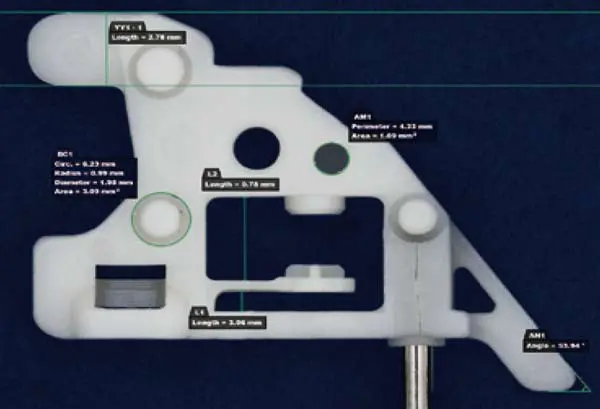

Auto 2D Measurement

Accurate and calibrated measurements in real-time, including length, area, angle, diameter, and automatic surface area. The combination of encoded optics and powerful software eliminates any human errors by automatically selecting and displaying the correct lens,
adapter and scale on the screen at any time.

Easy 3D Measurement

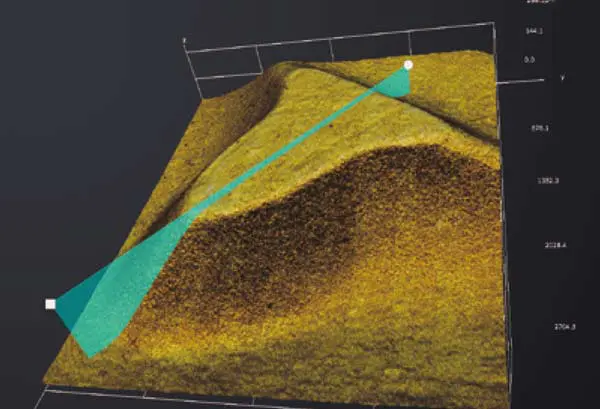

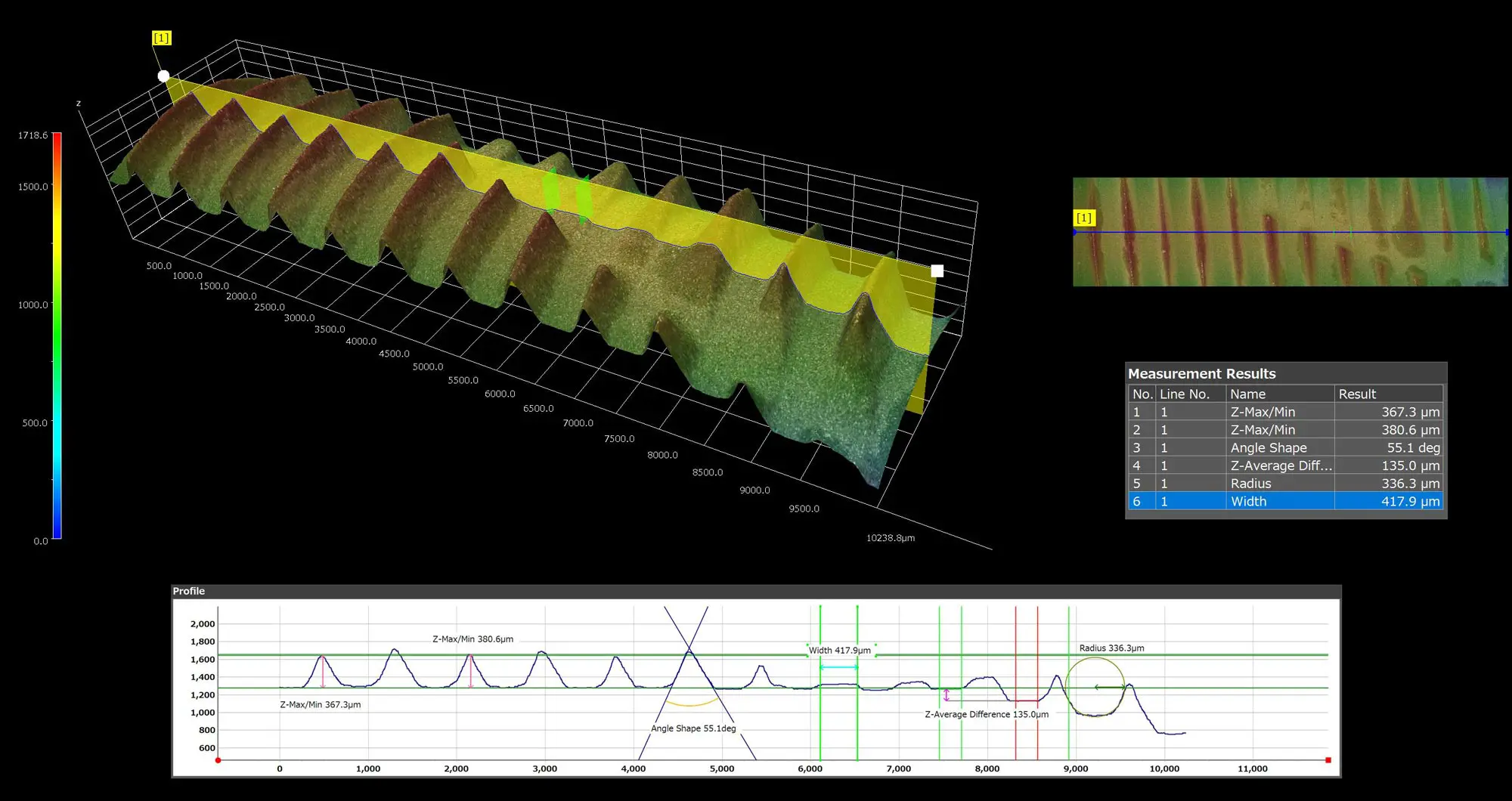

To view and measure any detail on the 3D object, just modify the profile slicer. The profile that is formed functions similarly to a virtual cross-section, enabling accurate measurements. By “drawing” a circle with three points, for example, you may easily measure height, volume, roughness, angle, or radius using the profile measurement feature.

Contamination Analyzer

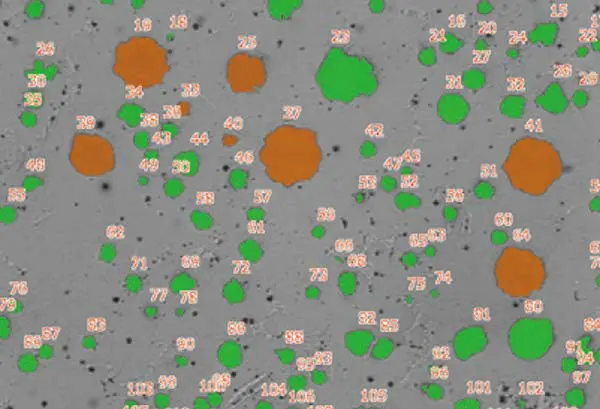

Particles are automatically detected with pass/fail judgment (ISO16232 Compliant). Advanced statistical data with histogram and frequency distribution are automatically calculated and displayed in Excel. It’s very easy to measure the shape of every particle and distinguish between dust from fiber or metal particles.



HDR Image Auto Optimisation



Explore: Lean how digital microscopy is transforming medicine, research, and manufacturing with innovative advancements, practical applications, and key challenges.

Video

Specification

■ Basic Function: Main Unit

Camera Imaging Device 2/3-inch 5.07Mega-Pixel CMOS Image Sensor Global Shutter Type
Total Pixels 2448 (H) x 2048 (V)
Effective Pixels 2448 (H) x 2048 (V)
Scanning Method Progressive Scan
Sensor Pixel Size 3.45 (H) x 3.45 um (V)
Frame Rate 50fps (max)
Recording Image Size 2448 (H) x 2048 (V)
Electronic Shutter 1~1/25000
Gain 0dB – 12dB
White Balance AUTO (One Push) / MANUAL
Image Processing Engine HDR Function Real-Time Display
Light Source Lamp Type High Intensity LED
Lamp Life 30,000 hours (Average)
Color Temperature 5700K (Typ)
Interface PC Out USB3.0 (Type B)
Stand Out Special ST-AS connection
Expansion Port USB3.0 (Type A) rear panel x2
Power Supply Voltage AC100~240V 50/60Hz
Consumption 200W
Environmental Resistance Ambient Temperature 5~40°C (41~104°F)
Relative Humidity 20~80% (No Condensation)
Storage Temperature -15~50°C (5~122°F, No Condensation)
Atmosphere Corrosive Gas Prohibited
Weight Main Unit Weight 2.5kg (7.9lb)
Camera Unit Weight 1kg (2.2lb)
Dimension

(not including projection part)

Main Unit Dimension 130 (W) x 243.6 (V) x 275 (H) mm
51.2 (W) x 95.9 (V) x 108.3 (H) inch
(Including stand base part)



■ Basic Function: STAND

Stand Base Free Angle Type
Tilt Angle Range: Right 90°, Left 60°
Center angle position lock mechanism
Tilt torsion spring mechanism
Tilt angle sensor
Stage vertical position movement mechanism
Anti vibration mechanism
Standardized transmitted lighting LED
Optional expandable lighting capability (with power supply and software control)
Motorized XY and Z axis driver mounted
Motorized Z axis Motorized (dial control for manual-like operation and software control)
Motor: 5 phase stepping motor
Resolution: 0.05um
Effective Stroke: 80mm
Motorized XY Stage Motor: 2 phase stepping motor
Effective Stroke: 50 x 50mm type or 100 x 100mm type
Transmitted light LED mounted (with black plate and clear plate)



■ PC Recommended Specification

OS Windows10 64bit
CPU intel Core i5 7th gen or better
Memory 16GB or better
Hard Drive 512GB or better (HDD/SSD)
Interface USB3.0 Type A x 4





■ Monitor Recommended Specification

Resolution 4K (3840×2160)
