- HIOKI Memory HiLOGGER LR8450
1ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
MEMORY HiLOGGER
Model:
LR8450
Maker:
HIOKI
Features
- Expandable to 120 ch with wired/plug-in units
- Record voltage output from pressure and other sensors with 1ms sampling speed
- Directly connect strain gauge and measure signals in as fast as 1ms intervals
- Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
MEMORY HiLOGGER LR8450

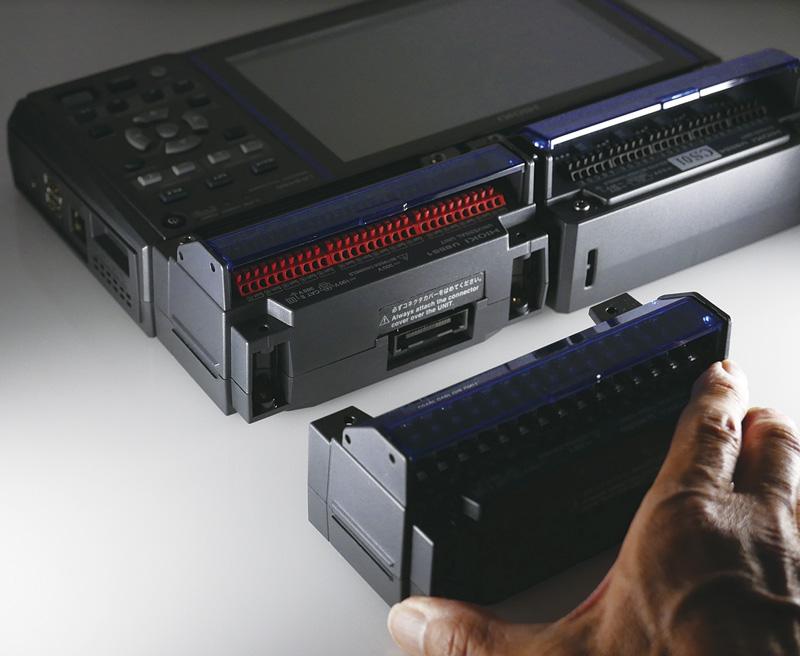

GAIN UP TO 120 CHANNELS OF INPUT SIMPLY BY ADDING A TOTAL OF FOUR PLUG-IN UNITS
SAMPLE OUTPUT FROM A VARIETY OF SENSORS, INCLUDING 1 MS PRESSURE SENSORS
Use model High Speed Voltage Unit U8553 Measures at a sampling rate of up to 1 ms. 1 ms sampling rate is the best match to measure sensor outputs with a frequency response of under 100 Hz, for example pressure and vibration sensors.
MEASURE STRAIN WITH A 1 MS SAMPLING RATE
Example: strain measurement Use model Strain Unit U8554 Connect strain gauges directly and measure at a sampling rate of up to 1 ms. Strain gauges tend to have long, thin wires that are easily broken, but that potential pitfall can be avoided by using wireless units so that wire length is minimized.

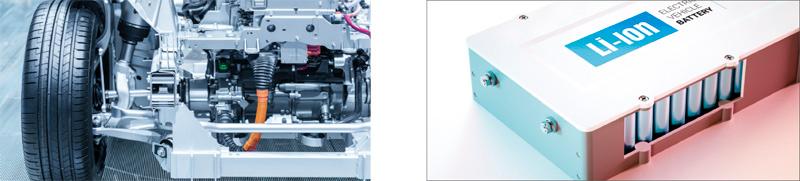

MEASURE TEMPERATURE NEAR AN INVERTER OR BATTERY
Example: temperature measurement
Use models:
Voltage/Temp Unit U8550
Universal Unit U8551
Measures at a sampling rate of up to 10 ms.
