- HIOKI BATTERY IMPEDANCE METER BT4560
HIOKI BATTERY IMPEDANCE METER BT4560
[Contact Us]
The Battery Impedance Meter BT4560 excels in quickly and precisely measuring EIS for high-capacity batteries, ideal from R&D to manufacturing. It features customizable frequency settings (0.01 Hz to 1.05 kHz) and supports Nyquist plots for detailed analysis. The LAN interface ensures easy system integration. With special probes, it measures low impedances under 1mΩ effectively, enhancing battery testing efficiency and accuracy across multiple channels.
Key Features
1.EIS measurement frequency: 0.01 Hz to 1.05 kHz
2.Simultaneous measurement of impedance, voltage, & temperature
3.Convenient evaluation application software for R&D use
4.Data compatibility with third-party equivalent circuit analysis software
5.For production lines: LAN interface & advanced multi-channel solutions
A reliable EIS measuring instrument for applications ranging from R&D to manufacturing

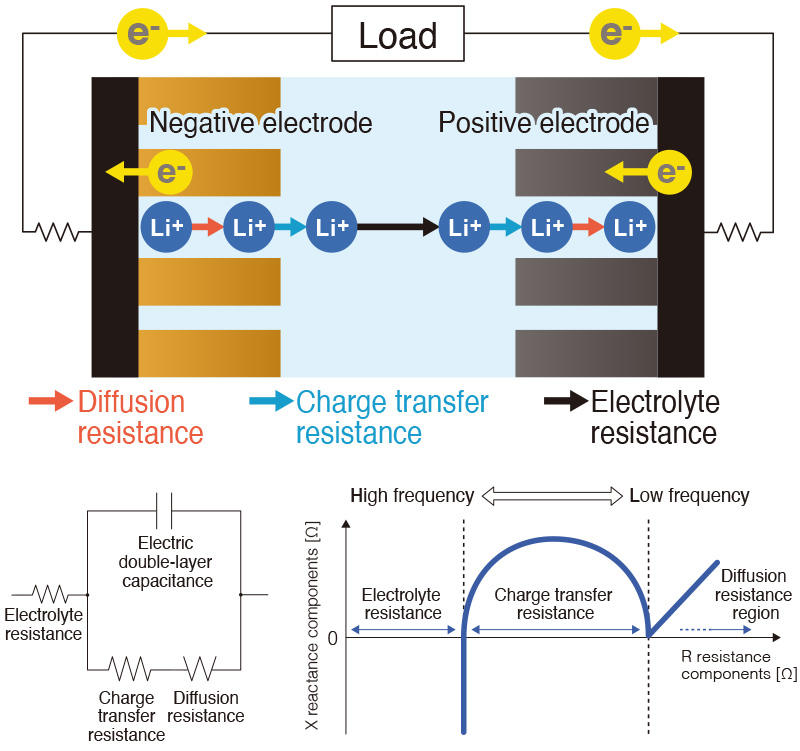

Manage Charge Transfer Resistance (Rct), Electrolyte Resistance (Rel), and Diffusion Resistance to improve the quality of battery cell inspections
- Set your own measurement frequency between 0.01 Hz and 1.05 kHz
- Use low frequencies to measure charge transfer resistance and diffusion resistance
- Use high frequencies to measure electrolyte resistance and welding resistance
- Create Nyquist (Cole-Cole) plots with bundled application program
- Use equivalent circuit analytic software to analyze internal battery defects
Create Nyquist plots instantly
Nyquist plots (Cole-Cole) of Lithium-Ion batteries can provide invaluable insights into the battery chemistry and aid in research and development. This type of analysis has often been complicated, time-consuming, and expensive.
Using Hioki's BT4560 Battery Impedance Analyzer connected to your PC, you can perform a frequency sweep quickly and easily, with the results plotted in real-time.
Specification
| Allowable input voltage | Up to 5 V | ||||||
| Measured items | Impedance, voltage, temperature | ||||||
| Impedance measurement | Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle) Frequency: 0.01 Hz to 1050 Hz Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms |
||||||
| Voltage measurement | Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW) | ||||||
| Temperature measurement | Range: -10.0°C to 60.0°C, measurement time: 2.3 s | ||||||
| Basic accuracy | Z: ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C) | ||||||
| Functions | Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets) | ||||||
| Interfaces | LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) | ||||||
| Power supply | Rated supply voltage: 100 V to 240 V AC Rated supply frequency: 50 Hz/60 Hz Rated power 80 VA max |
||||||
| Dimensions and weight | Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.) | ||||||
| Included accessories | Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1 | ||||||
