2000 A AC/DC Detachable Current Sensor System that Delivers Stable, Long-term, and Accurate Measurements in Dramatically Changing Environments

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7742 is a 2000 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing. Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger.

CAT IV 600 V

AC/DC Auto-Zero Current Sensor

Model:

CT7742

Maker:

HIOKI

Download Materials

Brochure

Features

• Accurately measure and record even when the temperature changes

• Ideal for site inspections by using detachable Display Unit

• Four output formats to output data to loggers or other devices (via Display Unit) WAVE, RMS, PEAK, Hz

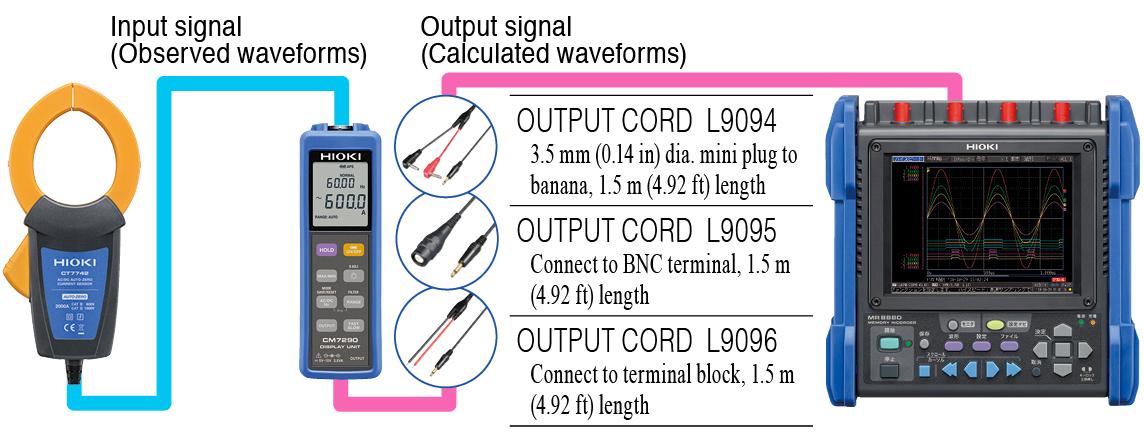

Connect to Recorders, Data loggers, and Oscilloscopes

Must be paired with the Display Unit CM7290 or CM7291 to operate as a standalone unit. Add an output cord to deliver signals to a data logger or Memory HiCorder for the following types of output:

• A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
• An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
• An analog signal generated by detecting the current waveform’s peak value (using PEAK mode for peak output
• An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
