Mohno Dispenser ND

A standard model Mohno Dispenser ND

The ND from Mohno Dispenser is a versatile standard model designed to handle a wide array of fluids, ranging from low-viscosity liquids to high-viscosity substances. This model is compact and lightweight, making it suitable for installation on smaller robots.

It excels in assembly reproducibility during maintenance, reducing the time required for re-teaching robots. Additionally, the ND Series significantly minimizes residual fluids, helping to cut costs by reducing material loss.

ND

Maker:

HEISHIN Ltd.

Features

• Instantaneous Dispensing: Capable of dispensing even high-viscosity fluids up to 1,000,000 mPa·s, ensuring rapid and efficient application.

• High Precision: Provides accurate and consistent dispensing with non-pulsating, metered conveyance, ensuring a stable flow rate and shape, which improves product quality.

• Long-Term Stability: Maintains consistent performance over extended periods, unaffected by changes in fluid viscosity or residual fluid amounts, reducing the need for frequent adjustments.

• Easy Control: Flow rate is directly proportional to rotor speed, allowing easy adjustments to match application needs without changing cycle times.

• Material Efficiency: Accurate control of flow rate prevents over-application, reducing material waste and cutting costs.

• Fluid Control: After dispensing, the rotor reverses slightly to draw fluid back into the needle, preventing dripping and ensuring clean and precise application.

• Versatility: Capable of handling a variety of fluids, including silicone resin, epoxy resin, UV-curing resin, silicone oil, anti-cementation material, and lubricants and more.



• Compact Design: Suitable for integration with small-scale robotic systems.

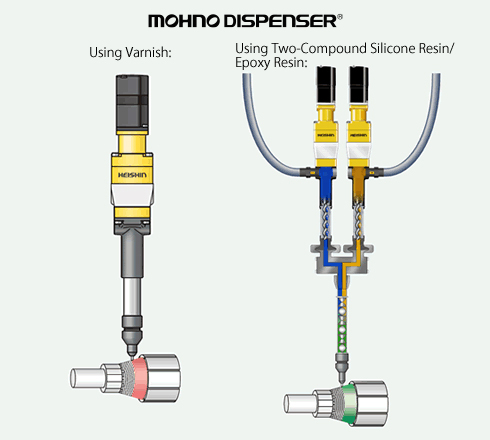

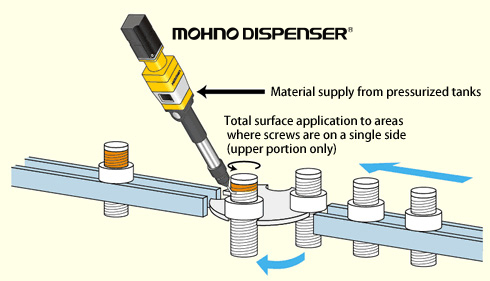

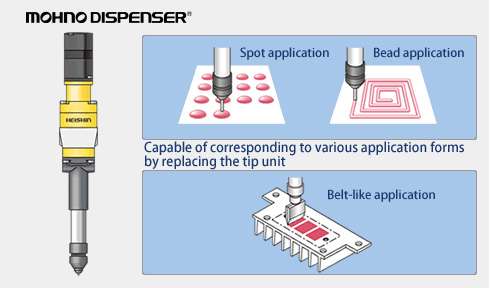

Applications:

• Automotive: Ideal for applying liquid gaskets, filling syringes, and precise application on PCBs.

























• Electrical and Electronics: Suitable for various adhesives and lubricants, enhancing precision in electronic component manufacturing.





































Learn Structure and Principle of Mohno Dispenser HERE

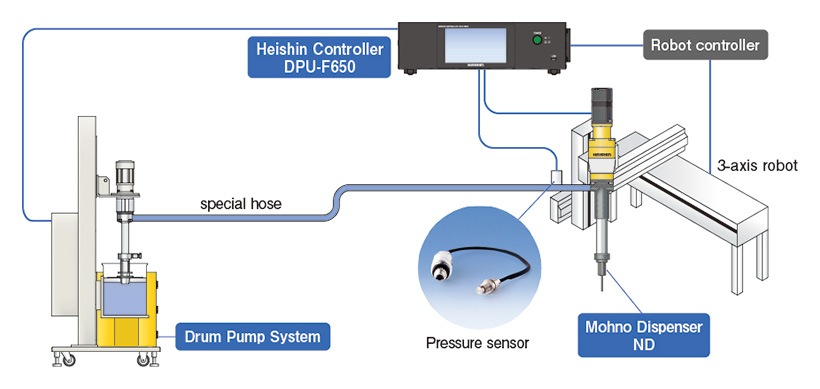

Application Flow

Video

Specification

Type Flow rate (mL/s) Filling error (mL) Motor capacity (W) H (mm) W (mm) L (mm) Inlet Weight (kg) Casing volume (mL)
3ND04G15 0.03 – 0.5 ±0.01 50 361 53 62 2-Rc3/8 2.0 22
3ND06G15 0.1 – 2.0 ±0.02 50 391 53 62 2-Rc3/8 2.0 22
3ND08G15 0.2 – 4.0 ±0.04 100 471 62 76 2-Rc1/2 3.1 67
3ND10G15 0.4 – 9.0 ±0.08 100 502 62 76 2-Rc3/4 3.4 73
