GW INSTEK Multi-function Programmable Oscilloscope MPO-2000 series

Python Script Executable Oscilloscope

GW Instek launches the MPO-2000 series, which is named after the abbreviation of Multi-function Programmable Oscilloscope. In addition to being an oscilloscope, it also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply.

In addition to the five-in-one multi-functional architecture, we innovatively introduced the Python script function into the MPO-2000, so that users can conduct program control of a small, automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO.

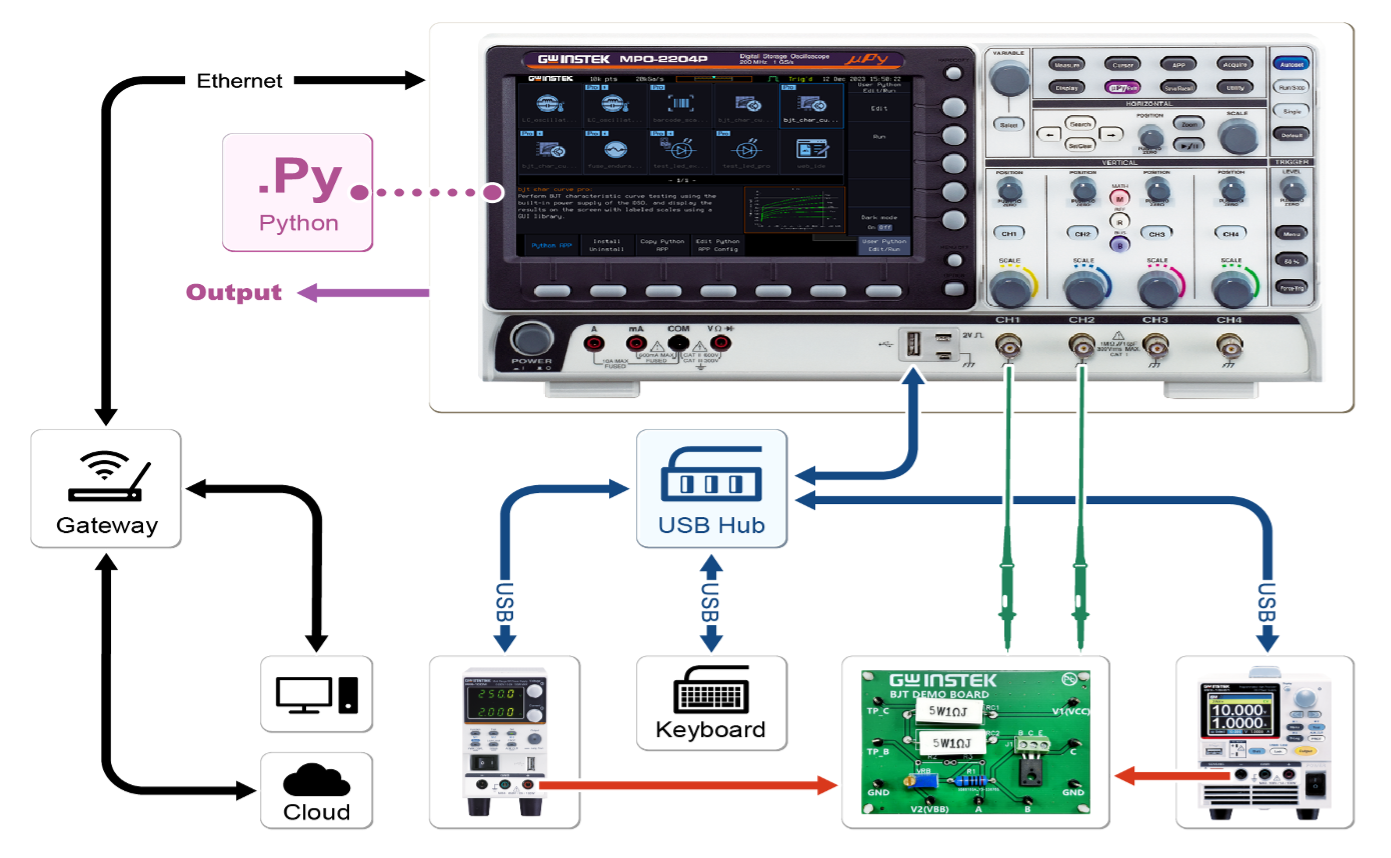

The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P).In terms of bandwidth, the Basic version is 100MHz and the Professional version is 200MHz and the main difference is that the Professional version provides larger program memory and more system resources to achieve the ability to process longer waveform data. The series provides USB CDC device control to meet the needs of multi-unit collaborative tests, and a Python GUI library is provided to allow users to modify the original built-in Python APP or write their own programs that present curve drawing and GUI operation menus to be packaged into Python programs developed by users.
