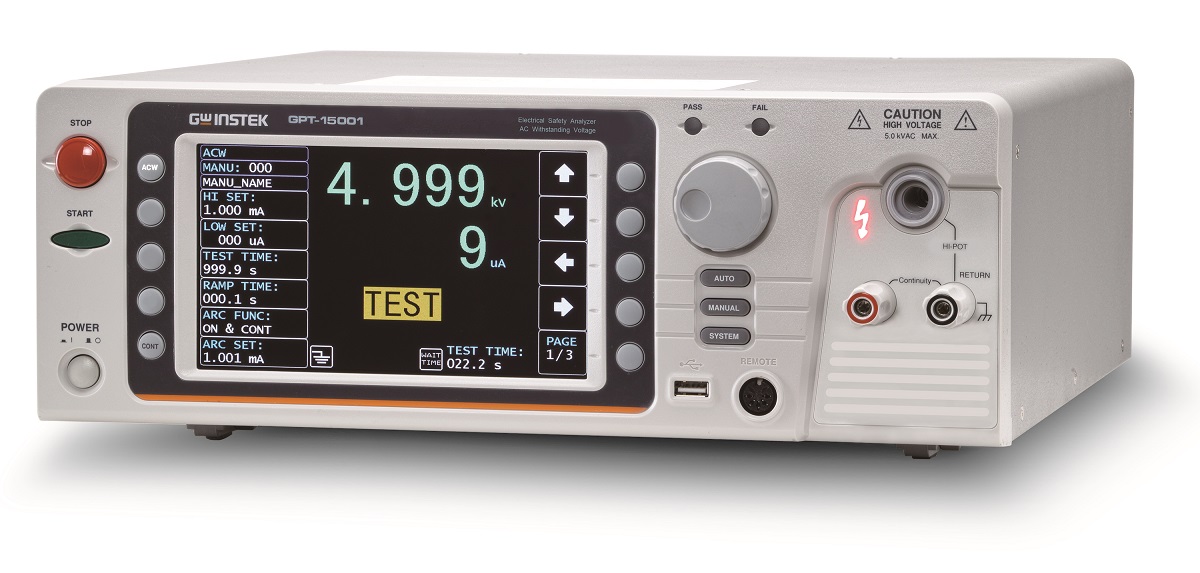

GW INSTEK Electrical Safety Analyzer GPT-15000 Series

Intelligent Safety Analyzer

The GPT-15000 series safety analyzer, featuring a robust 500VA output capacity. As the first safety analyzer worldwide to comply with the IEC 61010-2-034 standard, it establishes new safety benchmarks for high-voltage and insulation resistance testing equipment.

This standard mandates strict design requirements for both hardware and software interfaces to ensure user protection and provide necessary warnings during operation.

The GPT-15000 series delivers advanced functionality while prioritizing safety, making it an exceptional choice for professionals in demanding testing and measurement environments.

Electrical Safety Analyzer

Model:

GPT-15000 Series

Maker:

Good Will Instrument Co., Ltd.

Features

• 500VA AC Test Capacity (short circuit current > 200 mA)

• Comply with IEC 61010-2-034

• 7”TFT LCD

• Manual / Auto Mode

• RMS Current Measurement

• Zero Crossing Turn-on Operation

• Controllable Ramp-up & Ramp-down Time

• Capacitive Load Testing Capability up to 47μF

• Statistics & Analysis Function

• Sweep Function for DUT Characteristic Analysis

• Convenience Listed AUTO mode easy to read result & judge

• Internal Storage & USB Storage available

• Barcode Function available

• Setting Data Export / Import

• Rear panel output available

• Interface: RS-232C, USB host/device, Signal I/O and option GPIB or LAN

• Universal power input

Video

Line Up

GPT-15004 AC/DC/IR/GB Electrical Safety Analyzer
GPT-15003 AC/DC/IR Electrical Safety Analyzer
GPT-15002 AC/DC Electrical Safety Analyzer
GPT-15001 AC Electrical Safety Analyzer
