Energy-Efficient Vibration Testing System Exciting Force from 16kN to 30kN
The FX Series Vibration Testing System, featuring an advanced energy-saving drive system. With the integration of ECO Vibe Advance, this series significantly reduces power consumption, making it an environmentally friendly and cost-effective solution for your vibration testing needs.
Experience cutting-edge efficiency without compromising on performance.
Vibration Testing System
Model:
FX Series
Maker:
EMIC CORPORATION
ECO Vibe Advance: Superior Energy-Saving Performance
The ECO Vibe Advance, integrated into our FX Series Vibration Testing System, offers remarkable energy-saving capabilities and advanced performance features.
Energy-Saving Performance

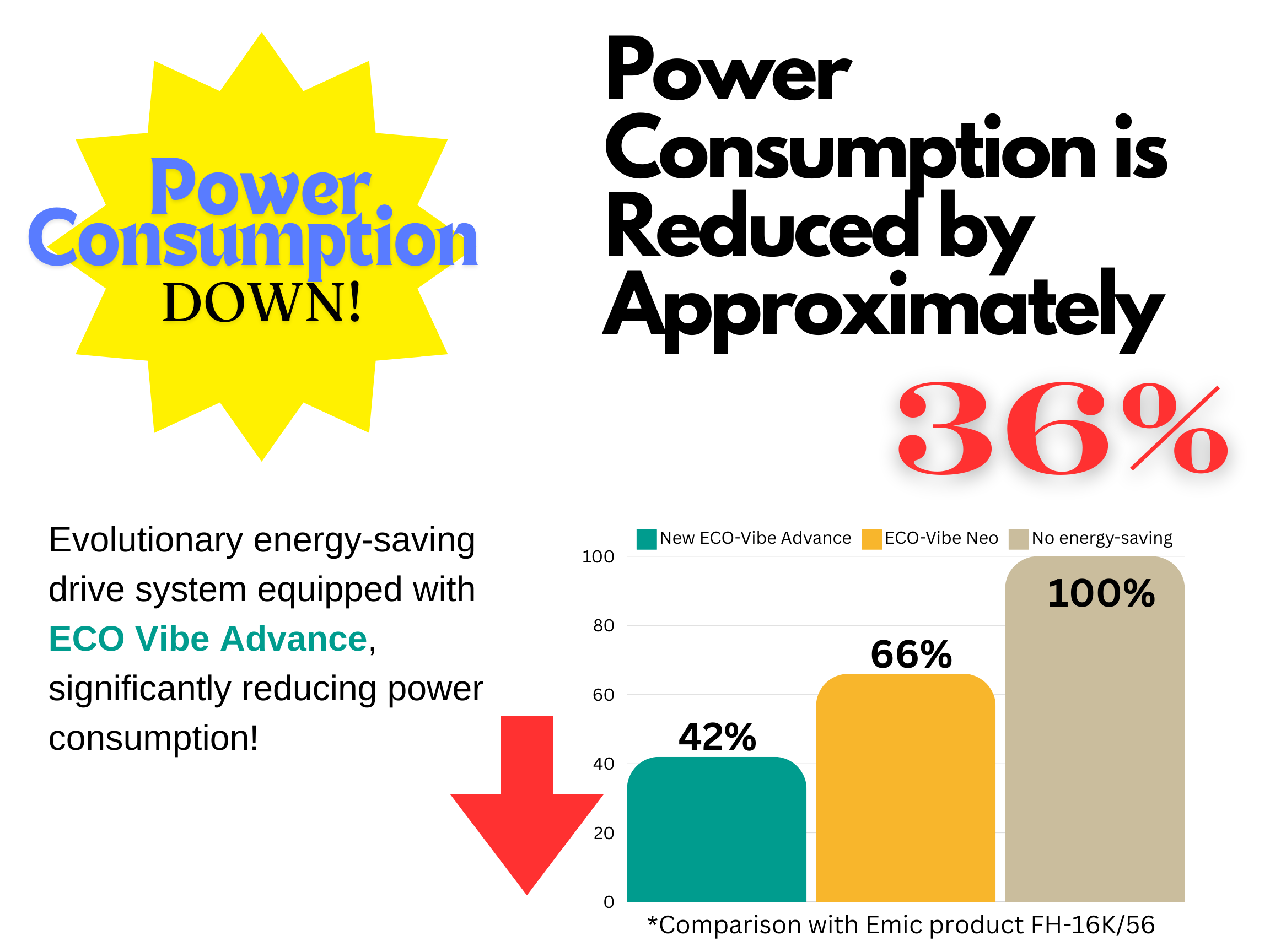

• Significant Power Reduction: Compared to the ECO Vibe Neo, the ECO Vibe Advance reduces power consumption by up to 36% in normal mode (at 20% excitation force output).
• Enhanced Maximum Acceleration: Improved coil winding techniques and a 10-15% reduction in moving part weight result in higher maximum acceleration performance.
• Improved Stability: The excitation mode selection function ensures a stable magnetic field, enhancing overall system stability.
• Better Noise Reduction: Optimization of the cooling blower’s operation significantly improves the system’s quietness.
Durability Enhancements
• New Feeder Design: A new feeder design reduces the risk of breakage, ensuring reliable power supply to the armature coil.
• Durable Linear Guide: The support mechanism for moving parts now features a more durable linear guide, enhancing longevity.
• Heat-Resistant Rubber Cover: A newly designed rubber cover offers excellent durability and heat resistance.
Noise Reduction
• Optimized Blower Control: By monitoring the internal temperature, the blower’s rotational speed is controlled, significantly reducing both power consumption and noise levels.
Specification
Model | FX-16K/56 | FX-26K/60 | FX-26K/60 |
---|---|---|---|
Excitation Force Sine |
16.0 kN0-p | 26.0 kN0-p | 35.0 kN0-p |
Excitation Force Random |
16.0 kNrms | 26.0 kNrms | 35.0 kNrms |
Excitation Force Shock |
35.2 kN0-p | 57.2 kN0-p | 77.0 kN0-p |
Frequency Range | ~3000 Hz | ~2500 Hz | ~2200 Hz |
Maximum Acceleration | 1000 m/s2
(Note 1) |
1000 m/s2
(Note 1) |
1000 m/s2
(Note 1) |
Maximum Velocity | 2.3 m/s | 2.3 m/s | 2.0 m/s |
Maximum Displacement | 56 mmp-p | 60 mmp-p | 60 mmp-p |
Maximum Payload | 200 kg | 400 kg | 400 kg |
Power Consumption | 27.9 kVA | 35.3 kVA | 53.3 kVA |
Moving Part Mass | 12.8 kg | 23.0 kg | 28.0 kg |
Allowable Eccentric Moment | 500 N・m | 700 N・m | 900 N・m |
Cooling Method | Air-Cooling | Air-Cooling | Air-Cooling |
Vibration Generator Model | 916-X | 926-X | 936-X |
Power Amplifier Model | 369A-0403-16X | 369A-0605-26X | 369A-0606-36X |
Console Rack Model | CRD-1700-16X | CRD-2000-26X | CRD-2000-36X |
Moving Part Mounting Dimensions | ⌀230 mm | ⌀270 mm | ⌀330 mm |
Vibration Generator Dimensions | 1005W×866H×701D mm | 1232W×1034H×865D mm | 1336W×1152H×971D mm |
Console Rack Dimensions | 554W×1776H×1010D mm | 554W×1900H×1010D mm | 554W×1900H×1010D mm |
Blower Dimensions | 908W×1681H×707D mm | 908W×1681H×707D mm | 1094W×1856H×869D mm |
Vibration Generator Mass | 1200 kg | 2100 kg | 3500 kg |
Console Rack Mass | 440 kg | 550 kg | 600 kg |
Blower Mass | 220 kg | 220 kg | 325 kg |
Lower Frequency Limit: Depends on the vibration measurement equipment used.
Export Regulations: When exporting the vibration testing system overseas, export approval from the Ministry of Economy, Trade and Industry (METI) may be required depending on specifications such as excitation force. Please contact us for more details.
Note 1: The maximum acceleration is limited and should not be considered a theoretical value.
