KOKUSAI Electric Servomotor Drive Shock Tester

Kokusai Electric Servomotor Drive Shock Tester

This fully electric servomotor drive shock tester is perfect for shock test applications within battery testing. The highlight of the servomotor is its positioning controllability. Kokusai has a long history of manufacturing servo drive dynamic balancing machines and offers servomotor control testers with high precision controllability, high motion response and high ecological performance.

Electric Servomotor Drive Shock Tester

Model:

HST Series

Maker:

Kokusai

Download Materials

Shock Test Applications for Battery Testing

Features

I. Real-life simulation

II. Quick Start (Time Efficient)

III. Eco-Friendly (Low Consumption)

Specifications

HST150/60 Impact Type

Table Size	600 x 600 mm
Max. Payload	150 kg
Shock Duration	Max. 15 ms
Max. Acceleration	150G peak – 6ms @ 50kg payload 50G peak – 11ms @ 50kg payload
Respected Standards	ECE-R100 P2 UN38.3 GBT31467.3

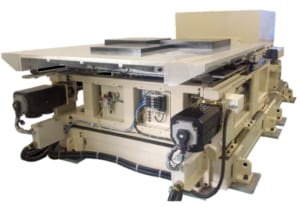

HST500/150 Impact Type

Table Size	1500 x 1500 mm
Max. Payload	500 kg
Shock Duration	Max. 25 ms
Max. Acceleration	150G peak – 6ms @ 150kg payload 50G peak – 11ms @ 150kg payload
Respected Standards	ECE-R100 P2 UN38.3 GBT31467.3

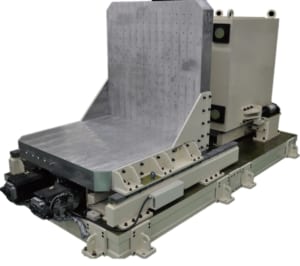

HST1000/1800 Impact Bulk-head Type

Table Size	1800 x 1800 mm
Max. Payload	1000 kg
Shock Duration	Max. 20 ms
Max. Acceleration	150G peak – 6ms @ 350kg payload 50G peak – 11ms @ 350kg payload
Respected Standards	ECE-R100 P2 UN38.3 GBT31467.3
