- ECG KOKUSAI All-in-One Winding Test System WTX-type Ⅱ
Integrated Winding Test System
>>Contact Us
U.S.-based sales, and delivery available.
The WTX-typeⅡ Intelligent Controller is a comprehensive motor coil testing system that integrates impulse testing, DC resistance measurement, AC hi-pot, and insulation resistance testing into one automated platform. Supporting up to 6-lead coil testing, 18-step programmable sequences, and RS-232C/external I/O control, it enables efficient multi-test automation for motor, stator, and armature production lines.
Features

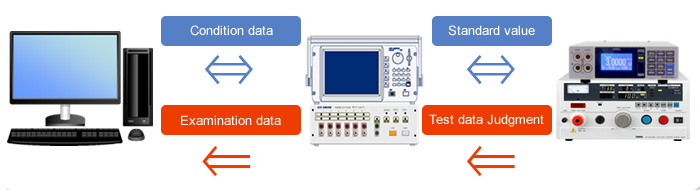

- An impulse test machine (DWX) is used as a controller, and an interchange machine (WTX), resistance meter and Hi pot tester are controlled. Automatic examination is possible.
- The test cables are changed into 6 from 4 examination cables.
- A setup of each circuit of arbitrary Hi-Lo is possible.
- The number of the maximum steps is changed into 18 steps from 14 steps.
- Condition data of 49 models in the main part has been changed to 99 models・The CF models has been changed to 50 models.
- Interlock functional loading
Overview
| Operation manual | 1 | RS-232C cable | * | Test machine connecting cable | 1 | |||
| Test cable | 6 | Controller power cable | 1 | Cable of resist pressure test | 1 | |||
| Resistance test cable | 1 | Earth cable | 1 | Control BOX | 1 | |||
* Required Amount
Some items may not be included depending on the device configuration.
■Specification and a design may be changed without a preliminary announcement for improvement reasons etc.
■There may be difference in a color, textures, etc. may be on the photograph which are written on the catalog during printing.
■Although an effort is made to indicate exact information about the contents of this catalog, if there should be a point of advice, such as a clerical error, please give a notice to sales promotion division of our company.
Specification
| WTX-typeⅡ | Number of the maximum steps | 18 step |
| Corresponding procedure | RS-232C control and external I/O control | |
| Impulse tester | Applied voltage | DWX-01A(50V～1000V) DWX-05A or 05PD(0.5kV～5.0kV) |
| Judgment method | A comparison system with a master waveform | |
| Examination step・Test time | 6 step 0.5 sec/1 step |
|
| Number of memory of master waveform | 700 models in CF memory card | |
| Corresponding procedure | RS-232C control and external I/O control | |
| DC resistance examination | Corresponding model | HIOKI：RM3545/RM3544/3541 |
| Examination step・Test time | 6 step 0.5 sec/1 step |
|
| Corresponding procedure | RS-232C control | |
| Insulation resistance test Withstand voltage test | Corresponding model | KIKUSUI：TOS-5200/TOS9300 series Others: External I/O control option |
| Examination step・Test time | 6 step Arbitrary time setup |
|
| Corresponding procedure | RS-232C control or external I/O control | |
| Dimension・Weight | 342(W)×120(H)×399(D)(*Excluding protruding parts) ・ Approx.7.0kg | |
