Digital force gauge RZE Series
RZE Series is a user-friendly, new model digital force gauge Series that significantly improves upon the functions of traditional digital push-pull gauges. This state-of-the-art device is engineered with enhanced features for the modern professional, including USB connectivity for data output and charging capabilities. In terms of operation, it boasts a range of user-friendly functions like adjustable sampling speed, easy switching between three measurement units, direct printer output, and a one-touch screen inversion feature.
This digital force gauge is designed to exceed traditional expectations. Its ergonomic shape and strategically placed operation buttons ensure a comfortable fit in hand, offering an intuitive user experience. This device is not just a tool, but a leap forward in digital force measurement technology, catering to the needs of professionals in various industries. Whether it's for quality control, laboratory testing, or industrial applications, this digital force gauge is a versatile and essential instrument for accurate force measurement.
Digital force gauge RZE Series
Model:
RZE Series
Maker:
Aikoh Engineering Co., Ltd.
Examples of use
- Measurement of operating force(Switch, lever, door, drawer)
- Measurement of strength
- Measurement of peeling force
Specification
| Model | RZE-1 | RZE-2 | RZE-5 | RZE-10 | RZE-20 | RZE-50 | RZE-100 |
| Rated
capacity |
10N (1Kgf) |
20N (2Kgf) |
50N (5Kgf) |
100N (10Kgf) |
200N (20Kgf) |
500N (50Kgf) |
1000N (100Kgf) |
| Min.
display unit |
0.001N (0.1gf) |
0.01N (1gf) |
0.1N (10gf) |
||||
| Accuracy | ±0.2％F.S. | ||||||
| Sampling
cycle |
1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable | ||||||
| Display
update interval |
1, 2, 5, 10, 20 times/sec. selectable | ||||||
| Display | LCD, signed, 5 digits | ||||||
| Output | USB output Analog voltage ±2V / F.S. Printer output Motorized stand control External connection hold |
||||||
| Mass | Approx. 375g | ||||||
| Power
supply |
Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC) | ||||||

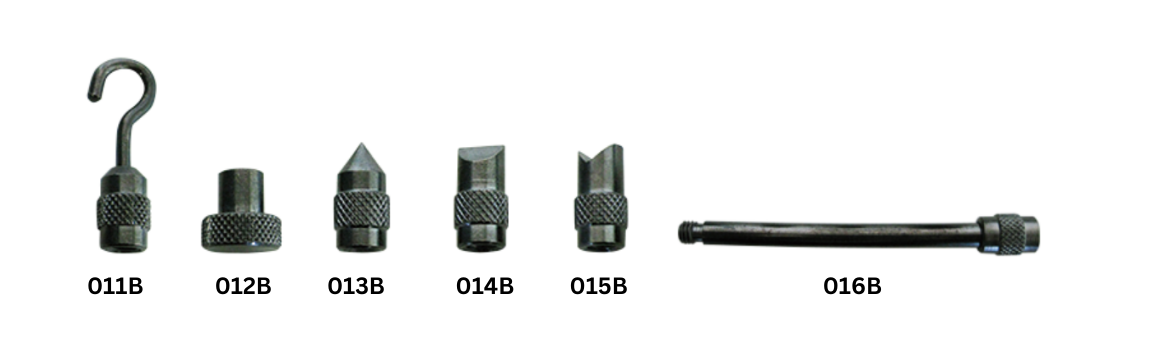

| Standard
accessories |
* For the RZE-100 model, the 011B component features a hook diameter of φ4.
* All components for the RZE-1 model are crafted from high-quality aluminum. |
||||||
| Options | Output cable, software RZ-3000, test stand, printer BL2-58SNWJC | ||||||
| Optional
cables |
I/O cable RZE-OP-1, I/O cable RZE-OP-2, Mitutoyo DP-1VR printer cable RZE-OP-3, Sanei Electric line thermal printer cable RZE-OP-4 RZE-OP-1: For Stand control function only |
||||||
