Compact Solar Simulator　

A compact solar simulator that is low-priced while delivering high performance!

This low-priced, high-performance compact solar simulator achieves Class ClassAAA for all categories of “Non-Uniformity of irradiance (80 mm2 area)”, “spectral match”, and “Temporal instability of irradiance” prescribed by IEC 60904-9 (Edition3.0).

Because the design allows for transport, installation, and lamp replacement that do not require performance adjustments by an engineer, introduction costs and running costs are low.

This is the perfect model for persons who want to perform simplified evaluations of solar cells using a high-performance light source but are unable to install a large and expensive solar simulator!

Compact Solar Simulator　XI-05A1V1-L

Model:

XI-05A1V1-L

Maker:

SERIC Ltd.

■Main features■

High uniformity!
IEC 60904-9 Class A （±2％） for 80 mm square uniformity.
IEC 60904-9 Class B （±5％） for 100 mm square uniformity.
IEC 60904-9 Class C （±10%） for 156 mm square uniformity.
Spectral match that is highly similar to natural sunlight!
IEC 60904-9 Class A（±25％） for Spectral match
Temporal instability of irradiance
IEC 60904-9 Class A （±2％）　for Long Term Instability

Achieves the irradiance (1kW/㎡) and brightness (100,000Lx)
Can irradiate with highly directional light!
Consult with us if you require light with a high degree of parallelism.
Can be set up without an engineer!
No transport or installation costs are required. Maintenance-free!
Compact size makes it easily portable! （Light source unit: Approx. 11 kg）
External dimensions: W490 × D220 × H220 mm
Multiple filter type options are available!
Users can select a type of filter with different wavelength ranges according to the purpose of the test.

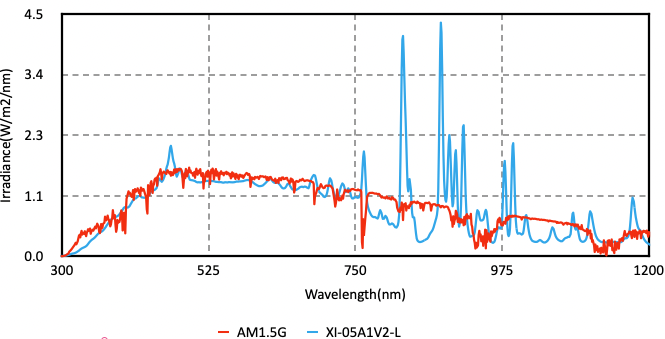

■Spectral distribution■

■Product introduction（youtube）■

■Specifications■

Model		XI-05A1V1-L
Input power		1φ100V, 50/60Hz
Power source capacity		1000VA
Maximum input current		Approx. 10 A
Lamp		500W xenon lamp
Average lamp lifetime		Approx. 1,000 hours
Effective irradiated area		～156mm
Irradiation distance		500mm
Irradiance		1000W/㎡
Spectral match		IEC 60904-9 Class A
Non-uniformity of irradiance		80mm IEC 60904-9 Class A
		100mm IEC 60904-9 Class B
		156mm IEC 60904-9 Class C
Temporal instability of irradiance		IEC60904-9 ClassA
Irradiance adjustment range		60 – 100% (Maximum irradiance = 100%)
Service temperature range		0 ～ 30℃
Service humidity range		10 ～ 90％

* The specification of 100,000 Lx irradiation does not comply with IEC60904-9.

■Precautions for use

Be sure to read the instruction manual prior to use.
Specifications may be changed without notice for the purpose of improvements.

■Filter options

Users can select a type of filter with different wavelength ranges according to the purpose of the test.

Filter A

High similarity to natural sunlight in the visible light (370 – 780 nm) range

Filter B

High similarity to natural sunlight in the ultraviolet to visible light (300 – 780 nm) range

Filter L

Simulates the wavelength range from 300-1200nm, accurately reproducing the outdoor environment.
