ATSENSE - Flow Meter - FM-110
[Contact Us]
This advanced fuel flow measurement device offers precise monitoring through three modes: instantaneous, time-averaged, and total flow. It provides rapid 1ms analog updates, ensuring accurate detection of flow variations and compatibility with throttle opening checks. The device allows easy switching among eight display modes for diverse data insights. With automated time-up functions, you can preset measurement durations, enhancing efficiency. Experience minimal pressure loss with this reliable flow detector.
Introduction to Functions
【High-speed analog output】
Updated analog output every 1ms at high speed. Rapid variations in the fuel flow are measured with precision. And it can be used in connection with measurements to verify correspondence with the throttle opening.
【Display switching】
You can switch and view different measurement displays even when taking measurements. Using the “MONI” key, you can conveniently switch the display between 4 patterns of the 8 different types, the instantaneous flow, the average flow of total time, the total flow, the total time, the previous total flow, and the previous total time, as well as the pressure and temperature.

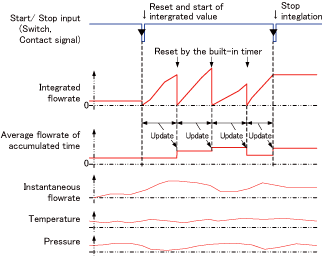

【Automatic measurement using the time-up function】
It is possible, for example, to set the total time in advance as 20 seconds and make repeated measurements of the average flow over 20 seconds. Data for the instantaneous flow, temperature, and pressure are continuously measured in real time.
FM-110 Vehicle-mounted flow meter
| Display | |
| Display method | 16-digit x 2 rows, character height approx. 5.6mm, character LCD, green backlight |
| Range of display and measurement | |
| Instantaneous flow and average flow of total time |
-99.999 to 999.999((L, mL, kg, g)/(hour, minutes)) |
| Total flow | -99999.999 to 999999.999(m)L/(k)g |
| Pressure | 0.0 to 1000.0kPa |
| Temperature | -20.0 to 80.0℃ |
| Display refresh time | 0.1s/1.0s |
| Accuracy | Excludes the accuracy of the sensor |
| Instantaneous flow and average flow of total time |
±50ppm (RD) ±1digit |
| Total flow | ±1digit |
| Pressure | ±0.5kPa |
| Temperature | ±0.5℃ |
| Signal input | |
| Number of inputs | 1 input (HR10A-10R-12S(71)(Hirose Electric Co., Ltd.)), HR10-10P-12P(73) plug |
| Supply voltage for the sensor | 12V, 100mA (max） |
| Flow sensor | |
| Output signal format | A/B phase / UP/DOWN |
| Trigger level | 2.5V (74HC14 equivalent) |
| Voltage resistance | -10V to +15V |
| Pull-up | Pulled up to 5V by 10kΩ |
| Input frequency | 50kHz |
| Temperature sensor | |
| Element | Pt100, 3-wire system, excitation current 0.2mA |
| Pressure sensor | |
| Input range | 1-5V (1V = 0kPa） |
| Contact input | |
| Number of inputs | 2 inputs (screwless terminal block ML-4000 (Sato Parts)) |
| Functions | Start, stop and reset for the total measurement of the 0V terminal and during a short circuit. |
| Trigger level | 2.5V |
| Voltage resistance | -10V to +80V |
| Pull-up | Pulled up to 12V by 4.7kΩ |
| Pulse output | |
| Number of outputs | 1 output (BNC receptacle) |
| Output items | 1/10/100/1000P/mL: single pulse output for each 0.1mL increase in total flow |
| Output voltage | 0-5V (0.5V (max) voltage drop at 1kΩ load) |
| Analog output | |
| Number of outputs | 5 outputs (BNC receptacle), instantaneous flow, total flow, average flow of total time, pressure, and temperature |
| Refresh time | Instantaneous flow: 1ms, total flow (1ms for each measurement taken), and average flow of total time (for each measurement taken), pressure and temperature : 50ms |
| Output range | ±10V (using D/A 16-bit) |
| Accuracy | Instantaneous, total, and average flow of total time: ±0.1% (FS) Pressure: ±0.15% (FS) Temperature: ±0.6% (FS) |
| Allowable load resistance | 10kΩ |
| Communication | |
| Interface | USB mini-B (output of display values, and receiving at the PC side using general-purpose software) |
| General specification | |
| Insulation | Power supply input/sensor signal input and contact input/analog output and pulse output |
| Power supply input voltage (power) | DC9V to 32V, 5W (max) |
| External dimensions (mm) | W: 140 H: 40 D: 100 (excluding projecting parts) |
| Weight | Approx. 480g |
| Operating temperature and humidity range | 0 to 40℃/85%RH or less (with no condensation) |
| Accessories | AC adaptor (1), adhesive rubber feet (4), DC plug cable with a lock (1) and without a lock (1) |
