Ultraportable Spectrum Analyzer

The Anritsu Spectrum Master™ MS276xA family (MS2760A & MS2762A) delivers ultraportable, USB-powered spectrum analyzers with broadband coverage up to 170 GHz.

Featuring Anritsu’s patented NLTL technology, these analyzers combine compact size with top-tier performance, including wide dynamic range, fast sweep speed, and high amplitude accuracy. Perfect for mmWave, 5G, automotive radar, radio astronomy, and antenna testing.

Ultraportable Spectrum Analyzers

Model:

MS2760A

Maker:

Anritsu

Download Materials

Catalog

Description

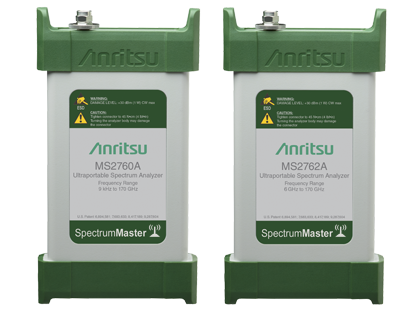

Ultra-portable. Ultra-broadband. The Spectrum Master™ MS276xA family of ultraportable spectrum analyzers is the first solution of its kind to provide continuous coverage to 170 GHz. This family now offers:

〇The Spectrum Master MS2760A models: providing full broadband coverage from 9 kHz to 170 GHz with excellent dynamic range and DANL performance.

〇The Spectrum Master MS2762A models: providing increased dynamic range and DANL performance than the Spectrum Master MS2760A models for the most demanding sensitivity requirements, these units frequency coverage range is from 6 GHz to 170 GHz.

The Spectrum Master MS2760A and MS2762A solutions deliver the best-in-class price/performance ratio unmatched by traditional benchtop instruments. The Spectrum Master™ MS276xA series are pocket-sized, yet big on performance with leading dynamic range, sweep speed, and amplitude accuracy. The ultraportable size of these instruments enables a direct connection to almost any DUT, eliminating the need for lossy, expensive cables. This enables you to more efficiently advance your technology development and reduce your time to market.

Utilizing Anritsu’s patented nonlinear transmission line (NLTL) technology – the same technology that Anritsu’s world-class vector network analyzers use – the 145 GHz and 170 GHz models are the world’s first handheld, millimeter-wave spectrum analyzers to provide broadband, continuous coverage from 9 kHz to 170 GHz and break through the 110 GHz barrier. Having frequency coverage in to the higher bands enables research and development in the entire D band spectrum as well as advanced millimeter-wave applications like radio astronomy, automotive radar, antenna beam pattern testing, and more.

The Spectrum Master MS276xA family are all USB-powered and controlled from a Windows-based PC, laptop, or tablet, making them uniquely flexible for use in the lab, on the manufacturing floor, or even in the field.

Industries

Automotive Radar

Satellite Communications

Radio Astronomy

Wireless Backhaul

Antenna Beam Pattern Testing

Features

First portable spectrum analyzer to provide continuous frequency coverage to 170 GHz
Broadband mmWave capabilities for radio astronomy, automotive radar, wireless backhaul, 802.11ad, satcom, and more
Ultraportable form factor enables measurements right at the device under test
Measure: channel power, adjacent channel power, occupied bandwidth
Patented NLTL technology provides > 100 dB dynamic range
-141/-136/-129/-122 dBm DANL to 90/110/145/170 GHz ( Spectrum Master MS2762A)
Up to 6 traces, 3 trace detectors, and 12 markers
Standard three-year warranty

Low Noise Amplifiers

These low noise amplifiers (LNAs) are specially designed to supplement the performance of the MS276xA ultraportable spectrum analyzers. With approximately 28 dB of gain, these LNAs will improve sensitivity by approximately 20-22 dBm in the frequency range from 18 to 42 GHz.

Model Number	Description
2000-1929-R Fits models MS276xA-0050 MS276xA-0070	Frequency Range: 18 – 42 GHz Gain: 28 dB Noise Figure: 4 dB RF Connector: V(m) – V(f) output Max RF input level: -5 dBm, (0 dBm damage level) Specification temperature: +25°C
2000-1930-R Fits models MS276xA-0032 MS276xA-0044	Frequency Range: 18 – 42 GHz Gain: 28 dB Noise Figure: 4 dB RF Connector: K(m) – K(f) output Max RF input level: -5 dBm, (0 dBm damage level) Specification temperature: +25°C
2000-1933-R	USB power bank (for use with the MS276xA Low Noise Amplifier accessory)

Specifications

Model	MS2760A	MS2762A
Frequency Range	MS2760A-0032 9 kHz – 32 GHz MS2760A-0044 9 kHz – 44 GHz MS2760A-0050 9 kHz – 50 GHz MS2760A-0070 9 kHz – 70 GHz MS2760A-0090 9 kHz – 90 GHz MS2760A-0100 9 kHz – 110 GHz MS2760A-0145 9 kHz – 145 GHz MS2760A-0170 9 kHz – 170 GHz	MS2762A-0032 6 GHz – 32 GHz MS2762A-0044 6 GHz – 44 GHz MS2762A-0050 6 GHz – 50 GHz MS2762A-0070 6 GHz – 70 GHz MS2762A-0090 6 GHz – 90 GHz MS2762A-0100 6 GHz – 110 GHz MS2762A-0145 6 GHz – 145 GHz MS2762A-0170 6 GHz – 170 GHz
Dynamic Range 2/3 (TOI to DANL) 1 Hz RBW	>103 dB @ 70 GHz	>108 dB @ 70 GHz
DANL (RMS detection) 1 Hz RBW, IF Gain = On	-130 dB typ (70 – 90 GHz) -120 dB typ (110 – 145 GHz)	-141 dB typ (70 – 90 GHz) -129 dB typ (110 – 145 GHz)
RF Connector K = 2.92 mm (compatible with SMA and 3.5 mm) V = 1.85 mm (compatible with 2.4 mm) *W1 = 1.0 mm	MS2760A-0032 K* (m) connector MS2760A-0044 K* (m) connector MS2760A-0050 V* (m) connector MS2760A-0070 V* (m) connector MS2760A-0090 W1* (m) connector MS2760A-0100 W1* (m) connector MS2760A-0145 0.8 mm (m) connector MS2760A-0170 0.8 mm (m) connector	MS2762A-0032 K* (m) connector MS2762A-0044 K* (m) connector MS2762A-0050 V* (m) connector MS2762A-0070 V* (m) connector MS2762A-0090 W1* (m) connector MS2762A-0100 W1* (m) connector MS2762A-0145 0.8 mm (m) connector MS2762A-0170 0.8 mm (m) connector
Amplitude Accuracy	±0.5 dB, typical (20°C to 30°C)	±0.5 dB, typical (20°C to 30°C)
Frequency Accuracy	Accuracy: ± 0.2 ppm (25°C ± 25°C) + aging Aging: ± 1.0 ppm per year	Accuracy: ± 0.2 ppm (25°C ± 25°C) + aging Aging: ± 1.0 ppm per year
