- Anritsu ME786xA
Distributed Modular 2-port Vector Network Analyzer

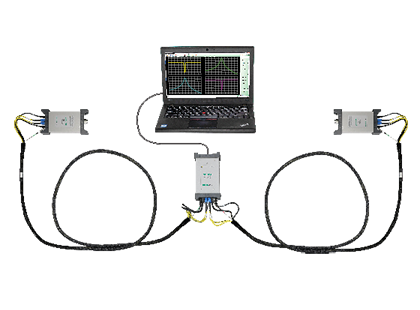

Anritsu’s ShockLine™ ME7868A/ME7869A is the industry’s first distributed, fully reversing 2-port VNA system powered by PhaseLync™ technology. Supporting 1 MHz to 43.5 GHz, it synchronizes two portable MS46131A VNAs to deliver accurate, phase-stable S-parameter measurements up to 100 meters.
This modular design eliminates long cable runs, reducing loss and improving stability, while lowering test setup costs. Ideal for RF R&D, 5G, manufacturing, and education, it offers flexible configurations (1-port, dual 1-port, or 2-port) and advanced time domain options for precise characterization.
Features
- 2-port VNA with frequency options from 1 MHz to 8 GHz / 20 GHz / 43.5 GHz (options for 20, 50, and 100 meters)
- Extend remote ports 100 meters apart with PhaseLync synchronization
- Small and lightweight ports enable direct connection to DUT eliminating long cable runs
- Guaranteed performance to 43.5 GHz with Extended-K™ ports
- PC control takes advantage of external computer processing power and functionality
- No on-board data storage makes use in secure applications more convenient
- Common ShockLine control software delivers powerful debug and test capabilities
- PhaseLync control module MN25132A
Applications
Long distance S-parameter measurements
- Long cable insertion loss testing
- Antenna testing
- Over the Air (OTA) Applications
〇Chamber installations
〇Large vehicle RF shielding and propagation testing
System Integration Application
- System Calibration
- Path-loss Characterization
- General s-parameters and time domain measurements
Secure Area Applications
- No data storage on unit
- Secure external computer control through direct USB connection
