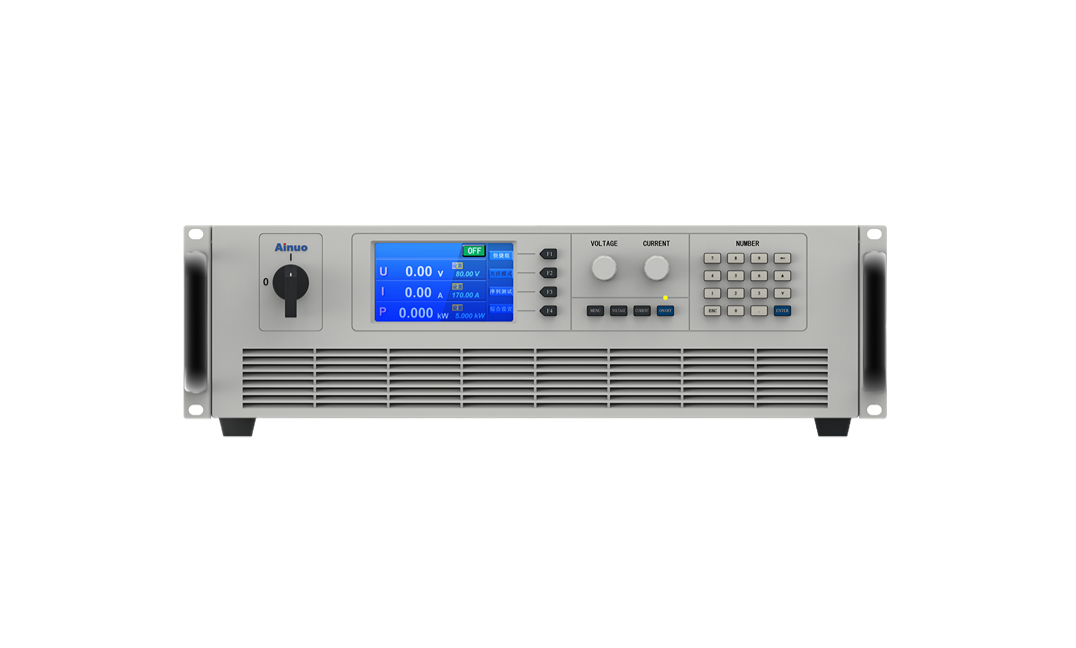

Wide Range Programmable DC Power Supply AN53 Series
The AN53(F) series DC power supply adopts active power factor correction technology, high-frequency LLC multi-resonant soft-switching inverter technology, which achieves high power factor, fast dynamic response, low output ripple, high power density, constant power (CP) wide range output. It has the advantages of small size, lightweight, low noise, high efficiency, and easy operation.
It can be used in the manufacturing, testing, and maintenance of aircraft and aviation equipment, radar and navigation and other electronic equipment, industrial and mining enterprises, university laboratories, research institutes, etc.
Model:
AN53 Series
Maker:
Ainuo
Features
• Board range output up to 3 times of “matrix” power supply of the same power.
• Active Power Factor Correction, full load power factor of more than 0.99.
• High-frequency LLC multi-resonant inverter with efficiency up to 0.93.
• Industrial best transient response speed.
• Constant Voltage (CV), Constant Current (CC), and Constant Power (CP) output for multiple applications.
• Powerful programmable function, flexible settings.
• Built-in precise voltage/current measurement, stable output.
• Lead drop compensation terminal for output lead at large current.
• Complete protection for normal operation of the power supply unit and load security.
• High-brightness color LCD, beautiful, simple, and intuitive.
• Supports parallel output, expanding power/current range.
• Standard host software.
• Solar cell I-V curve simulation
• Simulate a variety of solar cell output characteristics (Fill Factor)
• Test the maximum power point tracking (MPPT) capability and efficiency.
• Accurate voltage and current measurement.
• Serial output can be set to test the PV inverter operating voltage range.
• Standard RS232 interface.
• Standard graphical PC operating software. Single operation available.
• Simulate the I-V curve under different temperature and illumination conditions.
Application
The power output curve of the AN53(F) series is extended to provide users with a wider range of voltage/current, more flexible than the traditional “matrix” output range. The output range of single Constant Power (CP) DC power is times of common matrix power. For example, 80V/510A/15kW models of the AN53(F) series can provide 80V/187.5A output at 15kW power, or 29V/510A output at 15kW. For traditional “matrix” output power, the technical index will be 80V/187.5A/15kW. When the output voltage is 29.4V, the maximum current is still 187.5A, and the power is only 5.5kW.
Specifications
| Jump to AN53 series by output voltage | ||||||
|---|---|---|---|---|---|---|
| Output Voltage | 0~80V | 0~300V | 0~500V | 0~750V | 0~1500V | |
| Specifications of AN5380(F) series | |||||||
|---|---|---|---|---|---|---|---|
| Model | AN5380-120S(F) | AN5380-170S(F) | AN5380-170(F) | AN5380-340(F) | AN5380-510(F) | ||
| Input | Voltage | Single phase +PE, 198V~242VAC | 3-phase 3-wire +PE, 340V~420VAC | ||||
| Frequency | 47-63HZ | ||||||
| Output | Voltage | 0~80V | |||||
| Current | 0~120A | 0~170A | 0~340A | 0~510A | |||
| Power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | ||
| Display Mode | 4.3” color LCD | ||||||
| Resolution/ Accuracy | Voltage | ≤0.1%Umax, Resolution: 0.01V | |||||
| Current | ≤0.2%Imax, Resolution: 0.01A (>1000A, 0.1A) | ||||||
| Power | ≤1%Pmax, Resolution: 0.001KW (>100KW, 0.01KW) | ||||||
| Ripple and Noise
20Hz-20MHz |
Vrms | 30mV | 40mV | ||||
| Vpp | 200mV | 250mV | |||||
| Load effect | Voltage | ≤0.05%Umax | |||||
| Current | ≤0.15%Imax | ||||||
| Source effect | Voltage | ≤0.02%Umax | |||||
| Current | ≤0.05%Imax | ||||||
| Transient response time | ≤2ms | ||||||
| Rise time 100% | 50ms (10%-90%) | ||||||
| Max output voltage drop compensation | 6.5V | ||||||
| Communication | Standard RS232, Optional RS485. CAN, LAN. GPIB. Analog interface | ||||||
| Protection | Reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection | ||||||
| Parallel | Support multiple parallel outputs to expand the power/current range | ||||||
| Environment | Temperature: 0~40℃ ; Humidity: 20~90%RH | ||||||
| Dimension W×H×D (mm) | 440×133×350 | 440×133×600 | |||||
| Weight | 16kg | 17kg | 27kg | 37kg | |||
| Model | AN53300-15S(F) | AN53300-30S(F) | AN53300-50(F) | AN53300-100(F) | AN53300-150(F) | |
|---|---|---|---|---|---|---|
| Input | Voltage | Single phase +PE, 198V~242VAC | 3-phase 3-wire +PE, 340V~420VAC | |||
| Frequency | 47-63HZ | |||||
| Output | Voltage | 0~300V | ||||
| Current | 0~15A | 0~30A | 0~50A | 0~100A | 0~150A | |
| Power | 0~1.8KW | 0~3KW | 0~5KW | 0~10KW | 0~15KW | |
| Display Mode | 4.3” color LCD | |||||
| Resolution/ Accuracy | Voltage | ≤0.1%Umax, Resolution: 0.01V | ||||
| Current | ≤0.2%Imax, Resolution: 0.01A (>1000A, 0.1A) | |||||
| Power | ≤1%Pmax, Resolution: 0.001KW (>100KW, 0.01KW) | |||||
| Ripple and Noise
20Hz-20MHz |
Vrms | 60mV | ||||
| Vpp | 450mV | |||||
| Load effect | Voltage | ≤0.05%Umax | ||||
| Current | ≤0.15%Imax | |||||
| Source effect | Voltage | ≤0.02%Umax | ||||
| Current | ≤0.05%Imax | |||||
| Transient response time | ≤2ms | |||||
| Rise time 100% | 50ms (10%-90%) | |||||
| Max output voltage drop compensation | 6.5V | |||||
| Communication | Standard RS232, Optional RS485. CAN, LAN. GPIB. Analog interface | |||||
| Protection | Reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection | |||||
| Parallel | Support multiple parallel outputs to expand the power/current range | |||||
| Environment | Temperature: 0~40℃ ; Humidity: 20~90%RH | |||||
| Dimension W×H×D (mm) | 440×133×350 | 440×133×600 | ||||
| Weight | 16kg | 17kg | 27kg | 37kg | ||
| Model | AN53500-15S(F) | AN53500-30S(F) | AN53500-50(F) | |
|---|---|---|---|---|
| Input | Voltage | 3-phase 3-wire +PE, 340V~420VAC | ||
| Frequency | 47-63HZ | |||
| Output | Voltage | 0~500V | ||
| Current | 0~30A | 0~60A | 0~90A | |
| Power | 0~5KW | 0~10KW | 0~15KW | |
| Display Mode | 4.3” color LCD | |||
| Resolution/ Accuracy | Voltage | ≤0.1%Umax, Resolution: 0.01V | ||
| Current | ≤0.2%Imax, Resolution: 0.01A (>1000A, 0.1A) | |||
| Power | ≤1%Pmax, Resolution: 0.001KW (>100KW, 0.01KW) | |||
| Ripple and Noise
20Hz-20MHz |
Vrms | 80mV | ||
| Vpp | 700mV | |||
| Load effect | Voltage | ≤0.05%Umax | ||
| Current | ≤0.15%Imax | |||
| Source effect | Voltage | ≤0.02%Umax | ||
| Current | ≤0.05%Imax | |||
| Transient response time | ≤2ms | |||
| Rise time 100% | 50ms (10%-90%) | |||
| Max output voltage drop compensation | 25V | |||
| Communication | Standard RS232, Optional RS485. CAN, LAN. GPIB. Analog interface | |||
| Protection | Reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection | |||
| Parallel | Support multiple parallel outputs to expand the power/current range | |||
| Environment | Temperature: 0~40℃ ; Humidity: 20~90%RH | |||
| Dimension W×H×D (mm) | 440×133×600 | |||
| Weight | 17kg | 27kg | 37kg | |
| Model | AN53750-20(F) | AN53750-40(F) | AN53750-60(F) | |
|---|---|---|---|---|
| Input | Voltage | 3-phase 3-wire +PE, 340V~420VAC | ||
| Frequency | 47-63HZ | |||
| Output | Voltage | 0~750V | ||
| Current | 0~20A | 0~40A | 0~60A | |
| Power | 0~5KW | 0~10KW | 0~15KW | |
| Display Mode | 4.3” color LCD | |||
| Resolution/ Accuracy | Voltage | ≤0.1%Umax, Resolution: 0.01V | ||
| Current | ≤0.2%Imax, Resolution: 0.01A (>1000A, 0.1A) | |||
| Power | ≤1%Pmax, Resolution: 0.001KW (>100KW, 0.01KW) | |||
| Ripple and Noise
20Hz-20MHz |
Vrms | 200mV | ||
| Vpp | 800mV | |||
| Load effect | Voltage | ≤0.05%Umax | ||
| Current | ≤0.15%Imax | |||
| Source effect | Voltage | ≤0.02%Umax | ||
| Current | ≤0.05%Imax | |||
| Transient response time | ≤2ms | |||
| Rise time 100% | 50ms (10%-90%) | |||
| Max output voltage drop compensation | 25V | |||
| Communication | Standard RS232, Optional RS485. CAN, LAN. GPIB. Analog interface | |||
| Protection | Reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection | |||
| Parallel | Support multiple parallel outputs to expand the power/current range | |||
| Environment | Temperature: 0~40℃ ; Humidity: 20~90%RH | |||
| Dimension W×H×D (mm) | 440×133×595 | |||
| Weight | 17kg | 27kg | 37kg | |
| Model | AN531000-30(F) | AN531500-30(F) | |
|---|---|---|---|
| Input | Voltage | 3-phase 3-wire +PE, 340V~420VAC | |
| Frequency | 47-63HZ | ||
| Output | Voltage | 0~1000V | 0~1500V |
| Current | 0~30A | ||
| Power | 0~10KW | 0~15KW | |
| Remark | The current range of these models can be customized for 40A | ||
| Resolution/ Accuracy | Voltage | ≤0.1%Umax, Resolution: 0.01V | |
| Current | ≤0.2%Imax, Resolution: 0.01A (>1000A, 0.1A) | ||
| Power | ≤1%Pmax, Resolution: 0.001KW (>100KW, 0.01KW) | ||
| Ripple and Noise
20Hz-20MHz |
Vrms | 350mV | 400mV |
| Vpp | 1600mV | 2400mV | |
| Load effect | Voltage | ≤0.05%Umax | |
| Current | ≤0.15%Imax | ||
| Source effect | Voltage | ≤0.02%Umax | |
| Current | ≤0.05%Imax | ||
| Transient response time | ≤2ms | ||
| Rise time 100% | 50ms (10%-90%) | ||
| Max output voltage drop compensation | 25V | ||
| Communication | Standard RS232, Optional RS485. CAN, LAN. GPIB. Analog interface | ||
| Protection | Reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection | ||
| Parallel | Support multiple parallel outputs to expand the power/current range | ||
| Environment | Temperature: 0~40℃ ; Humidity: 20~90%RH | ||
| Dimension W×H×D (mm) | 440×133×600 | ||
| Weight | 27kg | 37kg | |
