- Sugawara Pull-in Torque and Pull-out Torque Tester
Pull-in Torque and Pull-out Torque Tester
This model uses Prony (winding) braking, the braking method with the strongest demonstrated performance for stepping motor measurements. Used with a personal computer, it provides precise automatic measurements of pull-in and pull-out torque.
Pull-in Torque and Pull-out Torque Tester
Model:
SMT-2
Maker:
Sugawara Laboratories Inc.
Micro Stepper Motor Measurement
Supersensitive Sensor Set SS-R2N is now available.
Enables accurate and stable measurement of the micro stepper motor torque of less than 0.1 mN·m. It succeeded in testing torque of less than 0.002 mN·m of extremely small stepper motors.
Suitable also for lead screw motors.
Primary Advantages
· Since it uses Prony braking, this model provides stable measurement unaffected by moments of inertia and no coupling loss.
· For pull-in torque, startup can be measured consistently from the holding state.
· This model offers a range of seven available measurement heads, from 0.2 N to 20 N, allowing use for high-precision measurements.

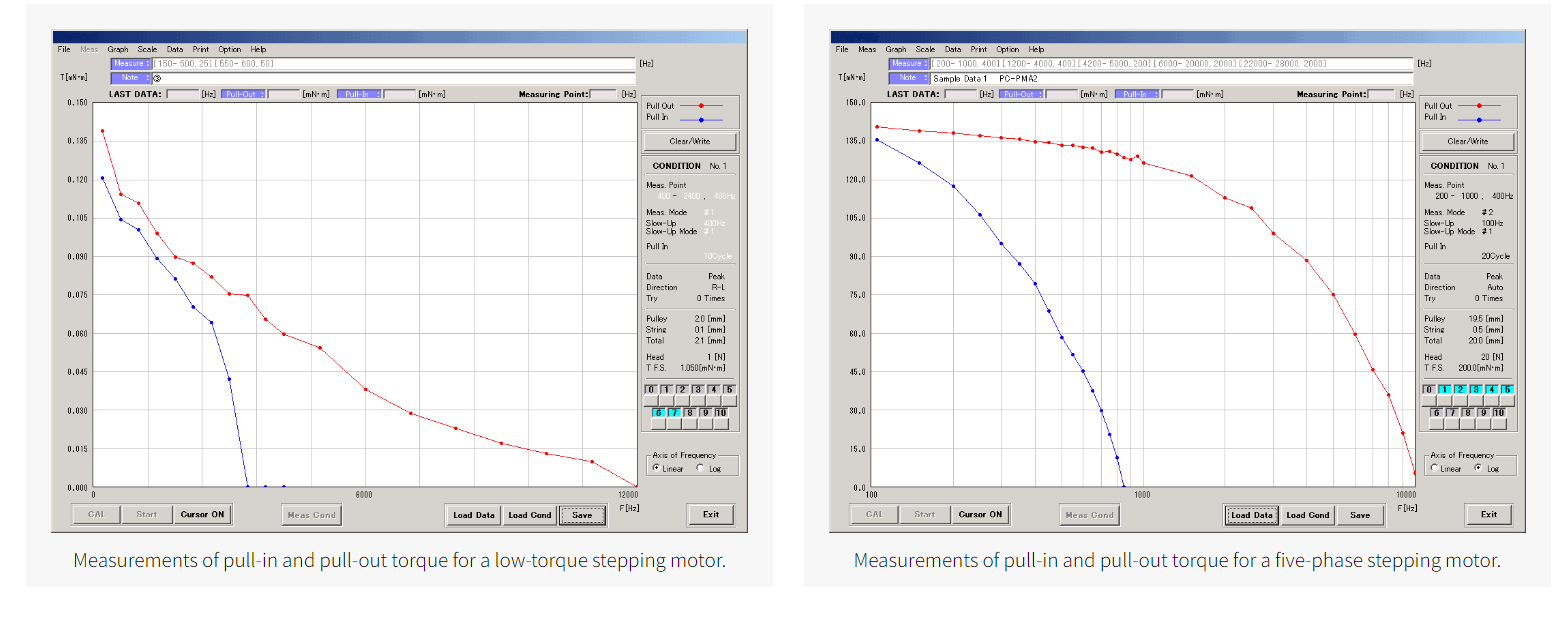

· Motor characteristics are easily ascertained on automatically plotted performance graphs.
· Allows control of measurement operations and display and storage of data from a standard personal computer running Windows.
Basic configuration
· Micro Stepper Motor Tester SMT-2
· Controller SMC-2
· Sensor set SS-*N
· Personal computer: Microsoft Windows XP, 7
■System Configuration

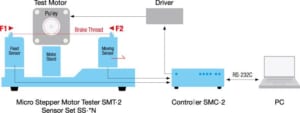

The Brake Thread is wound on the Pulley attached to the Test Motor shaft, and it’s both ends are attached to the hooks of the two Sensors. When the Moving Sensor moves to tighten the Brake Thread, the torque is loaded to the Test Motor via a Pulley.
■System Configuration
Video
Specification
| Model | SMT-2 |
|---|---|
| Load method | Prony braking |
| Force detection head rating | eight types: 0.2/0.5/1/2/5/10/20/50 N |
| Torque measurement accuracy | within ±1% of torque range |
| Range of operating pulse frequency settings | 16 Hz – 50,000 Hz |
| Compatible personal computers | OS: Microsoft Windows XP, 7, 10 |
