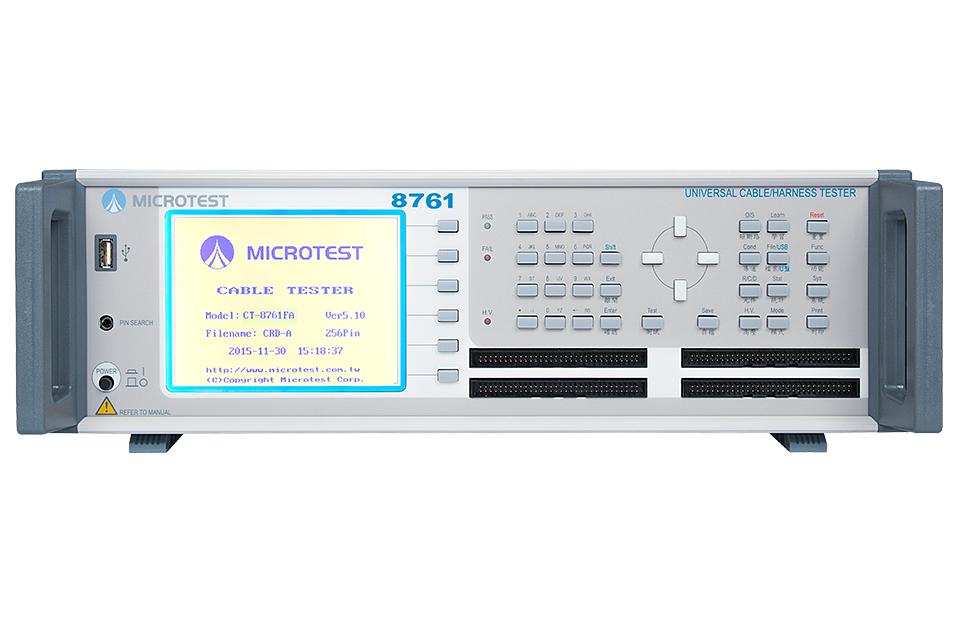

- MICROTEST 線材測試儀 8761
一機檢測線束/連接器電氣特性，包含導通、斷短路、耐壓絕緣、電阻、電容
MICROTEST 8761系列線材測試儀，量測技術採用精密四線式量測，滿足低阻性1mΩ等級的線束產品進行完整的電氣特性測試，測試項目包含導通阻抗、斷/短路、AC/DC安規耐壓、IR絕緣、元件(電阻/電容/二極體)，測試點位可選型64/128/256點，AC耐壓輸出最高1000V，DC耐壓輸出最高1500V，支援PC連線軟體與BAR Code掃描，滿足線材連接器生產自動線測試要求。
線材測試儀
Model:
8761
Maker:
MICROTEST

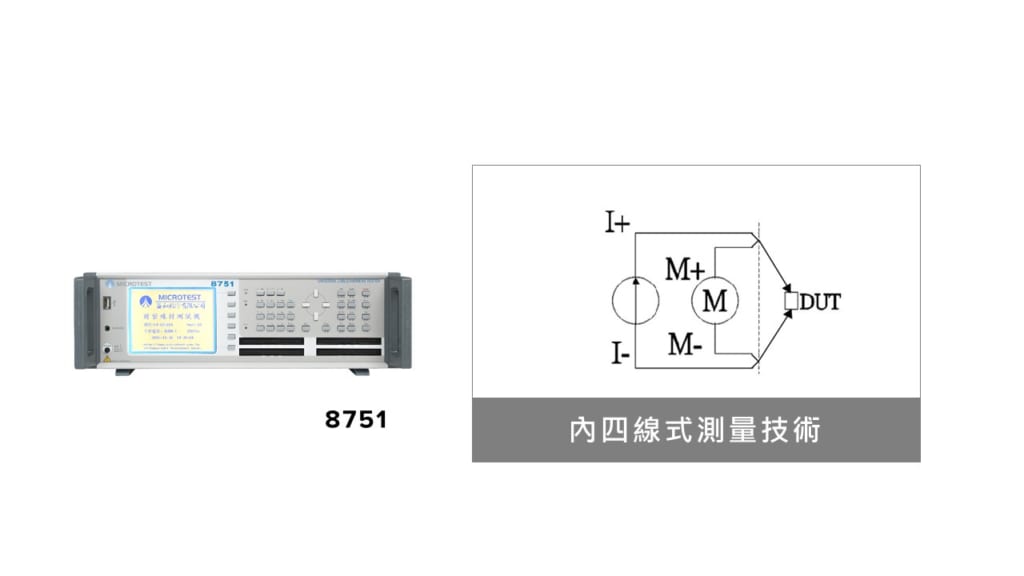

8761精密線材測試儀採用四線式量測技術
直接連接至待測線束之兩端進行測量，避免整體接線所產生的誤差，使量測阻抗更精密可達到1mΩ。

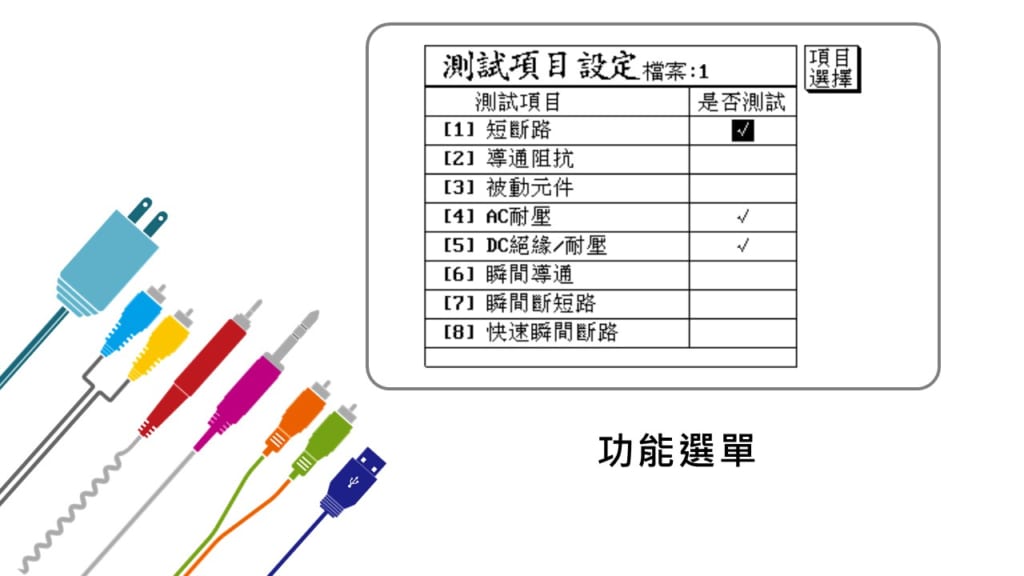

8761一機提供四線式導通阻抗、斷短路測試、AC/DC安規耐壓與絕緣測試，以及元件測試功能

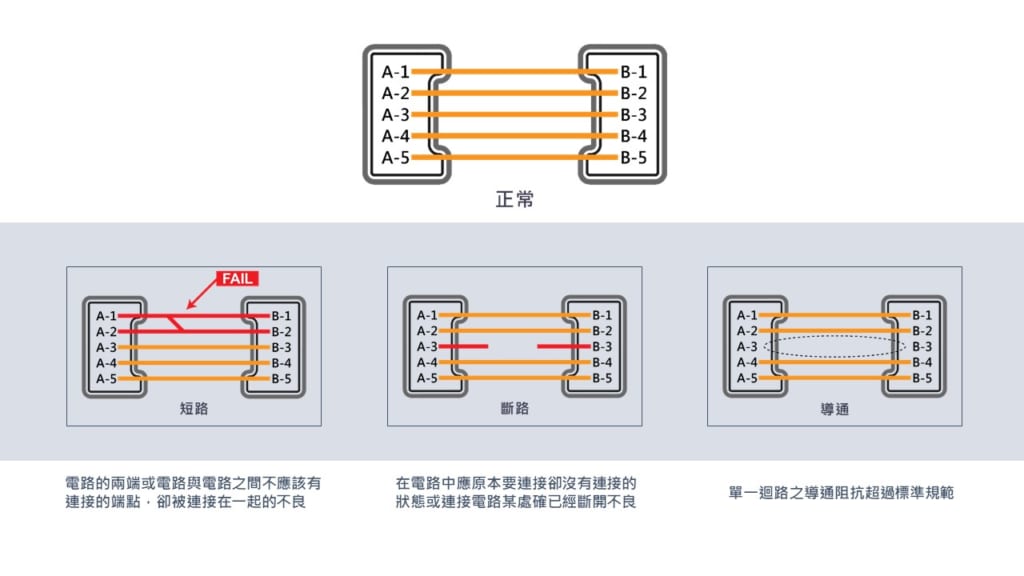

導通阻抗測試目的
測試線材連接器接點是否有接觸阻抗性的問題
斷短路測試目的
確保線材連接器接點是否有無功能上的問題，MICROTEST線材測試儀支援斷短路端點判定與學習迴路
在安規測試單元提供AC/DC耐壓以及絕緣阻抗測試功能
對線材連接器施加一個穩定高電壓進行測量，目的確保待測物之耐壓能力與絕緣品質，確保線材連接器之迴路接點是否符合絕緣性與耐高壓要求

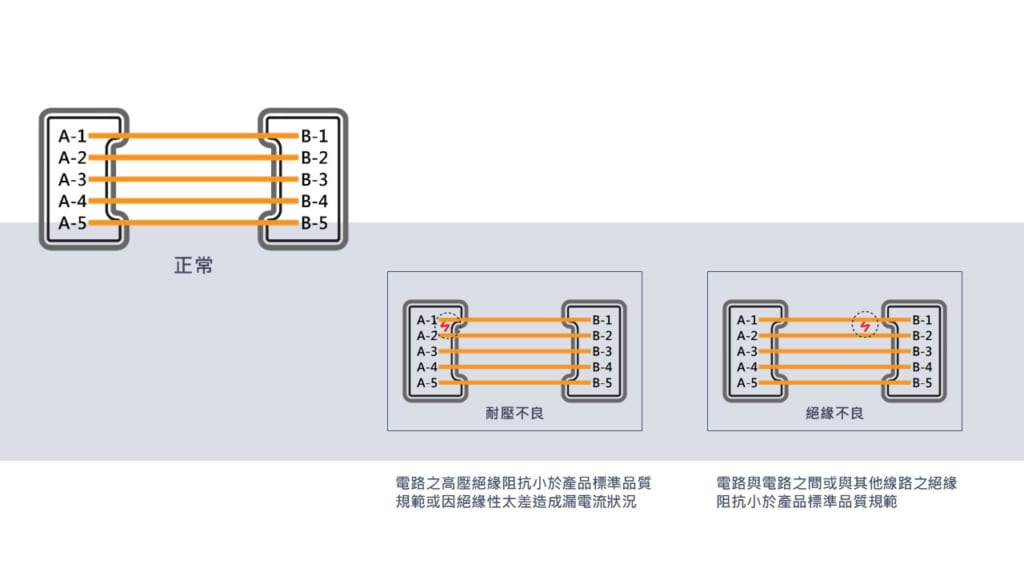

線材/連接器生產製程中會造成那些安規方面的品質不良？
絕緣不良
電路與電路之間或與其他線路之絕緣阻抗小於產品標準品質規範
耐壓不良
電路之高壓絕緣阻抗小於產品標準品質規範或因絕緣性太差造成漏電流狀況
安規檢測項目中兩大重要指標
絕緣阻抗
測試結果以絕緣阻抗值判定，絕緣阻抗是反應絕緣材料性能一項重要電氣參數，絕緣阻抗不良可能會發生高壓下待測物被擊穿或漏電流
電弧偵測
許多車用或軍工應用的精密產品是不容許高壓下出現電弧的現象
功能特點
- 四線式低阻測量(1mΩ-52Ω)
- AC耐壓最高1000V
- DC耐壓最高1500V
- 測試點數支援64P / 128P / 256P
- 絕緣阻抗測試
- 導通阻抗 / 斷短路 / 快速瞬斷測試
- 支援BAR Code掃描
- 支援連結列表機列印數據
- 可選購PC Link軟體
- 支援多組產品測試
Application 應用

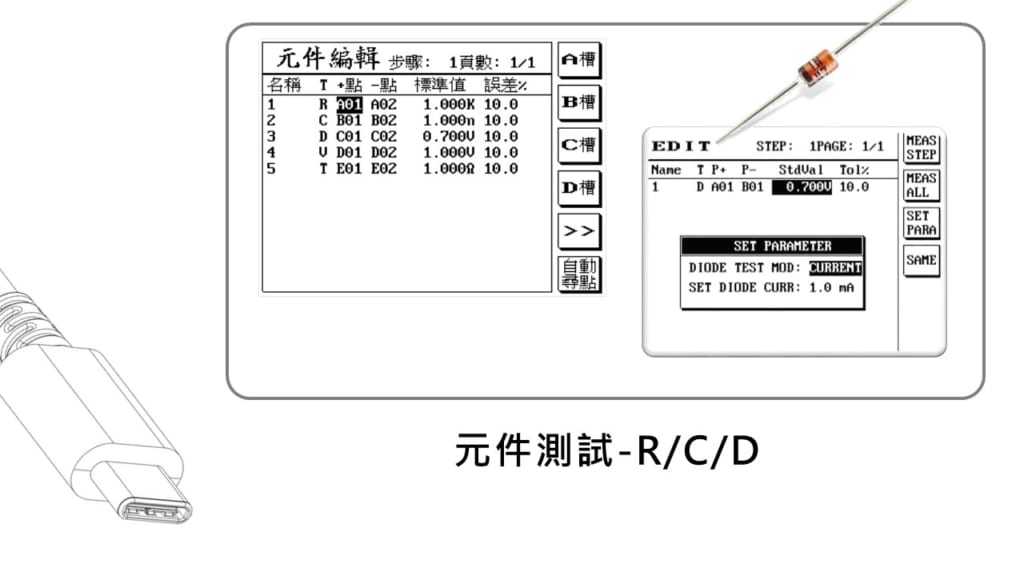

MICROTEST線束測試儀提供線材/連接器測試元件特性(R電阻/C電容/D二極體)
選型
| 型號 | 8761FA | 8761NA | 8761N |
| AC耐壓 | 100V-1000V | 100V-700V | – |
| DC耐壓 | 50V-1500V | 50V-1000V | 50V-1000V |
| 測試點數 | 64/128/256 | ||
量測線材連接器的導通阻抗、耐壓絕緣
規格
| Model | 8761FA |
| AC Hi pot Test | 100V-1000V |
| DC Hi pot Test | 50V-1500V |
| Test Pin | 64/128/256 |
| Model | 8761NA |
| AC Hi pot Test | 100V-700V |
| DC Hi pot Test | 50V-1000V |
| Test Pin | 64/128/256 |
| Model | 8761N |
| AC Hi pot Test | – |
| DC Hi pot Test | 50V-1000V |
| Test Pin | 64/128/256 |
| Model | 8761 |
| Safety Hi pot Test | |
| AC Hipot Leakage
Current |
0.01mA -5mA |
| AC Arcing Detection | 0-9 |
| DC Hipot Leakage
Current |
0.1µA-1000µA |
| DC Arcing Detection | 0-9 |
| DC Hipot Insulation
Resistance |
1MΩ-1.2GΩ |
| Hipot Output Accuracy | ±5% |
| Hipot Measurement
Accuracy |
±5% |
| Rated Output | 5Vdc |
| Hipot Measurement
Time |
0.01秒 – 60秒 |
| Wire Specifications | Maximum allowable capacitance 5μF |
| Low Voltage Electrical Test | |
| Measuring Mode | 4-Wire Test |
| Conductance | 1mΩ-52Ω |
| Intermittence
Conductance |
1mΩ-52Ω |
| O/S
Intermittence O/S
Quick Intermittence open circuit |
1kΩ-100kΩ |
| O/S Determinal Judge | ● |
| Single-Side Test | ● |
| Component test | |
| Resistance | Measurement Range
50mΩ-20MΩ |
| Level Signal
0.5-3V |
|
| Current Signal
10mA |
|
| Capacitance | Measurement Range
10pF-12µF |
| Level Signal
0.3V-1.2V |
|
| Frequency Signal
AUTO Gear (Optional) 48Hz/480Hz/4.8kHz/48kHz |
|
| Diode | Measurement Range
0-6.8V |
| Other Function | |
| Advanced Functions | Programmable continuous test / Pin search
Auto-diagnosis |
| Test Scan Mode | Auto, Manual, External Trigger |
| Measurement Signal | Low Voltage Measurement Signal |
| Panel | System/Rapid /Edit / Function |
| Indicator | Pass/Fail HV LED red-green indicator
lights / Screen Display /Sound |
| Operation | Manual, Auto, Remote Control |
| Built-in Storage | Number of test file up to 500 sets |
| Power Supply | Fixed Voltage
115/230 Vac ±10% |
| Frequency
60/50Hz |
|
| Power consumption | 300VA |
| Environment | Temperature
0℃-40℃ |
| Humidity
RH≦75% |
|
| Display | 320*240 dot-matrix display |
| Dimension
(W*H*D) & Weight |
64PIN
435x145x406 mm 8.44Kg |
| 128PIN
435x145x406 mm 9.3Kg |
|
| 256PIN
435x190x406 mm 14Kg |
|
| Interface | RS-232, USB Host, Print, Remote |
