Prescale is a film that can measure pressure value and pressure distribution. With this film, you can improve your inspection for pressure!

・Prescale is easy to use! Special training is not required.
・You can cut Prescale in accordance with the size of measurement area!

・Prescale is widely used worldwide.
　→Electronics industry (PCB, FPC, Semiconductor, Printer, Display, battery, smartphones and so on)
　→Chemical industry
　→Automotive industry
　→Packaging industry
　→Printing industry

Pressure and pressure distribution, which could not be visually observed in the past, can now be easily checked with Prescale! With this product, you can expect to improve the quality of your development and production!

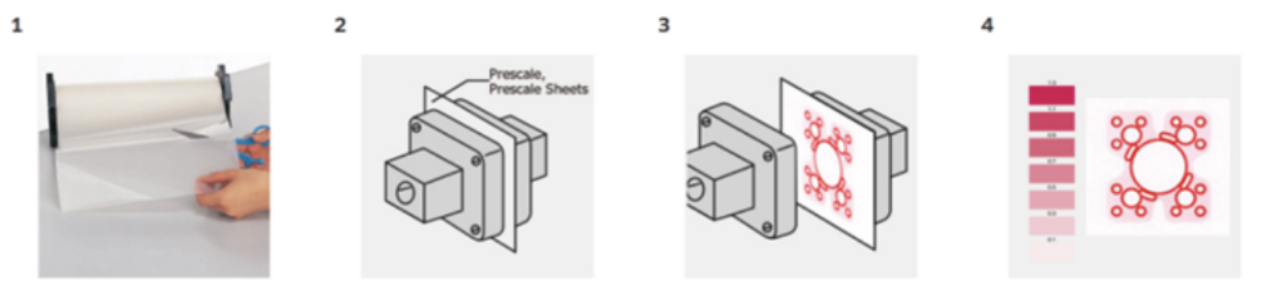

1) Prescale is easy to use!
2) You can cut Prescale in accordance with the size of measurement area!
3) You can check pressure distribution and pressure value!

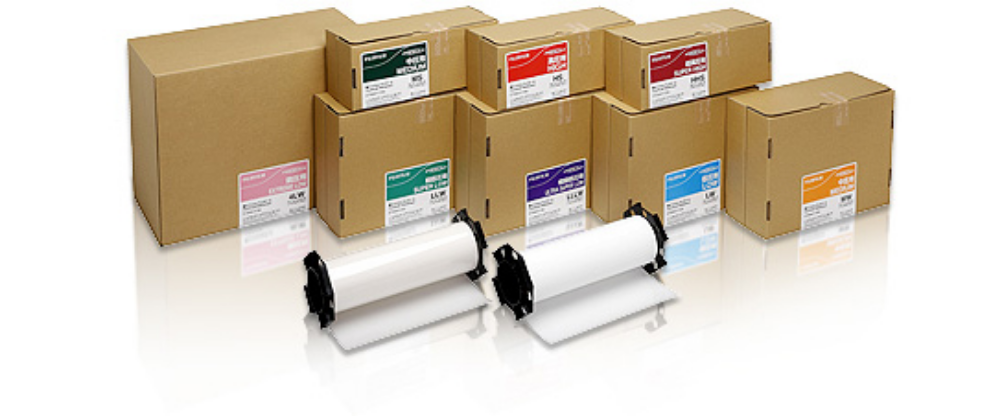

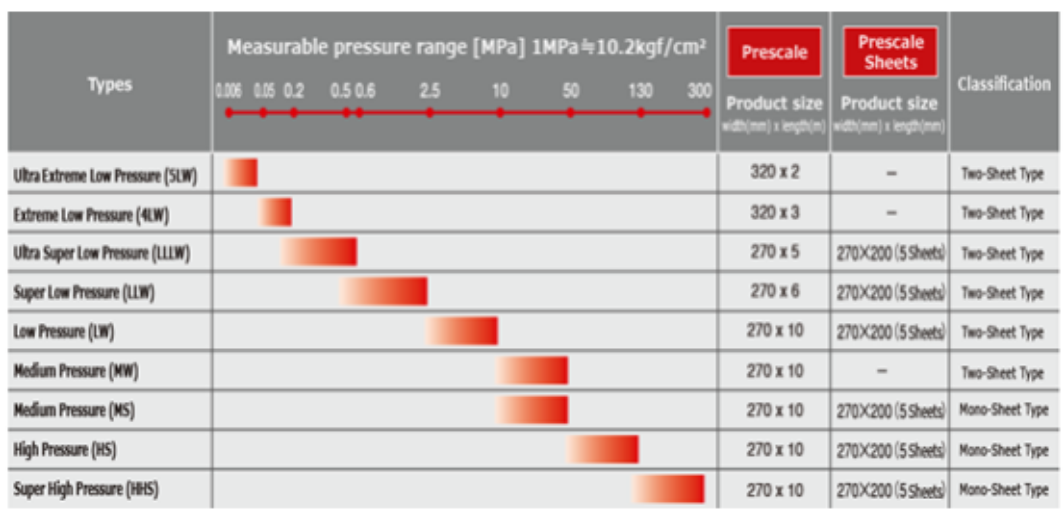

We have 9 types of Prescale depending on the pressure range　in accordance with Pressure range.

Measurement of “pressure distribution”

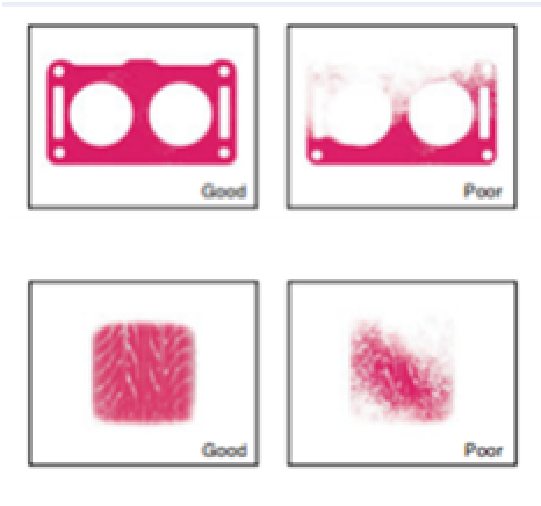

Visually check the color development result and measure the difference in color density as the pressure distribution.

Automotive Industry
・Manufactured products：Car body, cylinder head gasket

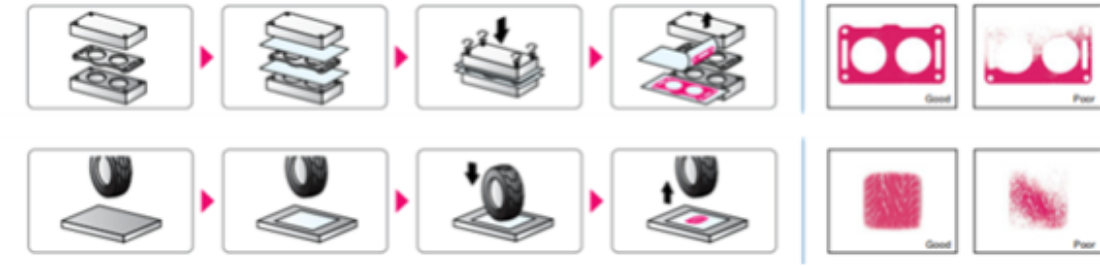

・PS Usage process：Hit during body press / hit against brake pad / gasket sealability, etc
・Case Study: Checking the seal of cylinder head gaskets

Printed circuit boards Industry
・Manufactured products：PCB/FPC/PKG
・PS Usage process：Dry film laminating, laminating press, roll crimping, etc

Packaging Industry
・Manufactured products：food/pharmaceutical
・PS Usage process：Safety evaluation of heat seals, rubber bonding rolls, injection molding machines / dies, and industrial collaborative robots, etc
・Case Study: Equipment settings when changing products, equipment maintenance on Heat Sealing

＜Precision＞
±10% or less (measured by a densitometer at 23°C, 65% RH)

＜Recommended temperature＞
20°C to 35°C*1

＜Recommended humidity＞
35% RH to 80% RH*2 *3

*1 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW) / Super high pressure (HHS): 15°C–30°C
*2 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW): 20% RH–75% RH
*3 Super high pressure (HHS): 35% RH–70% RH

＜Pressure distribution mapping system “FPD-8010E”＞

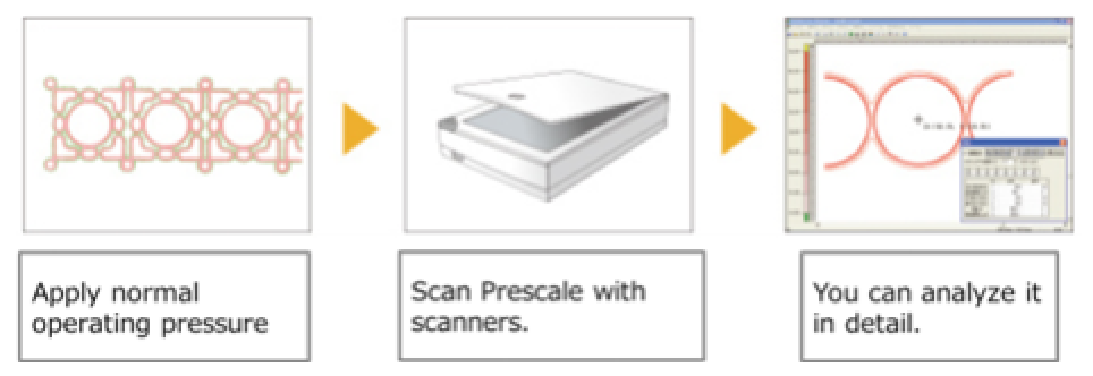

Pressure distribution mapping system provides more detailed analyses for Prescale.

FPD-8010E provides a wide range of effective presentation and report functions utilizing FPD-8010E software and a scanner to digitize Prescale outputs to allow the user to produce multi-faceted measurement data such as pressure distribution and enlargement, cross-sectional distribution, and 3-D image display.

The app that enables any user to quantify pressure and other analysis results with ease.

Prescale Mobile is an app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. You can also register and inspection images against your own boundary sample.
