- Noiseken Impulse Noise Simulator INS-S220 / S420
Noise simulator can simulate high frequency noise generated ON/OFF at contact point of switch or relay, arc caused by electric motor. It can evaluate the resistibility of electric devices.
Pulse contains high frequency and by energy volume is changable by adjusting pulse width. The high reproduction noise test of noise trouble in the market can be conducted.

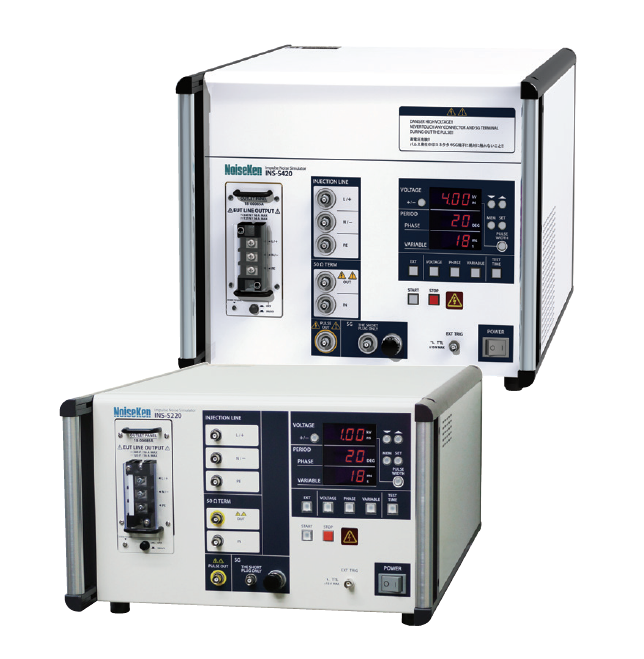

Impulse Noise Simulator
Model:
INS-S220 / S420
Maker:
Noiseken
Features
- Button touch instead of coaxial cable replacing reduces pulse width setting time.
- Pulse waveform stability is improved, so high reproduction test is available.
- Cost is cut down because consuamable parts are reduced.
- Common mode/normal mode test is easily to switch by short plug.
- “Test time setting” new function simplifies test time setting.
- Repetition cycle becomes faster. Due to high repetition, mal-function
occurrence rate is up and test time is to be shortened.(Only INS-S220) - AC plug of EUT can be inserted directly by outlet panel.(option)
- Various tests are available by using different probes and coupling clamp.(option)
- EUT test with 3 phase is available by external CDN.(option)
- Dedicated software simplifies testing with various test conditions (Option. Applicable to INS-S420 only)
