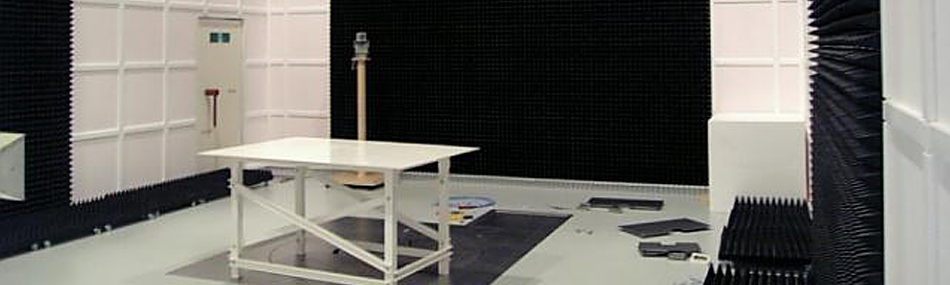

Anechoic Chambers
Maker:
RIKEN ENVIRONMENTAL SYSTEM
Feature
- Anechoic chamber with 3m measurement distance can be made available
- Can be used for wide range of application as EMI/EMS measures
- Floor of electromagnetic anechoic chamber can be selected from metallic floor and electromagnetic wave absorber floor
- Can be designed according to the space available in installation location
Specifications
| Standards Complied | ANSI C63.4 /CISPR16-1-4/IEC61000-4-3 |
| Size | W4.0 × L8.0 × H3.5 m |
| Measurement Distance | 3.0m/1.0m |
| Electromagnetic Wave Absorber | RF043+RHFFP absorber or ferrite tile + pyramid ferrite electromagnetic wave absorber (RHFFP series) |
| Site Attenuation | 1GHz-18GHz |
| Main Shielded Door | W1.0 × H2.0 m manually operated swing door |
| Turn Table | — |

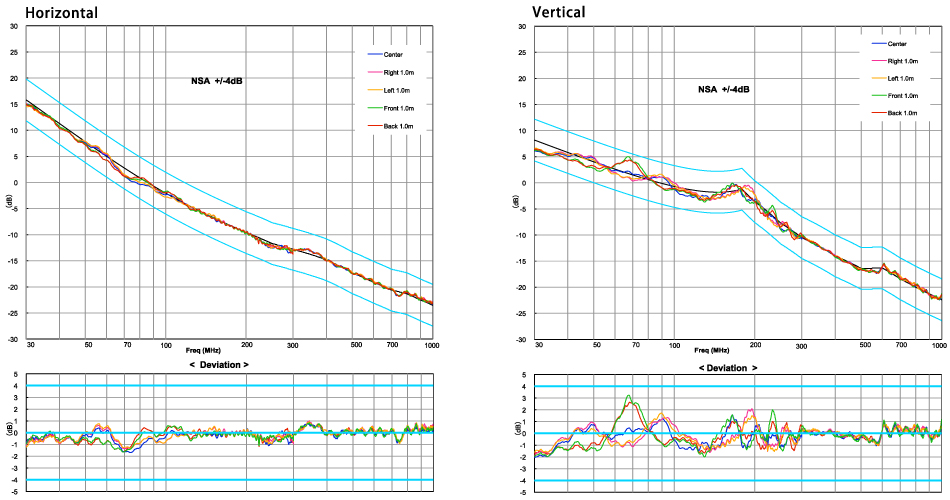

Performance
To view the pdf files, the Adobe Reader from Adobe Systems is required.
