Anechoic Chambers
Maker:
RIKEN ENVIRONMENTAL SYSTEM
Feature
- Electromagnetic environment test chamber designed to maintain long echo time. It generates high level of magnetic field, and reproducibility is also high
- Electromagnetic shielding chamber normally equipped with mechanical stirrer and tuner
Specifications
| Standards Complied | IEC61000-4-21ed2、RTCA/DO-160D、E、F、MIL-STD461E、F |
| Size | W6.0 × L9.2 × H6.0 m |
| Measurement Distance | 3.0m/1.0m |
| Site Attenuation | 100MHz-40GHz |
| Main Shielded door | W2.0 × H2.0 m |

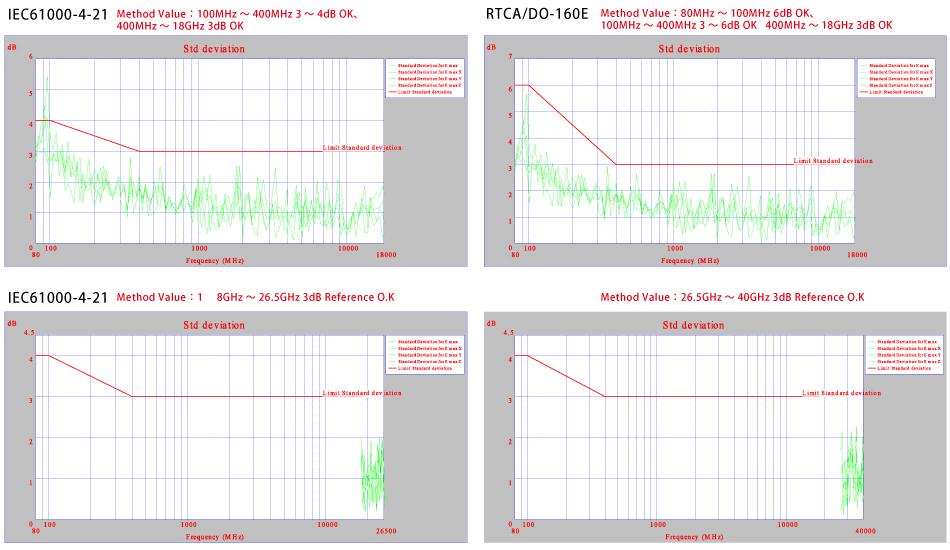

Performance
To view the pdf files, the Adobe Reader from Adobe Systems is required.
