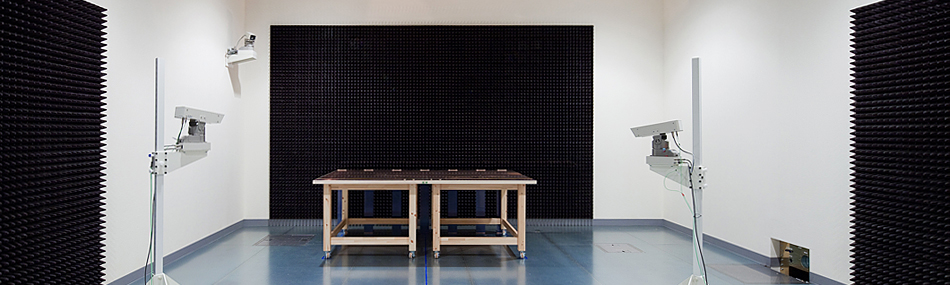

Anechoic Chambers
Maker:
RIKEN ENVIRONMENTAL SYSTEM
Feature
- 8cm high electromagnetic wave absorber (RHFFP) used as high-frequency electromagnetic wave absorber, so that room space can be efficiently used
- Can also support floor earthing type and wall earthing type (removable electromagnetic wave absorber)
Specifications
| Standards Complied | CISPR25 / ISO11452-2 / ISO11452-4 |
| Size | W6.5 × L9.2 × H4.0 m |
| Measurement Distance | 3.0m/1.0m |
| Electromagnetic Wave Absorber | RF043+RHFFP absorber or ferrite tile + pyramid ferrite electromagnetic wave absorber (RHFFP series) |
| Site Attenuation | 1GHz-18GHz |
| Main Shielded Door | W2.0 × H2.0 m semi-automatic sliding door |
| Turn Table | — |

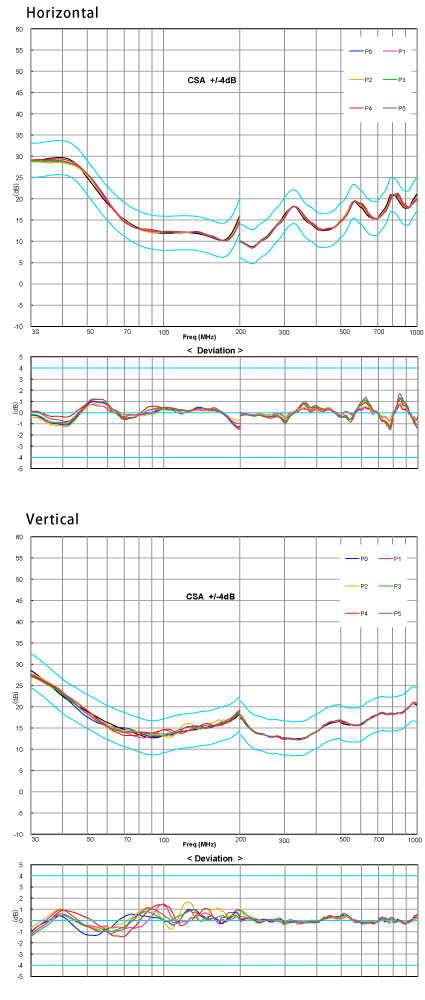

Performance
(Reference value: Standard open site, measurement distance = 1m)
|
|
