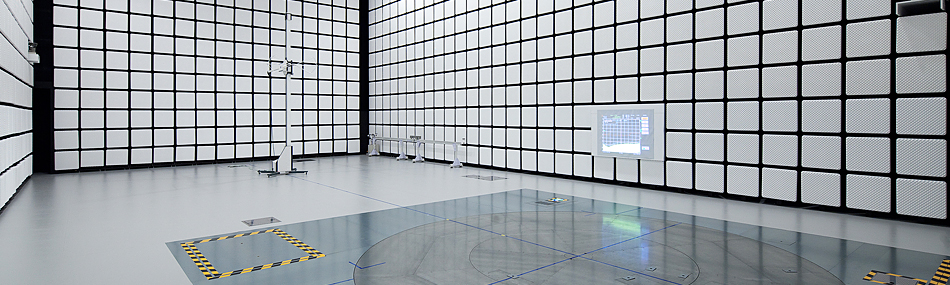

Anechoic Chambers
Maker:
RIKEN ENVIRONMENTAL SYSTEM
Feature
- In EMC test, measurement can be done at 10m distance
- Complies to various standards
- Transportation of large vehicles, and compliance with various automobile measurement standards
- Measurement axis are customized to 1 axis, 2 axis etc. as per the requirement
Specifications
| Standards Complied | VCCI/FCC/CISPR/IEC61000-4-3 |
| Size | W16.0 × L25.0 × H9.5 m |
| Measurement Distance | 10m/3m |
| Electromagnetic Wave Absorber | RF043+RC absorber or ferrite tile + hollow pyramid electromagnetic wave absorber (RC series) |
| Site Attenuation | 1GHz-18GHz |
| Main Shielded Door | W3.0 × H3.0 m |
| Turn Table | φ2.0/6.0 4.0ton |

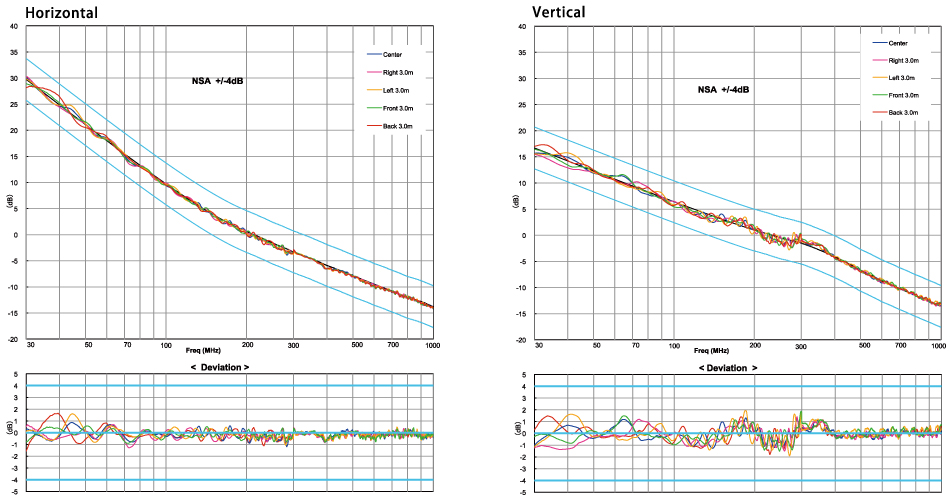

Performance
To view the pdf files, the Adobe Reader from Adobe Systems is required.
