ESPEC Espec Environmental Stress Chamber AR Series : 5K/min, 10K/min, 15K/min

Test Faster: Rapid-Rate Temperature Cycle Type : 5K/min, 10K/min, 15K/min

Experience precision and performance with our Rapid-Rate Temperature Cycle Chambers, offering test speeds of 5K/min, 10K/min, and 15K/min. Designed for accelerated thermal testing, these chambers support high heat load capacities and comply with international standards like IEC 60068 and ISO 16750. Ideal for automotive and electronic component reliability testing, with humidity control, dual PID energy-saving, and customizable capacity options.

Maker:

ESPEC CORP

Download Materials

Catalog

Rapid-Rate Temperature Cycle Type :
5K/min, 10K/min, 15K/min

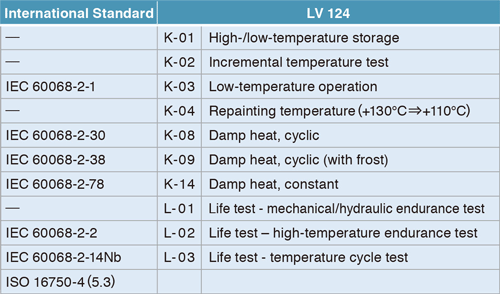

Test Standard Conformance

Temperature & humidity range

Minimum temperature: -70°C
Maximum temperature: +180°C
Humidity: 10 to 98%rh
* The standard temperature range of +180°C can be extended to +200°C (optional)

Totally frost-free

Frosting will not appear on any part of the unit despite the temperature & humidity control range of 10% to 98%rh. This eliminates the need to remove frosting, providing stable and continuous operations.

Specimen temperature control (optional)

Attaching a temperature measurement sensor to the specimen enables the temperature of the specimen to be monitored and controlled.

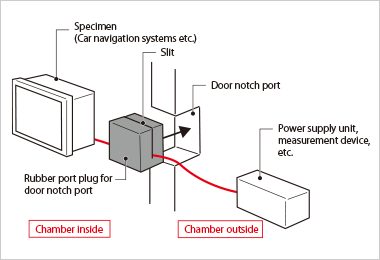

Door notch port

Easy access to specimen

Equipped with cable ports on both left & right sides as standard.
Door notch port is also available to put cables through the door (optional).

Specifications

	Temp. & humidity range	Temp. rate of change −45℃ ⇔ +155℃	Capacity	Model
Temperature & Humidity Control	−70 to +180℃ 10 to 98% rh	6K/min	680L	ARS-0680-5
			1100L	ARS-1100-5
			249L	ARSF-0250-10
		10K/min	398L	ARSF-0400-10
			784L	ARSF-0800-10
			1100L	ARS-1100-10
		15K/min	398L	ARSF-0400-15
			680L	ARS-0680-15
			784L	ARSF-0800-15
		18K/min	249L	ARSF-0250-15
Temperature Control	−70 to +180K	6K/min	680L	ARG-0680-5
			1100L	ARG-1100-5
			249L	ARGF-0250-10
		10K/min	398L	ARGF-0400-10
			784L	ARGF-0800-10
			1100L	ARG-1100-10
		15K/min	398L	ARGF-0400-15
			680L	ARG-0680-15
			784L	ARGF-0800-15
		18K/min	249L	ARGF-0250-15

Heat Load up to 9500W

Heat compensation at +20℃ is up to 9500 W
(Applicable models: ARS/ARG-0680-15, 1100-10).

Allowable heat load varies depending on model and operating conditions.
Please refer to our brochure for full details.

Energy-saving with Dual PID Control

Dual PID Control (Proportional-Integral-Differential: control that enables the segmentation of refrigeration capacity) mostly controls only the refrigerator at 0°C or lower, thereby saving energy.
