Espec Environmental Stress Chamber AR Series : Standard Type : 4K/min

Espec Temperature Cycle Type : Standard Type : 4K/min

Environmental Stress Chamber

Model:

AR series

Maker:

ESPEC CORP

Minimum temperature: -45°C/-75°C
Maximum temperature: +180°C

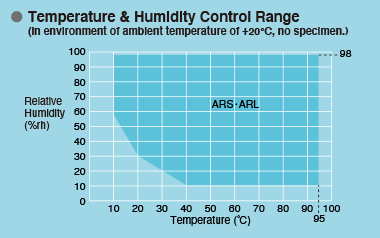

Humidity (ARL & ARS only): 10 to 98%rh

ARS-1100 performs 3K/min between -75 and +180℃ with 50kg of specimen.*
* 50kg of aluminum is including 12kg of shelf

* Continuous operation at or below +40°C is limited because of frost formation on the cooler and dehumidifier.

Attaching a temperature measurement sensor to the specimen enables the temperature of the specimen to be monitored and controlled.

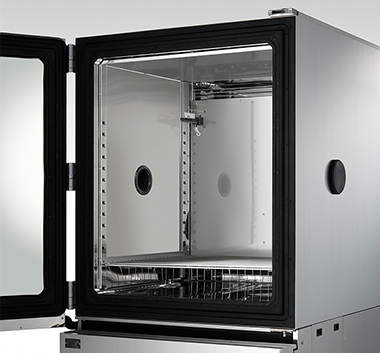

Cable ports on both sides

	Temp. & humidity range	Temp. rate of change	Capacity	Model
Temperature & Humidity Control	−75 to +180℃ 10 to 98%rh	Heat up: 6.0K/min Pull down: 4.9K/min −49.5℃ ⇔ +154.5℃	220L	ARS-0220
		Heat up: 5.0K/min Pull down: 4.0K/min −49.5℃ ⇔ +154.5℃	390L	ARS-0390
		Heat up: 6.0K/min Pull down: 4.2K/min −49.5℃ ⇔ +154.5℃	680L	ARS-0680
		Heat up: 4.7K/min Pull down: 4.1K/min −49.5℃ ⇔ +154.5℃	1100L	ARS-1100
	−45 to +180℃ 10 to 98%rh	Heat up: 6.3K/min Pull down: 4.8K/min −22.5℃ ⇔ +157.5℃	680L	ARL-0680
	−45 to +180℃ 10 to 98%rh	Heat up: 4.7K/min Pull down: 4.4K/min −22.5℃ ⇔ +157.5℃	1100L	ARL-1100
Temperature Control	−75 to +180℃	Heat up: 6.0K/min Pull down: 4.9K/min −49.5℃ ⇔ +154.5℃	220L	ARG-0220
		Heat up: 5.0K/min Pull down: 4.0K/min −49.5℃ ⇔ +154.5℃	390L	ARG-0390
		Heat up: 6.0K/min Pull down: 4.2K/min −49.5℃ ⇔ +154.5℃	680L	ARG-0680
		Heat up: 4.7K/min Pull down: 4.1K/min 49.5℃ ⇔ +154.5℃	1100L	ARG-1100
	−45 to +180℃	Heat up: 6.3K/min Pull down: 4.8K/min −22.5℃ ⇔ +157.5℃	680L	ARU-0680
	−45 to +180℃	Heat up: 4.7K/min Pull down: 4.4K/min −22.5℃ ⇔ +157.5℃	1100L	ARU-1100
